Collection: Bushes - Unflanged - Split - Stainless Steel and PTFE

Bushes -> Unflanged -> Split -> Stainless Steel and PTFE

There are 11 products in the sub-categories of Bushes - Unflanged - Split - Stainless Steel and PTFE. Browse the Bushes - Unflanged - Split - Stainless Steel and PTFE products table.

Category Details

A selection of Stainless Steel and PTFE Split Unflanged Bushes. Oil, acid, alkali and salt water resistant. Contains no lead. Particularly suited to food applications, flow meters and pumps in pharmaceutical applications, printing machines chemical engineering and seawater applications.

  • An expanded range may be available on special order. Please enquire.
  • Operating Temperature -200o to 280o Celsuis
  • PTFE with oilfibre 0.01 to around 0.03mm
  • Porous bronze 0.2 to around 0.3mm
  • Stainless steel backing 0.7 to around 2.3mm
  • 140 N/mm2 dynamic load rating. 250 N/mm2 static. 60 N/mm2 Oscillating. Speed Limit in oil 4.5 metres surface speed per second.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Unflanged - Split - Stainless Steel and PTFE category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
6.000
mm
- 0.000 / - 0.022
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm
+ 0.055 / - 0.000
(Equiv. 0.315 in.)
Length (s)
10.000
mm
+ 0.00 / - 0.30
(Equiv. 0.394 in.)

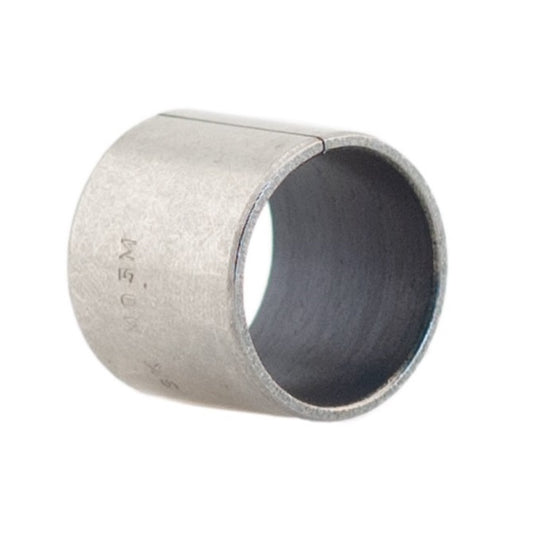

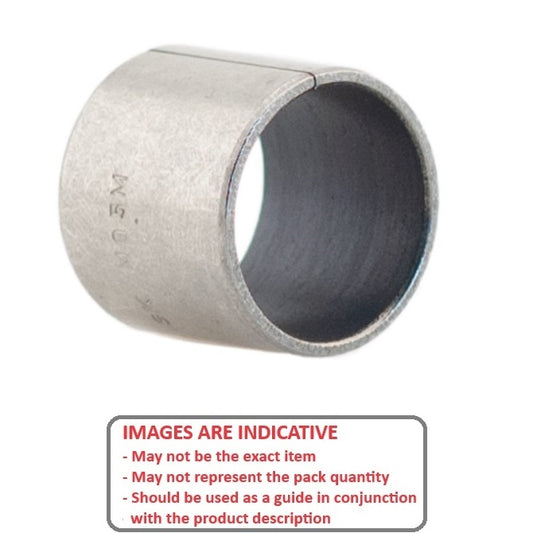

Unflanged Bushes - 6x8x10 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0060-0080-0100-S6 (10 Pcs)
Unflanged Bushes - 6x8x10 mm Split - Stainless Steel with PTFE Bush
48 units (480 pcs) Available Now | Item Discontinued - Up to 48 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $15.00 AUD
Regular price $28.50 AUD Sale price $15.00 AUD
Per 10
Quantity Required

48 units (480 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
6.000
mm
- 0.000 / - 0.022
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm
+ 0.055 / - 0.000
(Equiv. 0.315 in.)
Length (s)
10.000
mm
+ 0.00 / - 0.30
(Equiv. 0.394 in.)
Unflanged Bushes - 6x8x10 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0060-0080-0100-S6 (10 Pcs)
Unflanged Bushes - 6x8x10 mm Split - Stainless Steel with PTFE Bush
48 units (480 pcs) Available Now | Item Discontinued - Up to 48 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $15.00 AUD
Regular price $28.50 AUD Sale price $15.00 AUD
Per 10
Quantity Required

48 units (480 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
12.000
mm
- 0.000 / - 0.034
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm
+ 0.065 / - 0.000
(Equiv. 0.551 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 12x14x25 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0120-0140-0250-S6
Unflanged Bushes - 12x14x25 mm Split - Stainless Steel with PTFE Bush
430 Available Now | Item Discontinued - Up to 430 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $8.00 AUD
Regular price $15.20 AUD Sale price $8.00 AUD
Each
Quantity Required

430 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
12.000
mm
- 0.000 / - 0.034
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm
+ 0.065 / - 0.000
(Equiv. 0.551 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 12x14x25 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0120-0140-0250-S6
Unflanged Bushes - 12x14x25 mm Split - Stainless Steel with PTFE Bush
430 Available Now | Item Discontinued - Up to 430 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $8.00 AUD
Regular price $15.20 AUD Sale price $8.00 AUD
Each
Quantity Required

430 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
18.000
mm
- 0.000 / - 0.034
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm
+ 0.075 / - 0.000
(Equiv. 0.787 in.)
Length (s)
20.000
mm
+ 0.00 / - 0.30
(Equiv. 0.787 in.)
Unflanged Bushes - 18x20x20 mm
Part Number: BP0180-0200-0200-S6 (500 Pcs)
Unflanged Bushes - 18x20x20 mm Split
Out of Stock | Backorder Now | Orders can be expected around Tue, Oct 28, 2025
Regular price $1,696.14 AUD
Regular price $4,837.88 AUD Sale price $1,696.14 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
- 0.000 / - 0.034
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm
+ 0.075 / - 0.000
(Equiv. 0.787 in.)
Length (s)
20.000
mm
+ 0.00 / - 0.30
(Equiv. 0.787 in.)
Unflanged Bushes - 18x20x20 mm
Part Number: BP0180-0200-0200-S6 (500 Pcs)
Unflanged Bushes - 18x20x20 mm Split
Out of Stock | Backorder Now | Orders can be expected around Tue, Oct 28, 2025
Regular price $1,696.14 AUD
Regular price $4,837.88 AUD Sale price $1,696.14 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
- 0.000 / - 0.034
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm
+ 0.075 / - 0.000
(Equiv. 0.787 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 18x20x25 mm
Part Number: BP0180-0200-0250-S6 (500 Pcs)
Unflanged Bushes - 18x20x25 mm Split
Out of Stock | Backorder Now | Orders can be expected around Tue, Oct 28, 2025
Regular price $2,111.05 AUD
Regular price $6,021.28 AUD Sale price $2,111.05 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
- 0.000 / - 0.034
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm
+ 0.075 / - 0.000
(Equiv. 0.787 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 18x20x25 mm
Part Number: BP0180-0200-0250-S6 (500 Pcs)
Unflanged Bushes - 18x20x25 mm Split
Out of Stock | Backorder Now | Orders can be expected around Tue, Oct 28, 2025
Regular price $2,111.05 AUD
Regular price $6,021.28 AUD Sale price $2,111.05 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
- 0.000 / - 0.041
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm
+ 0.075 / - 0.000
(Equiv. 1.102 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 25x28x25 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0250-0280-0250-S6 (100 Pcs)
Unflanged Bushes - 25x28x25 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $870.05 AUD
Regular price $2,479.32 AUD Sale price $870.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
- 0.000 / - 0.041
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm
+ 0.075 / - 0.000
(Equiv. 1.102 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 25x28x25 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0250-0280-0250-S6 (100 Pcs)
Unflanged Bushes - 25x28x25 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $870.05 AUD
Regular price $2,479.32 AUD Sale price $870.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
- 0.000 / - 0.041
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm
+ 0.085 / - 0.000
(Equiv. 1.339 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 30x34x25 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0300-0340-0250-S6 (100 Pcs)
Unflanged Bushes - 30x34x25 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $927.50 AUD
Regular price $2,643.25 AUD Sale price $927.50 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
- 0.000 / - 0.041
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm
+ 0.085 / - 0.000
(Equiv. 1.339 in.)
Length (s)
25.000
mm
+ 0.00 / - 0.30
(Equiv. 0.984 in.)
Unflanged Bushes - 30x34x25 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0300-0340-0250-S6 (100 Pcs)
Unflanged Bushes - 30x34x25 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $927.50 AUD
Regular price $2,643.25 AUD Sale price $927.50 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
32.000
mm
- 0.000 / - 0.050
(Equiv. 1.26 in.)
Nominal Outside Diameter (D)
36.000
mm
+ 0.085 / - 0.000
(Equiv. 1.417 in.)
Length (s)
20.000
mm
+ 0.00 / - 0.40
(Equiv. 0.787 in.)
Unflanged Bushes - 32x36x20 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0320-0360-0200-S6 (100 Pcs)
Unflanged Bushes - 32x36x20 mm Split - Stainless Steel with PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $898.95 AUD
Regular price $2,561.77 AUD Sale price $898.95 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
32.000
mm
- 0.000 / - 0.050
(Equiv. 1.26 in.)
Nominal Outside Diameter (D)
36.000
mm
+ 0.085 / - 0.000
(Equiv. 1.417 in.)
Length (s)
20.000
mm
+ 0.00 / - 0.40
(Equiv. 0.787 in.)
Unflanged Bushes - 32x36x20 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0320-0360-0200-S6 (100 Pcs)
Unflanged Bushes - 32x36x20 mm Split - Stainless Steel with PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $898.95 AUD
Regular price $2,561.77 AUD Sale price $898.95 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
32.000
mm
- 0.000 / - 0.050
(Equiv. 1.26 in.)
Nominal Outside Diameter (D)
36.000
mm
+ 0.085 / - 0.000
(Equiv. 1.417 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 32x36x30 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0320-0360-0300-S6 (100 Pcs)
Unflanged Bushes - 32x36x30 mm Split - Stainless Steel with PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $1,014.23 AUD
Regular price $2,890.60 AUD Sale price $1,014.23 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
32.000
mm
- 0.000 / - 0.050
(Equiv. 1.26 in.)
Nominal Outside Diameter (D)
36.000
mm
+ 0.085 / - 0.000
(Equiv. 1.417 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 32x36x30 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0320-0360-0300-S6 (100 Pcs)
Unflanged Bushes - 32x36x30 mm Split - Stainless Steel with PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $1,014.23 AUD
Regular price $2,890.60 AUD Sale price $1,014.23 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
65.000
mm
- 0.000 / - 0.060
(Equiv. 2.559 in.)
Nominal Outside Diameter (D)
70.000
mm
+ 0.100 / - 0.000
(Equiv. 2.756 in.)
Length (s)
35.000
mm
+ 0.00 / - 0.40
(Equiv. 1.378 in.)
Unflanged Bushes - 65x70x35 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0650-0700-0350-S6
Unflanged Bushes - 65x70x35 mm Split - Stainless Steel with PTFE Bush
29 Available Now | Further orders can be expected around Fri, Oct 24, 2025
Regular price $56.05 AUD
Regular price Sale price $56.05 AUD
Each
Quantity Required

29 Available Now. Backorder if more than 29.
Nominal Inside Diameter (d)
65.000
mm
- 0.000 / - 0.060
(Equiv. 2.559 in.)
Nominal Outside Diameter (D)
70.000
mm
+ 0.100 / - 0.000
(Equiv. 2.756 in.)
Length (s)
35.000
mm
+ 0.00 / - 0.40
(Equiv. 1.378 in.)
Unflanged Bushes - 65x70x35 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0650-0700-0350-S6
Unflanged Bushes - 65x70x35 mm Split - Stainless Steel with PTFE Bush
29 Available Now | Further orders can be expected around Fri, Oct 24, 2025
Regular price $56.05 AUD
Regular price Sale price $56.05 AUD
Each
Quantity Required

29 Available Now. Backorder if more than 29.
Nominal Inside Diameter (d)
65.000
mm
- 0.000 / - 0.060
(Equiv. 2.559 in.)
Nominal Outside Diameter (D)
70.000
mm
+ 0.100 / - 0.000
(Equiv. 2.756 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 65x70x30 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0650-0700-0300-S6 (100 Pcs)
Unflanged Bushes - 65x70x30 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $1,371.05 AUD
Regular price $3,908.62 AUD Sale price $1,371.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
65.000
mm
- 0.000 / - 0.060
(Equiv. 2.559 in.)
Nominal Outside Diameter (D)
70.000
mm
+ 0.100 / - 0.000
(Equiv. 2.756 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 65x70x30 mm - Stainless Steel and PTFE
Material: Stainless Steel and PTFE
Part Number: BP0650-0700-0300-S6 (100 Pcs)
Unflanged Bushes - 65x70x30 mm Split - Stainless Steel and PTFE Bush
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
Regular price $1,371.05 AUD
Regular price $3,908.62 AUD Sale price $1,371.05 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
75.000
mm
- 0.000 / - 0.060
(Equiv. 2.953 in.)
Nominal Outside Diameter (D)
80.000
mm
+ 0.100 / - 0.000
(Equiv. 3.15 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 75x80x30 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0750-0800-0300-S6
Unflanged Bushes - 75x80x30 mm Split - Stainless Steel with PTFE Bush
20 Available Now | Further orders can be expected around Fri, Oct 24, 2025
Regular price $17.14 AUD
Regular price $58.58 AUD Sale price $17.14 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Nominal Inside Diameter (d)
75.000
mm
- 0.000 / - 0.060
(Equiv. 2.953 in.)
Nominal Outside Diameter (D)
80.000
mm
+ 0.100 / - 0.000
(Equiv. 3.15 in.)
Length (s)
30.000
mm
+ 0.00 / - 0.40
(Equiv. 1.181 in.)
Unflanged Bushes - 75x80x30 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE
Part Number: BP0750-0800-0300-S6
Unflanged Bushes - 75x80x30 mm Split - Stainless Steel with PTFE Bush
20 Available Now | Further orders can be expected around Fri, Oct 24, 2025
Regular price $17.14 AUD
Regular price $58.58 AUD Sale price $17.14 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
