Bushes - Unflanged - Plastic - Iglidur M250

Bushes -> Unflanged -> Plastic -> Iglidur M250

There are 248 products in the sub-categories of Bushes - Unflanged - Plastic - Iglidur M250. Scroll down or follow the link to Bushes - Unflanged - Plastic - Iglidur M250 in the products table to see all these items combined into a handy table with filters.

Category Details

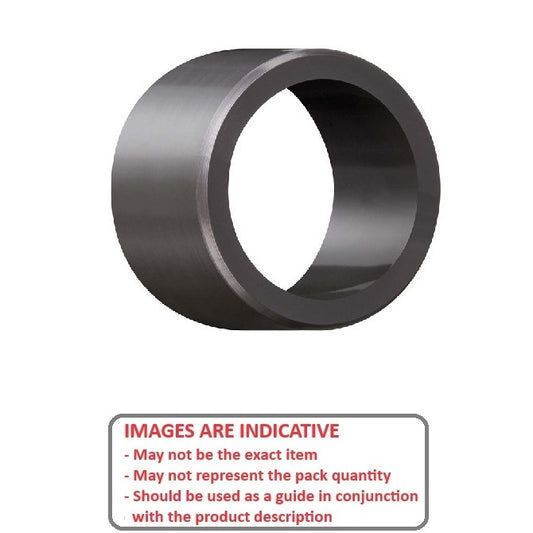

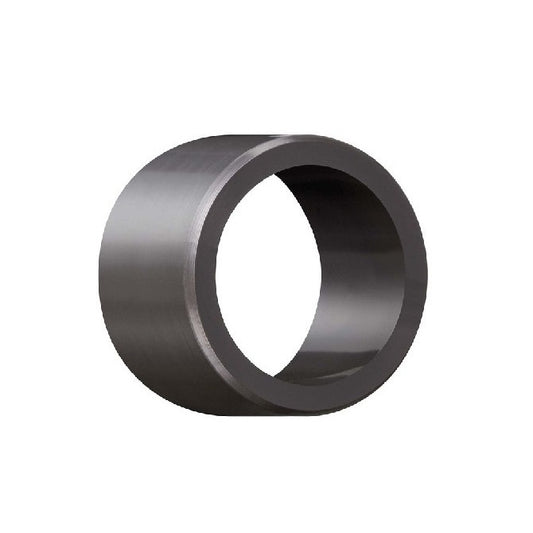

A selection of Iglidur M250 Plastic Unflanged Bushes. For impact resistance vibration dampening unclean environments.

  • An expanded range may be available on special order. Please enquire.
  • Specific Gravity 1.14 g/cm3.
  • Operating Temp 170 C short term / 80 C long term.
  • Tensile Strength at 20 Deg C = 112 Mpa.
  • Hardness 79 Shore D (DIN53505).
  • Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Unflanged - Plastic - Iglidur M250 category on the Small Parts & Bearings online store.
