Bushes - Unflanged - Plastic - Iglidur A290

Bushes -> Unflanged -> Plastic -> Iglidur A290

There are 13 products in the sub-categories of Bushes - Unflanged - Plastic - Iglidur A290. Browse the Bushes - Unflanged - Plastic - Iglidur A290 products table.

Category Details

A selection of Iglidur A290 Plastic Unflanged Bushes. Food grade for low speeds and direct contact with food and pharmaceuticals.

  • An expanded range may be available on special order. Please enquire.
  • Specific Gravity 1.39 g/cm3.
  • Operating Temp 180 C short term / 140 C long term.
  • Tensile Strength at 20 Deg C = 250 Mpa.
  • Hardness 88 Shore D (DIN53505).
  • Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Unflanged - Plastic - Iglidur A290 category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
3.000
mm
+ 0.020 / + 0.080
(Equiv. 0.118 in.)
Nominal Outside Diameter (D)
4.500
mm

(Equiv. 0.177 in.)
Length (s)
3.000
mm
+ 0.000 / - 0.140
(Equiv. 0.118 in.)

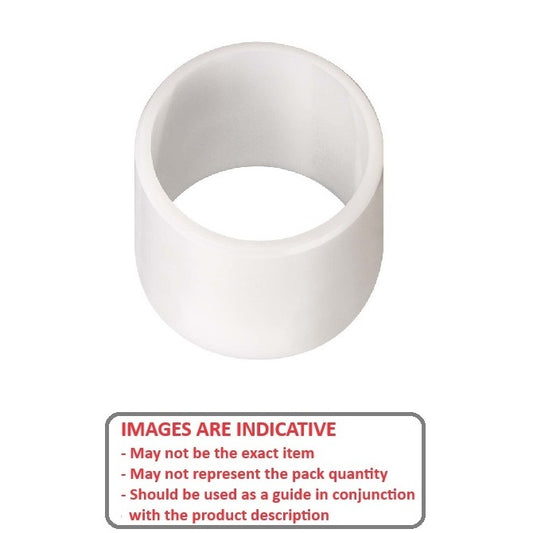

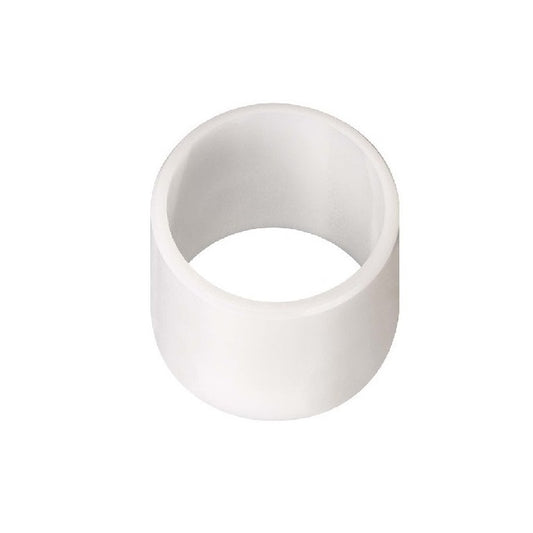

Unflanged Bushes - 3x4.5x3 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0030-0045-0030-PA29 (10 Pcs)
Unflanged Bushes - 3x4.5x3 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$75.32 AUD
$75.32 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
3.000
mm
+ 0.020 / + 0.080
(Equiv. 0.118 in.)
Nominal Outside Diameter (D)
4.500
mm

(Equiv. 0.177 in.)
Length (s)
3.000
mm
+ 0.000 / - 0.140
(Equiv. 0.118 in.)
Unflanged Bushes - 3x4.5x3 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0030-0045-0030-PA29 (10 Pcs)
Unflanged Bushes - 3x4.5x3 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$75.32 AUD
$75.32 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
4.000
mm
+ 0.030 / + 0.105
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
5.500
mm

(Equiv. 0.217 in.)
Length (s)
4.000
mm
+ 0.000 / - 0.180
(Equiv. 0.157 in.)
Unflanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0040-0055-0040-PA29 (10 Pcs)
Unflanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$64.68 AUD
$77.62 AUD $64.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
4.000
mm
+ 0.030 / + 0.105
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
5.500
mm

(Equiv. 0.217 in.)
Length (s)
4.000
mm
+ 0.000 / - 0.180
(Equiv. 0.157 in.)
Unflanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0040-0055-0040-PA29 (10 Pcs)
Unflanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$64.68 AUD
$77.62 AUD $64.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
5.000
mm
+ 0.030 / + 0.105
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
7.000
mm

(Equiv. 0.276 in.)
Length (s)
5.000
mm
+ 0.000 / - 0.180
(Equiv. 0.197 in.)
Unflanged Bushes - 5x7x5 mm Plastic - Iglidur A200
Material: Iglidur A200
Part Number: BP0050-0070-0050-PA29 (10 Pcs)
Unflanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$66.77 AUD
$80.13 AUD $66.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
5.000
mm
+ 0.030 / + 0.105
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
7.000
mm

(Equiv. 0.276 in.)
Length (s)
5.000
mm
+ 0.000 / - 0.180
(Equiv. 0.197 in.)
Unflanged Bushes - 5x7x5 mm Plastic - Iglidur A200
Material: Iglidur A200
Part Number: BP0050-0070-0050-PA29 (10 Pcs)
Unflanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$66.77 AUD
$80.13 AUD $66.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
6.000
mm
+ 0.030 / + 0.105
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm

(Equiv. 0.315 in.)
Length (s)
6.000
mm
+ 0.000 / - 0.180
(Equiv. 0.236 in.)
Unflanged Bushes - 6x8x6 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0060-0080-0060-PA29 (10 Pcs)
Unflanged Bushes - 6x8x6 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$69.50 AUD
$83.40 AUD $69.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
6.000
mm
+ 0.030 / + 0.105
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm

(Equiv. 0.315 in.)
Length (s)
6.000
mm
+ 0.000 / - 0.180
(Equiv. 0.236 in.)
Unflanged Bushes - 6x8x6 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0060-0080-0060-PA29 (10 Pcs)
Unflanged Bushes - 6x8x6 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$69.50 AUD
$83.40 AUD $69.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
8.000
mm
+ 0.000 / - 0.220
(Equiv. 0.315 in.)
Unflanged Bushes - 8x10x8 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0080-0100-0080-PA29 (10 Pcs)
Unflanged Bushes - 8x10x8 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$80.50 AUD
$96.60 AUD $80.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
8.000
mm
+ 0.000 / - 0.220
(Equiv. 0.315 in.)
Unflanged Bushes - 8x10x8 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0080-0100-0080-PA29 (10 Pcs)
Unflanged Bushes - 8x10x8 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$80.50 AUD
$96.60 AUD $80.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
10.000
mm
+ 0.040 / + 0.130
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
12.000
mm

(Equiv. 0.472 in.)
Length (s)
10.000
mm
+ 0.000 / - 0.220
(Equiv. 0.394 in.)
Unflanged Bushes - 10x12x10 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0100-0120-0100-PA29 (10 Pcs)
Unflanged Bushes - 10x12x10 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$77.41 AUD
$92.89 AUD $77.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
10.000
mm
+ 0.040 / + 0.130
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
12.000
mm

(Equiv. 0.472 in.)
Length (s)
10.000
mm
+ 0.000 / - 0.220
(Equiv. 0.394 in.)
Unflanged Bushes - 10x12x10 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0100-0120-0100-PA29 (10 Pcs)
Unflanged Bushes - 10x12x10 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$77.41 AUD
$92.89 AUD $77.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
12.000
mm
+ 0.050 / + 0.160
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm

(Equiv. 0.551 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)
Unflanged Bushes - 12x14x15 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0120-0140-0150-PA29 (10 Pcs)
Unflanged Bushes - 12x14x15 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$88.77 AUD
$106.53 AUD $88.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
12.000
mm
+ 0.050 / + 0.160
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm

(Equiv. 0.551 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)
Unflanged Bushes - 12x14x15 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0120-0140-0150-PA29 (10 Pcs)
Unflanged Bushes - 12x14x15 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$88.77 AUD
$106.53 AUD $88.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
+ 0.050 / + 0.160
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm

(Equiv. 0.787 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)
Unflanged Bushes - 18x20x15 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0180-0200-0150-PA29 (10 Pcs)
Unflanged Bushes - 18x20x15 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
+ 0.050 / + 0.160
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm

(Equiv. 0.787 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)
Unflanged Bushes - 18x20x15 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0180-0200-0150-PA29 (10 Pcs)
Unflanged Bushes - 18x20x15 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
20.000
mm
+ 0.065 / + 0.195
(Equiv. 0.787 in.)
Nominal Outside Diameter (D)
23.000
mm

(Equiv. 0.906 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(Equiv. 0.787 in.)
Unflanged Bushes - 20x23x20 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0200-0230-0200-PA29 (10 Pcs)
Unflanged Bushes - 20x23x20 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
20.000
mm
+ 0.065 / + 0.195
(Equiv. 0.787 in.)
Nominal Outside Diameter (D)
23.000
mm

(Equiv. 0.906 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(Equiv. 0.787 in.)
Unflanged Bushes - 20x23x20 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0200-0230-0200-PA29 (10 Pcs)
Unflanged Bushes - 20x23x20 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
+ 0.065 / + 0.195
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm

(Equiv. 1.102 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(Equiv. 0.787 in.)
Unflanged Bushes - 25x28x20 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0250-0280-0200-PA29 (10 Pcs)
Unflanged Bushes - 25x28x20 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$121.41 AUD
$145.69 AUD $121.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
+ 0.065 / + 0.195
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm

(Equiv. 1.102 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(Equiv. 0.787 in.)
Unflanged Bushes - 25x28x20 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0250-0280-0200-PA29 (10 Pcs)
Unflanged Bushes - 25x28x20 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$121.41 AUD
$145.69 AUD $121.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
+ 0.065 / + 0.195
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm

(Equiv. 1.339 in.)
Length (s)
30.000
mm
+ 0.000 / - 0.330
(Equiv. 1.181 in.)
Unflanged Bushes - 30x34x30 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0300-0340-0300-PA29 (10 Pcs)
Unflanged Bushes - 30x34x30 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$133.59 AUD
$160.31 AUD $133.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
+ 0.065 / + 0.195
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm

(Equiv. 1.339 in.)
Length (s)
30.000
mm
+ 0.000 / - 0.330
(Equiv. 1.181 in.)
Unflanged Bushes - 30x34x30 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0300-0340-0300-PA29 (10 Pcs)
Unflanged Bushes - 30x34x30 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$133.59 AUD
$160.31 AUD $133.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
40.000
mm
+ 0.080 / + 0.240
(Equiv. 1.575 in.)
Nominal Outside Diameter (D)
44.000
mm

(Equiv. 1.732 in.)
Length (s)
50.000
mm
+ 0.000 / - 0.460
(Equiv. 1.969 in.)
Unflanged Bushes - 40x44x50 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0400-0440-0500-PA29 (10 Pcs)
Unflanged Bushes - 40x44x50 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$232.86 AUD
$279.44 AUD $232.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
40.000
mm
+ 0.080 / + 0.240
(Equiv. 1.575 in.)
Nominal Outside Diameter (D)
44.000
mm

(Equiv. 1.732 in.)
Length (s)
50.000
mm
+ 0.000 / - 0.460
(Equiv. 1.969 in.)
Unflanged Bushes - 40x44x50 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0400-0440-0500-PA29 (10 Pcs)
Unflanged Bushes - 40x44x50 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$232.86 AUD
$279.44 AUD $232.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
50.000
mm
+ 0.080 / + 0.240
(Equiv. 1.969 in.)
Nominal Outside Diameter (D)
55.000
mm

(Equiv. 2.165 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Unflanged Bushes - 50x55x40 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0500-0550-0400-PA29 (10 Pcs)
Unflanged Bushes - 50x55x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$324.05 AUD
$388.85 AUD $324.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
50.000
mm
+ 0.080 / + 0.240
(Equiv. 1.969 in.)
Nominal Outside Diameter (D)
55.000
mm

(Equiv. 2.165 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Unflanged Bushes - 50x55x40 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BP0500-0550-0400-PA29 (10 Pcs)
Unflanged Bushes - 50x55x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$324.05 AUD
$388.85 AUD $324.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
