Collection: Bushes - Flanged - Plastic - Iglidur P

Bushes -> Flanged -> Plastic -> Iglidur P

There are 23 products in the sub-categories of Bushes - Flanged - Plastic - Iglidur P. Scroll down or follow the link to Bushes - Flanged - Plastic - Iglidur P in the products table to see all these items combined into a handy table with filters.

Category Details

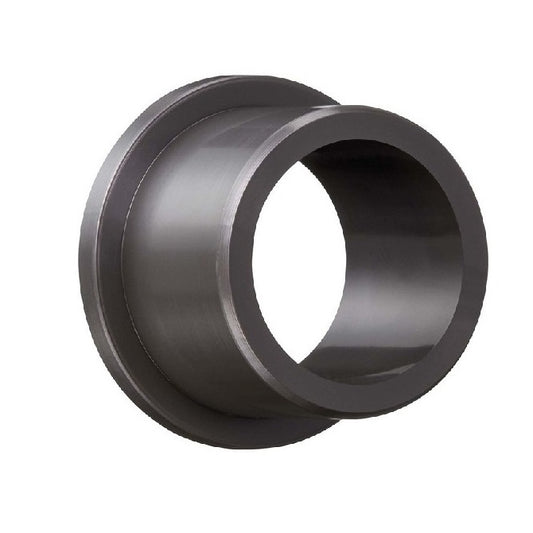

A selection of Iglidur P Plastic Flanged Bushes. Low water absorption. Low wear. Hgh load.

An expanded range may be available on special order. Please enquire.
Specific Gravity 1.47 g/cm3.
Operating Temp 200 C short term / 130 C long term.
Tensile Strength at 20 Deg C = 120 Mpa.
Hardness 75 Shore D (DIN53505).
Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bushes - Flanged - Plastic - Iglidur P category on the Small Parts & Bearings online store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Flange Thickness (s1)
Nominal Inside Diameter (d) 4.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 5.500 mm (Equiv. 0.217 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 9.50 mm	Flange Thickness (s1) 0.75 mm
Material: Iglidur P
Part Number: BF0040-0055-0040-PP (10 Pcs) Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $66.77 AUD Regular price ~~$80.13 AUD~~ Sale price $66.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Indicative Image
Nominal Inside Diameter (d) 4.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 5.500 mm (Equiv. 0.217 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 9.50 mm
Material: Iglidur P Flange Thickness (s1): 0.75 mm
Part Number: BF0040-0055-0040-PP (10 Pcs) Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $66.77 AUD Regular price ~~$80.13 AUD~~ Sale price $66.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0040-0055-0040-PP (10 Pcs) --- Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur P Bush Sale BF0040-0055-0040-PP (10 Pcs) --- Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur P Bush Regular price $66.77 AUD Regular price ~~$80.13 AUD~~ Sale price $66.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm (Equiv. 0.276 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 11.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0050-0070-0050-PP (10 Pcs) Flanged Bushes - 5x7x5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm (Equiv. 0.276 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 11.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0050-0070-0050-PP (10 Pcs) Flanged Bushes - 5x7x5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0050-0070-0050-PP (10 Pcs) --- Flanged Bushes - 5x7x5 mm Plastic - Iglidur P Bush Sale BF0050-0070-0050-PP (10 Pcs) --- Flanged Bushes - 5x7x5 mm Plastic - Iglidur P Bush Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0060-0080-0040-PP (10 Pcs) Flanged Bushes - 6x8x4 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.068} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 12.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0060-0080-0040-PP (10 Pcs) Flanged Bushes - 6x8x4 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0080-0040-PP (10 Pcs) --- Flanged Bushes - 6x8x4 mm Plastic - Iglidur P Bush Sale BF0060-0080-0040-PP (10 Pcs) --- Flanged Bushes - 6x8x4 mm Plastic - Iglidur P Bush Regular price $73.59 AUD Regular price ~~$88.31 AUD~~ Sale price $73.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 15.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0080-0100-0100-PP (10 Pcs) Flanged Bushes - 8x10x10 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.32 AUD Regular price ~~$87.98 AUD~~ Sale price $73.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 15.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0080-0100-0100-PP (10 Pcs) Flanged Bushes - 8x10x10 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $73.32 AUD Regular price ~~$87.98 AUD~~ Sale price $73.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0080-0100-0100-PP (10 Pcs) --- Flanged Bushes - 8x10x10 mm Plastic - Iglidur P Bush Sale BF0080-0100-0100-PP (10 Pcs) --- Flanged Bushes - 8x10x10 mm Plastic - Iglidur P Bush Regular price $73.32 AUD Regular price ~~$87.98 AUD~~ Sale price $73.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 15.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0080-0100-0150-PP (10 Pcs) Flanged Bushes - 8x10x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 15.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0080-0100-0150-PP (10 Pcs) Flanged Bushes - 8x10x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0080-0100-0150-PP (10 Pcs) --- Flanged Bushes - 8x10x15 mm Plastic - Iglidur P Bush Sale BF0080-0100-0150-PP (10 Pcs) --- Flanged Bushes - 8x10x15 mm Plastic - Iglidur P Bush Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 18.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0100-0120-0170-PP (10 Pcs) Flanged Bushes - 10x12x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.083} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 18.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0100-0120-0170-PP (10 Pcs) Flanged Bushes - 10x12x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0100-0120-0170-PP (10 Pcs) --- Flanged Bushes - 10x12x17 mm Plastic - Iglidur P Bush Sale BF0100-0120-0170-PP (10 Pcs) --- Flanged Bushes - 10x12x17 mm Plastic - Iglidur P Bush Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 12.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 14.000 mm (Equiv. 0.551 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0120-0140-0100-PP (10 Pcs) Flanged Bushes - 12x14x10 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 12.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 14.000 mm (Equiv. 0.551 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 20.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0120-0140-0100-PP (10 Pcs) Flanged Bushes - 12x14x10 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0120-0140-0100-PP (10 Pcs) --- Flanged Bushes - 12x14x10 mm Plastic - Iglidur P Bush Sale BF0120-0140-0100-PP (10 Pcs) --- Flanged Bushes - 12x14x10 mm Plastic - Iglidur P Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 12.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 14.000 mm (Equiv. 0.551 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0120-0140-0150-PP (10 Pcs) Flanged Bushes - 12x14x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 12.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 14.000 mm (Equiv. 0.551 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 20.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0120-0140-0150-PP (10 Pcs) Flanged Bushes - 12x14x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0120-0140-0150-PP (10 Pcs) --- Flanged Bushes - 12x14x15 mm Plastic - Iglidur P Bush Sale BF0120-0140-0150-PP (10 Pcs) --- Flanged Bushes - 12x14x15 mm Plastic - Iglidur P Bush Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 14.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 16.000 mm (Equiv. 0.63 in.)	Length (s) 12.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.472 in.)	Flange OD (D1) 22.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0140-0160-0120-PP (10 Pcs) Flanged Bushes - 14x16x12 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 14.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 16.000 mm (Equiv. 0.63 in.)	Length (s) 12.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.472 in.)	Flange OD (D1) 22.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0140-0160-0120-PP (10 Pcs) Flanged Bushes - 14x16x12 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0140-0160-0120-PP (10 Pcs) --- Flanged Bushes - 14x16x12 mm Plastic - Iglidur P Bush Sale BF0140-0160-0120-PP (10 Pcs) --- Flanged Bushes - 14x16x12 mm Plastic - Iglidur P Bush Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 15.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 32.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.26 in.)	Flange OD (D1) 24.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur P
Part Number: BF0150-0180-0320-PP (10 Pcs) Flanged Bushes - 15x18x32 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $148.59 AUD Regular price ~~$178.31 AUD~~ Sale price $148.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 15.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 32.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.26 in.)	Flange OD (D1) 24.00 mm
Material: Iglidur P Flange Thickness (s1): 1.50 mm
Part Number: BF0150-0180-0320-PP (10 Pcs) Flanged Bushes - 15x18x32 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $148.59 AUD Regular price ~~$178.31 AUD~~ Sale price $148.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0150-0180-0320-PP (10 Pcs) --- Flanged Bushes - 15x18x32 mm Plastic - Iglidur P Bush Sale BF0150-0180-0320-PP (10 Pcs) --- Flanged Bushes - 15x18x32 mm Plastic - Iglidur P Bush Regular price $148.59 AUD Regular price ~~$178.31 AUD~~ Sale price $148.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 16.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 12.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.472 in.)	Flange OD (D1) 24.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0160-0180-0120-PP (10 Pcs) Flanged Bushes - 16x18x12 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 16.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 12.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.472 in.)	Flange OD (D1) 24.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0160-0180-0120-PP (10 Pcs) Flanged Bushes - 16x18x12 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0160-0180-0120-PP (10 Pcs) --- Flanged Bushes - 16x18x12 mm Plastic - Iglidur P Bush Sale BF0160-0180-0120-PP (10 Pcs) --- Flanged Bushes - 16x18x12 mm Plastic - Iglidur P Bush Regular price $86.05 AUD Regular price ~~$103.25 AUD~~ Sale price $86.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 16.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 24.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0160-0180-0170-PP (10 Pcs) Flanged Bushes - 16x18x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $90.14 AUD Regular price ~~$108.16 AUD~~ Sale price $90.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 16.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 18.000 mm (Equiv. 0.709 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 24.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0160-0180-0170-PP (10 Pcs) Flanged Bushes - 16x18x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $90.14 AUD Regular price ~~$108.16 AUD~~ Sale price $90.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0160-0180-0170-PP (10 Pcs) --- Flanged Bushes - 16x18x17 mm Plastic - Iglidur P Bush Sale BF0160-0180-0170-PP (10 Pcs) --- Flanged Bushes - 16x18x17 mm Plastic - Iglidur P Bush Regular price $90.14 AUD Regular price ~~$108.16 AUD~~ Sale price $90.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 17.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.669 in.)	Nominal Outside Diameter (D) 19.000 mm (Equiv. 0.748 in.)	Length (s) 25.000 mm _{+ 0.000 / - 0.330} (Equiv. 0.984 in.)	Flange OD (D1) 25.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0170-0190-0250-PP (10 Pcs) Flanged Bushes - 17x19x25 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $94.14 AUD Regular price ~~$112.96 AUD~~ Sale price $94.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 17.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.669 in.)	Nominal Outside Diameter (D) 19.000 mm (Equiv. 0.748 in.)	Length (s) 25.000 mm _{+ 0.000 / - 0.330} (Equiv. 0.984 in.)	Flange OD (D1) 25.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0170-0190-0250-PP (10 Pcs) Flanged Bushes - 17x19x25 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $94.14 AUD Regular price ~~$112.96 AUD~~ Sale price $94.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0170-0190-0250-PP (10 Pcs) --- Flanged Bushes - 17x19x25 mm Plastic - Iglidur P Bush Sale BF0170-0190-0250-PP (10 Pcs) --- Flanged Bushes - 17x19x25 mm Plastic - Iglidur P Bush Regular price $94.14 AUD Regular price ~~$112.96 AUD~~ Sale price $94.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 18.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 20.000 mm (Equiv. 0.787 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 26.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur P
Part Number: BF0180-0200-0170-PP (10 Pcs) Flanged Bushes - 18x20x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 18.000 mm _{+ 0.032 / + 0.102} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 20.000 mm (Equiv. 0.787 in.)	Length (s) 17.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.669 in.)	Flange OD (D1) 26.00 mm
Material: Iglidur P Flange Thickness (s1): 1.00 mm
Part Number: BF0180-0200-0170-PP (10 Pcs) Flanged Bushes - 18x20x17 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0180-0200-0170-PP (10 Pcs) --- Flanged Bushes - 18x20x17 mm Plastic - Iglidur P Bush Sale BF0180-0200-0170-PP (10 Pcs) --- Flanged Bushes - 18x20x17 mm Plastic - Iglidur P Bush Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 28.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur P
Part Number: BF0200-0230-0150-PP (10 Pcs) Flanged Bushes - 20x23x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 15.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.591 in.)	Flange OD (D1) 28.00 mm
Material: Iglidur P Flange Thickness (s1): 1.50 mm
Part Number: BF0200-0230-0150-PP (10 Pcs) Flanged Bushes - 20x23x15 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0200-0230-0150-PP (10 Pcs) --- Flanged Bushes - 20x23x15 mm Plastic - Iglidur P Bush Sale BF0200-0230-0150-PP (10 Pcs) --- Flanged Bushes - 20x23x15 mm Plastic - Iglidur P Bush Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 16.500 mm _{+ 0.000 / - 0.270} (Equiv. 0.65 in.)	Flange OD (D1) 30.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur P
Part Number: BF0200-0230-0165-PP (10 Pcs) Flanged Bushes - 20x23x16.5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $105.05 AUD Regular price ~~$126.05 AUD~~ Sale price $105.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 16.500 mm _{+ 0.000 / - 0.270} (Equiv. 0.65 in.)	Flange OD (D1) 30.00 mm
Material: Iglidur P Flange Thickness (s1): 1.50 mm
Part Number: BF0200-0230-0165-PP (10 Pcs) Flanged Bushes - 20x23x16.5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $105.05 AUD Regular price ~~$126.05 AUD~~ Sale price $105.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0200-0230-0165-PP (10 Pcs) --- Flanged Bushes - 20x23x16.5 mm Plastic - Iglidur P Bush Sale BF0200-0230-0165-PP (10 Pcs) --- Flanged Bushes - 20x23x16.5 mm Plastic - Iglidur P Bush Regular price $105.05 AUD Regular price ~~$126.05 AUD~~ Sale price $105.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 30.000 mm _{+ 0.000 / - 0.330} (Equiv. 1.181 in.)	Flange OD (D1) 30.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur P
Part Number: BF0200-0230-0300-PP (10 Pcs) Flanged Bushes - 20x23x30 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 20.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 23.000 mm (Equiv. 0.906 in.)	Length (s) 30.000 mm _{+ 0.000 / - 0.330} (Equiv. 1.181 in.)	Flange OD (D1) 30.00 mm
Material: Iglidur P Flange Thickness (s1): 1.50 mm
Part Number: BF0200-0230-0300-PP (10 Pcs) Flanged Bushes - 20x23x30 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0200-0230-0300-PP (10 Pcs) --- Flanged Bushes - 20x23x30 mm Plastic - Iglidur P Bush Sale BF0200-0230-0300-PP (10 Pcs) --- Flanged Bushes - 20x23x30 mm Plastic - Iglidur P Bush Regular price $120.05 AUD Regular price ~~$144.05 AUD~~ Sale price $120.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 25.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.984 in.)	Nominal Outside Diameter (D) 28.000 mm (Equiv. 1.102 in.)	Length (s) 21.500 mm _{+ 0.000 / - 0.330} (Equiv. 0.846 in.)	Flange OD (D1) 35.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur P
Part Number: BF0250-0280-0215-PP (10 Pcs) Flanged Bushes - 25x28x21.5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 25.000 mm _{+ 0.040 / + 0.124} (Equiv. 0.984 in.)	Nominal Outside Diameter (D) 28.000 mm (Equiv. 1.102 in.)	Length (s) 21.500 mm _{+ 0.000 / - 0.330} (Equiv. 0.846 in.)	Flange OD (D1) 35.00 mm
Material: Iglidur P Flange Thickness (s1): 1.50 mm
Part Number: BF0250-0280-0215-PP (10 Pcs) Flanged Bushes - 25x28x21.5 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0250-0280-0215-PP (10 Pcs) --- Flanged Bushes - 25x28x21.5 mm Plastic - Iglidur P Bush Sale BF0250-0280-0215-PP (10 Pcs) --- Flanged Bushes - 25x28x21.5 mm Plastic - Iglidur P Bush Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 30.000 mm _{+ 0.040 / + 0.124} (Equiv. 1.181 in.)	Nominal Outside Diameter (D) 32.000 mm (Equiv. 1.26 in.)	Length (s) 16.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.63 in.)	Flange OD (D1) 42.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur P
Part Number: BF0300-0320-0160-PP (10 Pcs) Flanged Bushes - 30x32x16 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $136.32 AUD Regular price ~~$163.58 AUD~~ Sale price $136.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 30.000 mm _{+ 0.040 / + 0.124} (Equiv. 1.181 in.)	Nominal Outside Diameter (D) 32.000 mm (Equiv. 1.26 in.)	Length (s) 16.000 mm _{+ 0.000 / - 0.270} (Equiv. 0.63 in.)	Flange OD (D1) 42.00 mm
Material: Iglidur P Flange Thickness (s1): 2.00 mm
Part Number: BF0300-0320-0160-PP (10 Pcs) Flanged Bushes - 30x32x16 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $136.32 AUD Regular price ~~$163.58 AUD~~ Sale price $136.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0300-0320-0160-PP (10 Pcs) --- Flanged Bushes - 30x32x16 mm Plastic - Iglidur P Bush Sale BF0300-0320-0160-PP (10 Pcs) --- Flanged Bushes - 30x32x16 mm Plastic - Iglidur P Bush Regular price $136.32 AUD Regular price ~~$163.58 AUD~~ Sale price $136.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 35.000 mm _{+ 0.050 / + 0.150} (Equiv. 1.378 in.)	Nominal Outside Diameter (D) 39.000 mm (Equiv. 1.535 in.)	Length (s) 26.000 mm _{+ 0.000 / - 0.330} (Equiv. 1.024 in.)	Flange OD (D1) 47.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur P
Part Number: BF0350-0390-0260-PP (10 Pcs) Flanged Bushes - 35x39x26 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $164.86 AUD Regular price ~~$197.84 AUD~~ Sale price $164.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 35.000 mm _{+ 0.050 / + 0.150} (Equiv. 1.378 in.)	Nominal Outside Diameter (D) 39.000 mm (Equiv. 1.535 in.)	Length (s) 26.000 mm _{+ 0.000 / - 0.330} (Equiv. 1.024 in.)	Flange OD (D1) 47.00 mm
Material: Iglidur P Flange Thickness (s1): 2.00 mm
Part Number: BF0350-0390-0260-PP (10 Pcs) Flanged Bushes - 35x39x26 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $164.86 AUD Regular price ~~$197.84 AUD~~ Sale price $164.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0350-0390-0260-PP (10 Pcs) --- Flanged Bushes - 35x39x26 mm Plastic - Iglidur P Bush Sale BF0350-0390-0260-PP (10 Pcs) --- Flanged Bushes - 35x39x26 mm Plastic - Iglidur P Bush Regular price $164.86 AUD Regular price ~~$197.84 AUD~~ Sale price $164.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 40.000 mm _{+ 0.050 / + 0.150} (Equiv. 1.575 in.)	Nominal Outside Diameter (D) 44.000 mm (Equiv. 1.732 in.)	Length (s) 40.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.575 in.)	Flange OD (D1) 52.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur P
Part Number: BF0400-0440-0400-PP (10 Pcs) Flanged Bushes - 40x44x40 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $254.68 AUD Regular price ~~$305.62 AUD~~ Sale price $254.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 40.000 mm _{+ 0.050 / + 0.150} (Equiv. 1.575 in.)	Nominal Outside Diameter (D) 44.000 mm (Equiv. 1.732 in.)	Length (s) 40.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.575 in.)	Flange OD (D1) 52.00 mm
Material: Iglidur P Flange Thickness (s1): 2.00 mm
Part Number: BF0400-0440-0400-PP (10 Pcs) Flanged Bushes - 40x44x40 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $254.68 AUD Regular price ~~$305.62 AUD~~ Sale price $254.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0400-0440-0400-PP (10 Pcs) --- Flanged Bushes - 40x44x40 mm Plastic - Iglidur P Bush Sale BF0400-0440-0400-PP (10 Pcs) --- Flanged Bushes - 40x44x40 mm Plastic - Iglidur P Bush Regular price $254.68 AUD Regular price ~~$305.62 AUD~~ Sale price $254.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 60.000 mm _{+ 0.050 / + 0.150} (Equiv. 2.362 in.)	Nominal Outside Diameter (D) 65.000 mm (Equiv. 2.559 in.)	Length (s) 50.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.969 in.)	Flange OD (D1) 73.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur P
Part Number: BF0600-0650-0500-PP (10 Pcs) Flanged Bushes - 60x65x50 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $412.41 AUD Regular price ~~$494.89 AUD~~ Sale price $412.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 60.000 mm _{+ 0.050 / + 0.150} (Equiv. 2.362 in.)	Nominal Outside Diameter (D) 65.000 mm (Equiv. 2.559 in.)	Length (s) 50.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.969 in.)	Flange OD (D1) 73.00 mm
Material: Iglidur P Flange Thickness (s1): 2.00 mm
Part Number: BF0600-0650-0500-PP (10 Pcs) Flanged Bushes - 60x65x50 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $412.41 AUD Regular price ~~$494.89 AUD~~ Sale price $412.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0600-0650-0500-PP (10 Pcs) --- Flanged Bushes - 60x65x50 mm Plastic - Iglidur P Bush Sale BF0600-0650-0500-PP (10 Pcs) --- Flanged Bushes - 60x65x50 mm Plastic - Iglidur P Bush Regular price $412.41 AUD Regular price ~~$494.89 AUD~~ Sale price $412.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 70.000 mm _{+ 0.050 / + 0.150} (Equiv. 2.756 in.)	Nominal Outside Diameter (D) 75.000 mm (Equiv. 2.953 in.)	Length (s) 50.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.969 in.)	Flange OD (D1) 83.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur P
Part Number: BF0700-0750-0500-PP (10 Pcs) Flanged Bushes - 70x75x50 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $453.23 AUD Regular price ~~$543.87 AUD~~ Sale price $453.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 70.000 mm _{+ 0.050 / + 0.150} (Equiv. 2.756 in.)	Nominal Outside Diameter (D) 75.000 mm (Equiv. 2.953 in.)	Length (s) 50.000 mm _{+ 0.000 / - 0.390} (Equiv. 1.969 in.)	Flange OD (D1) 83.00 mm
Material: Iglidur P Flange Thickness (s1): 2.00 mm
Part Number: BF0700-0750-0500-PP (10 Pcs) Flanged Bushes - 70x75x50 mm Plastic - Iglidur P Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $453.23 AUD Regular price ~~$543.87 AUD~~ Sale price $453.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0700-0750-0500-PP (10 Pcs) --- Flanged Bushes - 70x75x50 mm Plastic - Iglidur P Bush Sale BF0700-0750-0500-PP (10 Pcs) --- Flanged Bushes - 70x75x50 mm Plastic - Iglidur P Bush Regular price $453.23 AUD Regular price ~~$543.87 AUD~~ Sale price $453.23 AUD Unit price per Out of stock! Backorder Now Sale
