Bushes - Flanged - Plastic - Iglidur A290

Bushes -> Flanged -> Plastic -> Iglidur A290

There are 15 products in the sub-categories of Bushes - Flanged - Plastic - Iglidur A290. Browse the Bushes - Flanged - Plastic - Iglidur A290 products table.

Category Details

A selection of Iglidur A290 Plastic Flanged Bushes. Food grade for low speeds and direct contact with food and pharmaceuticals.

  • An expanded range may be available on special order. Please enquire.
  • Specific Gravity 1.39 g/cm3.
  • Operating Temp 180 C short term / 140 C long term.
  • Tensile Strength at 20 Deg C = 250 Mpa.
  • Hardness 88 Shore D (DIN53505).
  • Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Flanged - Plastic - Iglidur A290 category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Flange Thickness (s1) Indicative
Nominal Inside Diameter (d)
4.000
mm
+ 0.030 / + 0.105
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
5.500
mm

(Equiv. 0.217 in.)
Length (s)
4.000
mm
+ 0.000 / - 0.180
(Equiv. 0.157 in.)
Flange OD (D1)
9.50
mm
Flange Thickness (s1)
0.75
mm

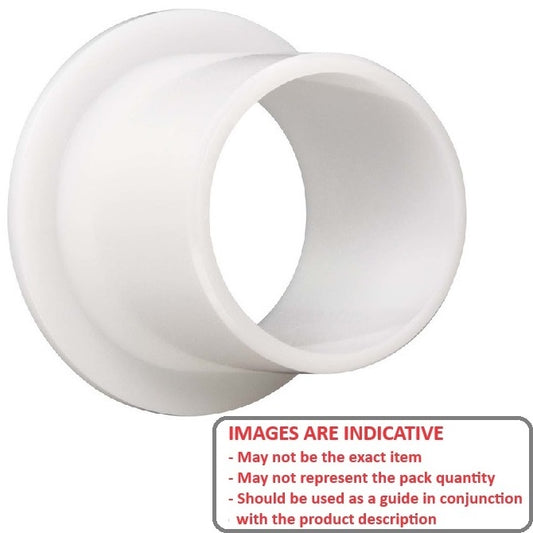

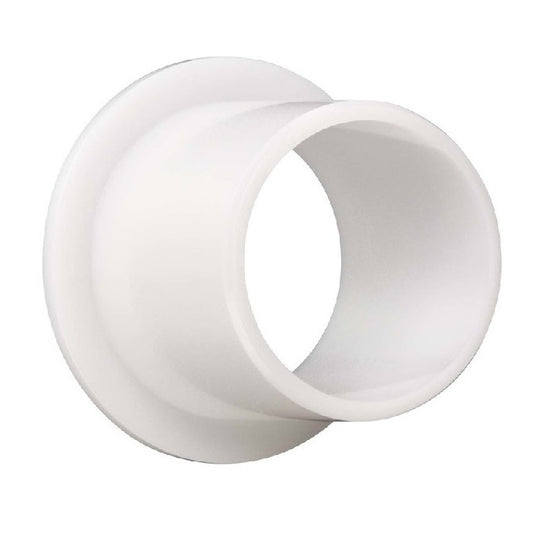

Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0040-0055-0040-PA29 (10 Pcs)
Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$85.05 AUD
$85.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Indicative
Nominal Inside Diameter (d)
4.000
mm
+ 0.030 / + 0.105
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
5.500
mm

(Equiv. 0.217 in.)
Length (s)
4.000
mm
+ 0.000 / - 0.180
(Equiv. 0.157 in.)
Flange OD (D1)
9.50
mm
Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 0.75 mm
Part Number: BF0040-0055-0040-PA29 (10 Pcs)
Flanged Bushes - 4x5.5x4 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$85.05 AUD
$85.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
5.000
mm
+ 0.030 / + 0.105
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
7.000
mm

(Equiv. 0.276 in.)
Length (s)
5.000
mm
+ 0.000 / - 0.180
(Equiv. 0.197 in.)
Flange OD (D1)
11.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 5x7x5 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0050-0070-0050-PA29 (10 Pcs)
Flanged Bushes - 5x7x5 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$73.59 AUD
$88.31 AUD $73.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
5.000
mm
+ 0.030 / + 0.105
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
7.000
mm

(Equiv. 0.276 in.)
Length (s)
5.000
mm
+ 0.000 / - 0.180
(Equiv. 0.197 in.)
Flange OD (D1)
11.00
mm
Flanged Bushes - 5x7x5 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0050-0070-0050-PA29 (10 Pcs)
Flanged Bushes - 5x7x5 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$73.59 AUD
$88.31 AUD $73.59 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
6.000
mm
+ 0.030 / + 0.105
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm

(Equiv. 0.315 in.)
Length (s)
8.000
mm
+ 0.000 / - 0.220
(Equiv. 0.315 in.)
Flange OD (D1)
12.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 6x8x8 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0060-0080-0080-PA29 (10 Pcs)
Flanged Bushes - 6x8x8 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$91.50 AUD
$109.80 AUD $91.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
6.000
mm
+ 0.030 / + 0.105
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
8.000
mm

(Equiv. 0.315 in.)
Length (s)
8.000
mm
+ 0.000 / - 0.220
(Equiv. 0.315 in.)
Flange OD (D1)
12.00
mm
Flanged Bushes - 6x8x8 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0060-0080-0080-PA29 (10 Pcs)
Flanged Bushes - 6x8x8 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$91.50 AUD
$109.80 AUD $91.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(Equiv. 0.354 in.)
Flange OD (D1)
15.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 8x10x9 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0080-0100-0090-PA29 (10 Pcs)
Flanged Bushes - 8x10x9 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$94.14 AUD
$112.96 AUD $94.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(Equiv. 0.354 in.)
Flange OD (D1)
15.00
mm
Flanged Bushes - 8x10x9 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0080-0100-0090-PA29 (10 Pcs)
Flanged Bushes - 8x10x9 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$94.14 AUD
$112.96 AUD $94.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
10.000
mm
+ 0.040 / + 0.130
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
12.000
mm

(Equiv. 0.472 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(Equiv. 0.354 in.)
Flange OD (D1)
18.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 10x12x9 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0100-0120-0090-PA29 (10 Pcs)
Flanged Bushes - 10x12x9 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$94.14 AUD
$112.96 AUD $94.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
10.000
mm
+ 0.040 / + 0.130
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
12.000
mm

(Equiv. 0.472 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(Equiv. 0.354 in.)
Flange OD (D1)
18.00
mm
Flanged Bushes - 10x12x9 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0100-0120-0090-PA29 (10 Pcs)
Flanged Bushes - 10x12x9 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$94.14 AUD
$112.96 AUD $94.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
12.000
mm
+ 0.050 / + 0.160
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm

(Equiv. 0.551 in.)
Length (s)
12.000
mm
+ 0.000 / - 0.270
(Equiv. 0.472 in.)
Flange OD (D1)
20.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 12x14x12 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0120-0140-0120-PA29 (10 Pcs)
Flanged Bushes - 12x14x12 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$107.77 AUD
$129.33 AUD $107.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
12.000
mm
+ 0.050 / + 0.160
(Equiv. 0.472 in.)
Nominal Outside Diameter (D)
14.000
mm

(Equiv. 0.551 in.)
Length (s)
12.000
mm
+ 0.000 / - 0.270
(Equiv. 0.472 in.)
Flange OD (D1)
20.00
mm
Flanged Bushes - 12x14x12 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0120-0140-0120-PA29 (10 Pcs)
Flanged Bushes - 12x14x12 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$107.77 AUD
$129.33 AUD $107.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
15.000
mm
+ 0.050 / + 0.160
(Equiv. 0.591 in.)
Nominal Outside Diameter (D)
17.000
mm

(Equiv. 0.669 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
23.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 15x17x17 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0150-0170-0170-PA29 (10 Pcs)
Flanged Bushes - 15x17x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$96.86 AUD
$116.24 AUD $96.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
15.000
mm
+ 0.050 / + 0.160
(Equiv. 0.591 in.)
Nominal Outside Diameter (D)
17.000
mm

(Equiv. 0.669 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
23.00
mm
Flanged Bushes - 15x17x17 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0150-0170-0170-PA29 (10 Pcs)
Flanged Bushes - 15x17x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$96.86 AUD
$116.24 AUD $96.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
16.000
mm
+ 0.050 / + 0.160
(Equiv. 0.63 in.)
Nominal Outside Diameter (D)
18.000
mm

(Equiv. 0.709 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
24.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 16x18x17 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0160-0180-0170-PA29 (10 Pcs)
Flanged Bushes - 16x18x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$95.23 AUD
$114.27 AUD $95.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
16.000
mm
+ 0.050 / + 0.160
(Equiv. 0.63 in.)
Nominal Outside Diameter (D)
18.000
mm

(Equiv. 0.709 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
24.00
mm
Flanged Bushes - 16x18x17 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0160-0180-0170-PA29 (10 Pcs)
Flanged Bushes - 16x18x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$95.23 AUD
$114.27 AUD $95.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
+ 0.050 / + 0.160
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm

(Equiv. 0.787 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
26.00
mm
Flange Thickness (s1)
1.00
mm
Flanged Bushes - 18x20x17 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0180-0200-0170-PA29 (10 Pcs)
Flanged Bushes - 18x20x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
18.000
mm
+ 0.050 / + 0.160
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
20.000
mm

(Equiv. 0.787 in.)
Length (s)
17.000
mm
+ 0.000 / - 0.270
(Equiv. 0.669 in.)
Flange OD (D1)
26.00
mm
Flanged Bushes - 18x20x17 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.00 mm
Part Number: BF0180-0200-0170-PA29 (10 Pcs)
Flanged Bushes - 18x20x17 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$103.68 AUD
$124.42 AUD $103.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
20.000
mm
+ 0.065 / + 0.195
(Equiv. 0.787 in.)
Nominal Outside Diameter (D)
23.000
mm

(Equiv. 0.906 in.)
Length (s)
21.000
mm
+ 0.000 / - 0.330
(Equiv. 0.827 in.)
Flange OD (D1)
30.00
mm
Flange Thickness (s1)
1.50
mm
Flanged Bushes - 20x23x21 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0200-0230-0210-PA29 (10 Pcs)
Flanged Bushes - 20x23x21 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$110.50 AUD
$132.60 AUD $110.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
20.000
mm
+ 0.065 / + 0.195
(Equiv. 0.787 in.)
Nominal Outside Diameter (D)
23.000
mm

(Equiv. 0.906 in.)
Length (s)
21.000
mm
+ 0.000 / - 0.330
(Equiv. 0.827 in.)
Flange OD (D1)
30.00
mm
Flanged Bushes - 20x23x21 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.50 mm
Part Number: BF0200-0230-0210-PA29 (10 Pcs)
Flanged Bushes - 20x23x21 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$110.50 AUD
$132.60 AUD $110.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
+ 0.065 / + 0.195
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm

(Equiv. 1.102 in.)
Length (s)
21.000
mm
+ 0.000 / - 0.330
(Equiv. 0.827 in.)
Flange OD (D1)
35.00
mm
Flange Thickness (s1)
1.50
mm
Flanged Bushes - 25x28x21 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0250-0280-0210-PA29 (10 Pcs)
Flanged Bushes - 25x28x21 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$115.95 AUD
$139.15 AUD $115.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
25.000
mm
+ 0.065 / + 0.195
(Equiv. 0.984 in.)
Nominal Outside Diameter (D)
28.000
mm

(Equiv. 1.102 in.)
Length (s)
21.000
mm
+ 0.000 / - 0.330
(Equiv. 0.827 in.)
Flange OD (D1)
35.00
mm
Flanged Bushes - 25x28x21 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 1.50 mm
Part Number: BF0250-0280-0210-PA29 (10 Pcs)
Flanged Bushes - 25x28x21 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$115.95 AUD
$139.15 AUD $115.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
+ 0.065 / + 0.195
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm

(Equiv. 1.339 in.)
Length (s)
26.000
mm
+ 0.000 / - 0.330
(Equiv. 1.024 in.)
Flange OD (D1)
42.00
mm
Flange Thickness (s1)
2.00
mm
Flanged Bushes - 30x34x26 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0300-0340-0260-PA29 (10 Pcs)
Flanged Bushes - 30x34x26 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$134.95 AUD
$161.95 AUD $134.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
30.000
mm
+ 0.065 / + 0.195
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
34.000
mm

(Equiv. 1.339 in.)
Length (s)
26.000
mm
+ 0.000 / - 0.330
(Equiv. 1.024 in.)
Flange OD (D1)
42.00
mm
Flanged Bushes - 30x34x26 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 2.00 mm
Part Number: BF0300-0340-0260-PA29 (10 Pcs)
Flanged Bushes - 30x34x26 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$134.95 AUD
$161.95 AUD $134.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
35.000
mm
+ 0.080 / + 0.240
(Equiv. 1.378 in.)
Nominal Outside Diameter (D)
39.000
mm

(Equiv. 1.535 in.)
Length (s)
26.000
mm
+ 0.000 / - 0.330
(Equiv. 1.024 in.)
Flange OD (D1)
47.00
mm
Flange Thickness (s1)
2.00
mm
Flanged Bushes - 35x39x26 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0350-0390-0260-PA29 (10 Pcs)
Flanged Bushes - 35x39x26 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$139.05 AUD
$166.85 AUD $139.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
35.000
mm
+ 0.080 / + 0.240
(Equiv. 1.378 in.)
Nominal Outside Diameter (D)
39.000
mm

(Equiv. 1.535 in.)
Length (s)
26.000
mm
+ 0.000 / - 0.330
(Equiv. 1.024 in.)
Flange OD (D1)
47.00
mm
Flanged Bushes - 35x39x26 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 2.00 mm
Part Number: BF0350-0390-0260-PA29 (10 Pcs)
Flanged Bushes - 35x39x26 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$139.05 AUD
$166.85 AUD $139.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
40.000
mm
+ 0.080 / + 0.240
(Equiv. 1.575 in.)
Nominal Outside Diameter (D)
44.000
mm

(Equiv. 1.732 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Flange OD (D1)
52.00
mm
Flange Thickness (s1)
2.00
mm
Flanged Bushes - 40x44x40 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0400-0440-0400-PA29 (10 Pcs)
Flanged Bushes - 40x44x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$163.50 AUD
$196.20 AUD $163.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
40.000
mm
+ 0.080 / + 0.240
(Equiv. 1.575 in.)
Nominal Outside Diameter (D)
44.000
mm

(Equiv. 1.732 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Flange OD (D1)
52.00
mm
Flanged Bushes - 40x44x40 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 2.00 mm
Part Number: BF0400-0440-0400-PA29 (10 Pcs)
Flanged Bushes - 40x44x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$163.50 AUD
$196.20 AUD $163.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
50.000
mm
+ 0.080 / + 0.240
(Equiv. 1.969 in.)
Nominal Outside Diameter (D)
55.000
mm

(Equiv. 2.165 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Flange OD (D1)
63.00
mm
Flange Thickness (s1)
2.00
mm
Flanged Bushes - 50x55x40 mm Plastic - Iglidur A290
Material: Iglidur A290
Part Number: BF0500-0550-0400-PA29 (10 Pcs)
Flanged Bushes - 50x55x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$344.41 AUD
$413.29 AUD $344.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter (d)
50.000
mm
+ 0.080 / + 0.240
(Equiv. 1.969 in.)
Nominal Outside Diameter (D)
55.000
mm

(Equiv. 2.165 in.)
Length (s)
40.000
mm
+ 0.000 / - 0.460
(Equiv. 1.575 in.)
Flange OD (D1)
63.00
mm
Flanged Bushes - 50x55x40 mm Plastic - Iglidur A290
Material: Iglidur A290    Flange Thickness (s1): 2.00 mm
Part Number: BF0500-0550-0400-PA29 (10 Pcs)
Flanged Bushes - 50x55x40 mm Plastic - Iglidur A290 Bush
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$344.41 AUD
$413.29 AUD $344.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
