Collection: Bushes - Flanged - Plastic - Iglidur A200

Bushes -> Flanged -> Plastic -> Iglidur A200

There are 95 products in the sub-categories of Bushes - Flanged - Plastic - Iglidur A200. Scroll down or follow the link to Bushes - Flanged - Plastic - Iglidur A200 in the products table to see all these items combined into a handy table with filters.

Category Details

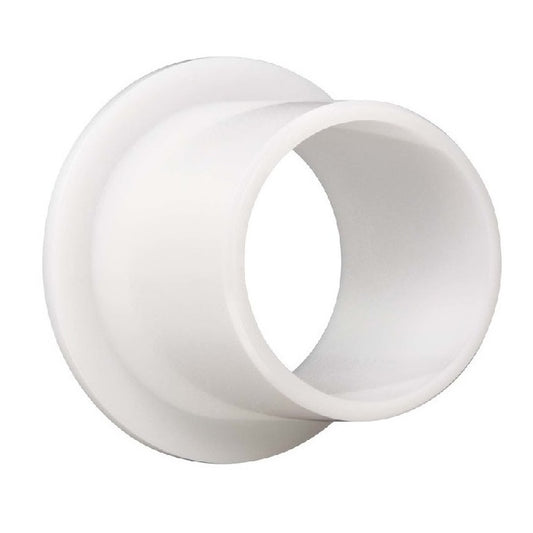

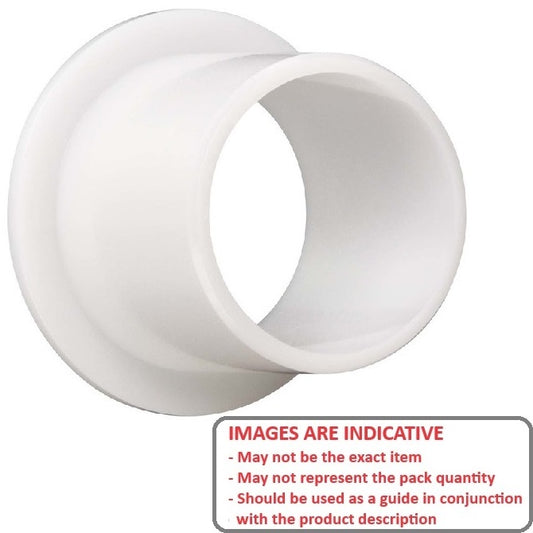

A selection of Iglidur A200 Plastic Flanged Bushes. Food grade for low speeds and direct contact with food and pharmaceuticals.

An expanded range may be available on special order. Please enquire.
Specific Gravity 1.14 g/cm3.
Operating Temp 170 C short term / 80 C long term.
Tensile Strength at 20 Deg C = 116 Mpa.
Hardness 81 Shore D (DIN53505).
Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bushes - Flanged - Plastic - Iglidur A200 category on the Small Parts & Bearings online store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Flange Thickness (s1)
Nominal Inside Diameter (d) 1.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.039 in.)	Nominal Outside Diameter (D) 3.000 mm (Equiv. 0.118 in.)	Length (s) 2.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.079 in.)	Flange OD (D1) 5.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur A200
Part Number: BF0010-0030-0020-PA20 (10 Pcs) Flanged Bushes - 1x3x2 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Indicative Image
Nominal Inside Diameter (d) 1.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.039 in.)	Nominal Outside Diameter (D) 3.000 mm (Equiv. 0.118 in.)	Length (s) 2.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.079 in.)	Flange OD (D1) 5.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.00 mm
Part Number: BF0010-0030-0020-PA20 (10 Pcs) Flanged Bushes - 1x3x2 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0010-0030-0020-PA20 (10 Pcs) --- Flanged Bushes - 1x3x2 mm Plastic - Iglidur A200 Bush Sale BF0010-0030-0020-PA20 (10 Pcs) --- Flanged Bushes - 1x3x2 mm Plastic - Iglidur A200 Bush Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 1.500 mm _{+ 0.020 / + 0.080} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 4.000 mm (Equiv. 0.157 in.)	Length (s) 2.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.079 in.)	Flange OD (D1) 6.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur A200
Part Number: BF0015-0040-0020-PA20 (10 Pcs) Flanged Bushes - 1.5x4x2 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 1.500 mm _{+ 0.020 / + 0.080} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 4.000 mm (Equiv. 0.157 in.)	Length (s) 2.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.079 in.)	Flange OD (D1) 6.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.00 mm
Part Number: BF0015-0040-0020-PA20 (10 Pcs) Flanged Bushes - 1.5x4x2 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0015-0040-0020-PA20 (10 Pcs) --- Flanged Bushes - 1.5x4x2 mm Plastic - Iglidur A200 Bush Sale BF0015-0040-0020-PA20 (10 Pcs) --- Flanged Bushes - 1.5x4x2 mm Plastic - Iglidur A200 Bush Regular price $77.77 AUD Regular price ~~$93.33 AUD~~ Sale price $77.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 2.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 5.000 mm (Equiv. 0.197 in.)	Length (s) 3.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.118 in.)	Flange OD (D1) 8.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur A200
Part Number: BF0020-0050-0030-PA20 (10 Pcs) Flanged Bushes - 2x5x3 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 2.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 5.000 mm (Equiv. 0.197 in.)	Length (s) 3.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.118 in.)	Flange OD (D1) 8.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.50 mm
Part Number: BF0020-0050-0030-PA20 (10 Pcs) Flanged Bushes - 2x5x3 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0020-0050-0030-PA20 (10 Pcs) --- Flanged Bushes - 2x5x3 mm Plastic - Iglidur A200 Bush Sale BF0020-0050-0030-PA20 (10 Pcs) --- Flanged Bushes - 2x5x3 mm Plastic - Iglidur A200 Bush Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 2.500 mm _{+ 0.020 / + 0.080} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 6.000 mm (Equiv. 0.236 in.)	Length (s) 3.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.118 in.)	Flange OD (D1) 9.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur A200
Part Number: BF0025-0060-0030-PA20 (10 Pcs) Flanged Bushes - 2.5x6x3 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 2.500 mm _{+ 0.020 / + 0.080} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 6.000 mm (Equiv. 0.236 in.)	Length (s) 3.000 mm _{+ 0.000 / - 0.140} (Equiv. 0.118 in.)	Flange OD (D1) 9.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.50 mm
Part Number: BF0025-0060-0030-PA20 (10 Pcs) Flanged Bushes - 2.5x6x3 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0025-0060-0030-PA20 (10 Pcs) --- Flanged Bushes - 2.5x6x3 mm Plastic - Iglidur A200 Bush Sale BF0025-0060-0030-PA20 (10 Pcs) --- Flanged Bushes - 2.5x6x3 mm Plastic - Iglidur A200 Bush Regular price $79.14 AUD Regular price ~~$94.96 AUD~~ Sale price $79.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 3.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm (Equiv. 0.236 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 9.00 mm	Flange Thickness (s1) 1.50 mm
Material: Iglidur A200
Part Number: BF0030-0060-0040-PA20 (10 Pcs) Flanged Bushes - 3x6x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.020 / + 0.080} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm (Equiv. 0.236 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 9.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.50 mm
Part Number: BF0030-0060-0040-PA20 (10 Pcs) Flanged Bushes - 3x6x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0030-0060-0040-PA20 (10 Pcs) --- Flanged Bushes - 3x6x4 mm Plastic - Iglidur A200 Bush Sale BF0030-0060-0040-PA20 (10 Pcs) --- Flanged Bushes - 3x6x4 mm Plastic - Iglidur A200 Bush Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 3.175 mm _{+ 0.030 / + 0.105} (Equiv. 0.125 in.)	Nominal Outside Diameter (D) 6.350 mm (Equiv. 0.25 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 9.14 mm	Flange Thickness (s1) 1.94 mm
Material: Iglidur A200
Part Number: BF0032-0064-0064-PA20 (10 Pcs) Flanged Bushes - 3.175x6.35x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 3.175 mm _{+ 0.030 / + 0.105} (Equiv. 0.125 in.)	Nominal Outside Diameter (D) 6.350 mm (Equiv. 0.25 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 9.14 mm
Material: Iglidur A200 Flange Thickness (s1): 1.94 mm
Part Number: BF0032-0064-0064-PA20 (10 Pcs) Flanged Bushes - 3.175x6.35x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0032-0064-0064-PA20 (10 Pcs) --- Flanged Bushes - 3.175x6.35x6.35 mm Plastic - Iglidur A200 Bush Sale BF0032-0064-0064-PA20 (10 Pcs) --- Flanged Bushes - 3.175x6.35x6.35 mm Plastic - Iglidur A200 Bush Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 4.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0040-0080-0040-PA20 (10 Pcs) Flanged Bushes - 4x8x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 12.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0040-0080-0040-PA20 (10 Pcs) Flanged Bushes - 4x8x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0040-0080-0040-PA20 (10 Pcs) --- Flanged Bushes - 4x8x4 mm Plastic - Iglidur A200 Bush Sale BF0040-0080-0040-PA20 (10 Pcs) --- Flanged Bushes - 4x8x4 mm Plastic - Iglidur A200 Bush Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 4.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0040-0080-0060-PA20 (10 Pcs) Flanged Bushes - 4x8x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.41 AUD Regular price ~~$92.89 AUD~~ Sale price $77.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm (Equiv. 0.315 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 12.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0040-0080-0060-PA20 (10 Pcs) Flanged Bushes - 4x8x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $77.41 AUD Regular price ~~$92.89 AUD~~ Sale price $77.41 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0040-0080-0060-PA20 (10 Pcs) --- Flanged Bushes - 4x8x6 mm Plastic - Iglidur A200 Bush Sale BF0040-0080-0060-PA20 (10 Pcs) --- Flanged Bushes - 4x8x6 mm Plastic - Iglidur A200 Bush Regular price $77.41 AUD Regular price ~~$92.89 AUD~~ Sale price $77.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 4.763 mm _{+ 0.030 / + 0.105} (Equiv. 0.188 in.)	Nominal Outside Diameter (D) 7.938 mm (Equiv. 0.313 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 9.40 mm	Flange Thickness (s1) 1.94 mm
Material: Iglidur A200
Part Number: BF0048-0079-0064-PA20 (10 Pcs) Flanged Bushes - 4.763x7.938x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 4.763 mm _{+ 0.030 / + 0.105} (Equiv. 0.188 in.)	Nominal Outside Diameter (D) 7.938 mm (Equiv. 0.313 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 9.40 mm
Material: Iglidur A200 Flange Thickness (s1): 1.94 mm
Part Number: BF0048-0079-0064-PA20 (10 Pcs) Flanged Bushes - 4.763x7.938x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0048-0079-0064-PA20 (10 Pcs) --- Flanged Bushes - 4.763x7.938x6.35 mm Plastic - Iglidur A200 Bush Sale BF0048-0079-0064-PA20 (10 Pcs) --- Flanged Bushes - 4.763x7.938x6.35 mm Plastic - Iglidur A200 Bush Regular price $58.50 AUD Regular price ~~$70.20 AUD~~ Sale price $58.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm (Equiv. 0.276 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 11.00 mm	Flange Thickness (s1) 1.00 mm
Material: Iglidur A200
Part Number: BF0050-0070-0050-PA20 (10 Pcs) Flanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm (Equiv. 0.276 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 11.00 mm
Material: Iglidur A200 Flange Thickness (s1): 1.00 mm
Part Number: BF0050-0070-0050-PA20 (10 Pcs) Flanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0050-0070-0050-PA20 (10 Pcs) --- Flanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush Sale BF0050-0070-0050-PA20 (10 Pcs) --- Flanged Bushes - 5x7x5 mm Plastic - Iglidur A200 Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 13.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0050-0090-0050-PA20 (10 Pcs) Flanged Bushes - 5x9x5 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 5.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.197 in.)	Flange OD (D1) 13.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0050-0090-0050-PA20 (10 Pcs) Flanged Bushes - 5x9x5 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0050-0090-0050-PA20 (10 Pcs) --- Flanged Bushes - 5x9x5 mm Plastic - Iglidur A200 Bush Sale BF0050-0090-0050-PA20 (10 Pcs) --- Flanged Bushes - 5x9x5 mm Plastic - Iglidur A200 Bush Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 13.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0050-0090-0060-PA20 (10 Pcs) Flanged Bushes - 5x9x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 13.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0050-0090-0060-PA20 (10 Pcs) Flanged Bushes - 5x9x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0050-0090-0060-PA20 (10 Pcs) --- Flanged Bushes - 5x9x6 mm Plastic - Iglidur A200 Bush Sale BF0050-0090-0060-PA20 (10 Pcs) --- Flanged Bushes - 5x9x6 mm Plastic - Iglidur A200 Bush Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 13.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0050-0090-0080-PA20 (10 Pcs) Flanged Bushes - 5x9x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm (Equiv. 0.354 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 13.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0050-0090-0080-PA20 (10 Pcs) Flanged Bushes - 5x9x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0050-0090-0080-PA20 (10 Pcs) --- Flanged Bushes - 5x9x8 mm Plastic - Iglidur A200 Bush Sale BF0050-0090-0080-PA20 (10 Pcs) --- Flanged Bushes - 5x9x8 mm Plastic - Iglidur A200 Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0060-0100-0040-PA20 (10 Pcs) Flanged Bushes - 6x10x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 4.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.157 in.)	Flange OD (D1) 14.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0060-0100-0040-PA20 (10 Pcs) Flanged Bushes - 6x10x4 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0100-0040-PA20 (10 Pcs) --- Flanged Bushes - 6x10x4 mm Plastic - Iglidur A200 Bush Sale BF0060-0100-0040-PA20 (10 Pcs) --- Flanged Bushes - 6x10x4 mm Plastic - Iglidur A200 Bush Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0060-0100-0060-PA20 (10 Pcs) Flanged Bushes - 6x10x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 14.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0060-0100-0060-PA20 (10 Pcs) Flanged Bushes - 6x10x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0100-0060-PA20 (10 Pcs) --- Flanged Bushes - 6x10x6 mm Plastic - Iglidur A200 Bush Sale BF0060-0100-0060-PA20 (10 Pcs) --- Flanged Bushes - 6x10x6 mm Plastic - Iglidur A200 Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0060-0100-0100-PA20 (10 Pcs) Flanged Bushes - 6x10x10 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm (Equiv. 0.394 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0060-0100-0100-PA20 (10 Pcs) Flanged Bushes - 6x10x10 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0100-0100-PA20 (10 Pcs) --- Flanged Bushes - 6x10x10 mm Plastic - Iglidur A200 Bush Sale BF0060-0100-0100-PA20 (10 Pcs) --- Flanged Bushes - 6x10x10 mm Plastic - Iglidur A200 Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (s1) 3.00 mm
Material: Iglidur A200
Part Number: BF0060-0120-0060-PA20 (10 Pcs) Flanged Bushes - 6x12x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 14.00 mm
Material: Iglidur A200 Flange Thickness (s1): 3.00 mm
Part Number: BF0060-0120-0060-PA20 (10 Pcs) Flanged Bushes - 6x12x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0120-0060-PA20 (10 Pcs) --- Flanged Bushes - 6x12x6 mm Plastic - Iglidur A200 Bush Sale BF0060-0120-0060-PA20 (10 Pcs) --- Flanged Bushes - 6x12x6 mm Plastic - Iglidur A200 Bush Regular price $83.23 AUD Regular price ~~$99.87 AUD~~ Sale price $83.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (s1) 3.00 mm
Material: Iglidur A200
Part Number: BF0060-0120-0100-PA20 (10 Pcs) Flanged Bushes - 6x12x10 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.030 / + 0.105} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 10.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm
Material: Iglidur A200 Flange Thickness (s1): 3.00 mm
Part Number: BF0060-0120-0100-PA20 (10 Pcs) Flanged Bushes - 6x12x10 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0060-0120-0100-PA20 (10 Pcs) --- Flanged Bushes - 6x12x10 mm Plastic - Iglidur A200 Bush Sale BF0060-0120-0100-PA20 (10 Pcs) --- Flanged Bushes - 6x12x10 mm Plastic - Iglidur A200 Bush Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.350 mm _{+ 0.040 / + 0.130} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 14.22 mm	Flange Thickness (s1) 1.94 mm
Material: Iglidur A200
Part Number: BF0064-0095-0064-PA20 (10 Pcs) Flanged Bushes - 6.35x9.525x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.350 mm _{+ 0.040 / + 0.130} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Length (s) 6.350 mm _{+ 0.000 / - 0.220} (Equiv. 0.25 in.)	Flange OD (D1) 14.22 mm
Material: Iglidur A200 Flange Thickness (s1): 1.94 mm
Part Number: BF0064-0095-0064-PA20 (10 Pcs) Flanged Bushes - 6.35x9.525x6.35 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0064-0095-0064-PA20 (10 Pcs) --- Flanged Bushes - 6.35x9.525x6.35 mm Plastic - Iglidur A200 Bush Sale BF0064-0095-0064-PA20 (10 Pcs) --- Flanged Bushes - 6.35x9.525x6.35 mm Plastic - Iglidur A200 Bush Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.350 mm _{+ 0.040 / + 0.130} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Length (s) 9.525 mm _{+ 0.000 / - 0.220} (Equiv. 0.375 in.)	Flange OD (D1) 14.22 mm	Flange Thickness (s1) 1.94 mm
Material: Iglidur A200
Part Number: BF0064-0095-0095-PA20 (10 Pcs) Flanged Bushes - 6.35x9.525x9.525 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.350 mm _{+ 0.040 / + 0.130} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Length (s) 9.525 mm _{+ 0.000 / - 0.220} (Equiv. 0.375 in.)	Flange OD (D1) 14.22 mm
Material: Iglidur A200 Flange Thickness (s1): 1.94 mm
Part Number: BF0064-0095-0095-PA20 (10 Pcs) Flanged Bushes - 6.35x9.525x9.525 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0064-0095-0095-PA20 (10 Pcs) --- Flanged Bushes - 6.35x9.525x9.525 mm Plastic - Iglidur A200 Bush Sale BF0064-0095-0095-PA20 (10 Pcs) --- Flanged Bushes - 6.35x9.525x9.525 mm Plastic - Iglidur A200 Bush Regular price $59.23 AUD Regular price ~~$71.07 AUD~~ Sale price $59.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 7.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 11.000 mm (Equiv. 0.433 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 15.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0070-0110-0080-PA20 (10 Pcs) Flanged Bushes - 7x11x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 7.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 11.000 mm (Equiv. 0.433 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 15.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0070-0110-0080-PA20 (10 Pcs) Flanged Bushes - 7x11x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0070-0110-0080-PA20 (10 Pcs) --- Flanged Bushes - 7x11x8 mm Plastic - Iglidur A200 Bush Sale BF0070-0110-0080-PA20 (10 Pcs) --- Flanged Bushes - 7x11x8 mm Plastic - Iglidur A200 Bush Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 7.938 mm _{+ 0.040 / + 0.130} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 11.113 mm (Equiv. 0.438 in.)	Length (s) 12.700 mm _{+ 0.000 / - 0.270} (Equiv. 0.5 in.)	Flange OD (D1) 14.22 mm	Flange Thickness (s1) 1.58 mm
Material: Iglidur A200
Part Number: BF0079-0111-0127-PA20 (10 Pcs) Flanged Bushes - 7.938x11.113x12.7 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $60.59 AUD Regular price ~~$72.71 AUD~~ Sale price $60.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 7.938 mm _{+ 0.040 / + 0.130} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 11.113 mm (Equiv. 0.438 in.)	Length (s) 12.700 mm _{+ 0.000 / - 0.270} (Equiv. 0.5 in.)	Flange OD (D1) 14.22 mm
Material: Iglidur A200 Flange Thickness (s1): 1.58 mm
Part Number: BF0079-0111-0127-PA20 (10 Pcs) Flanged Bushes - 7.938x11.113x12.7 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $60.59 AUD Regular price ~~$72.71 AUD~~ Sale price $60.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0079-0111-0127-PA20 (10 Pcs) --- Flanged Bushes - 7.938x11.113x12.7 mm Plastic - Iglidur A200 Bush Sale BF0079-0111-0127-PA20 (10 Pcs) --- Flanged Bushes - 7.938x11.113x12.7 mm Plastic - Iglidur A200 Bush Regular price $60.59 AUD Regular price ~~$72.71 AUD~~ Sale price $60.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 11.000 mm (Equiv. 0.433 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 13.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0080-0110-0080-PA20 (10 Pcs) Flanged Bushes - 8x11x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 11.000 mm (Equiv. 0.433 in.)	Length (s) 8.000 mm _{+ 0.000 / - 0.220} (Equiv. 0.315 in.)	Flange OD (D1) 13.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0080-0110-0080-PA20 (10 Pcs) Flanged Bushes - 8x11x8 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0080-0110-0080-PA20 (10 Pcs) --- Flanged Bushes - 8x11x8 mm Plastic - Iglidur A200 Bush Sale BF0080-0110-0080-PA20 (10 Pcs) --- Flanged Bushes - 8x11x8 mm Plastic - Iglidur A200 Bush Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 13.00 mm	Flange Thickness (s1) 2.00 mm
Material: Iglidur A200
Part Number: BF0080-0120-0060-PA20 (10 Pcs) Flanged Bushes - 8x12x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.040 / + 0.130} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm (Equiv. 0.472 in.)	Length (s) 6.000 mm _{+ 0.000 / - 0.180} (Equiv. 0.236 in.)	Flange OD (D1) 13.00 mm
Material: Iglidur A200 Flange Thickness (s1): 2.00 mm
Part Number: BF0080-0120-0060-PA20 (10 Pcs) Flanged Bushes - 8x12x6 mm Plastic - Iglidur A200 Bush Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
BF0080-0120-0060-PA20 (10 Pcs) --- Flanged Bushes - 8x12x6 mm Plastic - Iglidur A200 Bush Sale BF0080-0120-0060-PA20 (10 Pcs) --- Flanged Bushes - 8x12x6 mm Plastic - Iglidur A200 Bush Regular price $84.68 AUD Regular price ~~$101.62 AUD~~ Sale price $84.68 AUD Unit price per Out of stock! Backorder Now Sale
