Belts - Timing 5.000mm Pitch - HTD - 6mm Wide - Single Sided

Belts -> Timing 5.000mm Pitch -> HTD -> 6mm Wide -> Single Sided

There are 6 products in the sub-categories of Belts - Timing 5.000mm Pitch - HTD - 6mm Wide - Single Sided. Browse the Belts - Timing 5.000mm Pitch - HTD - 6mm Wide - Single Sided products table.

Category Details

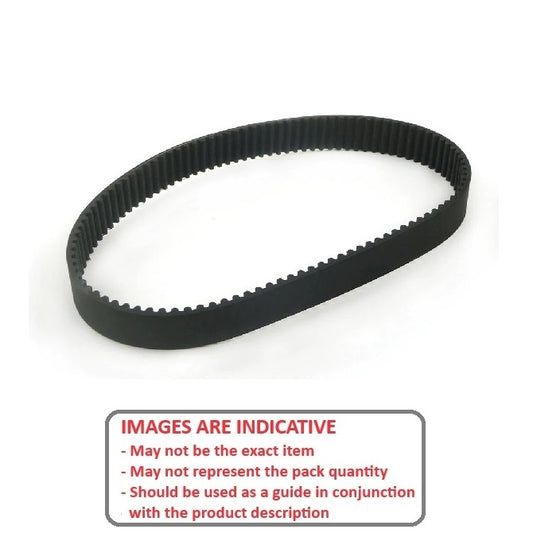

A selection of Single Sided 6mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 3.05mm
  • Tooth Height (H) - 2.08mm
  • Belt Height (W) - 3.8mm
  • Pitch (P) - 5mm

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Timing 5.000mm Pitch - HTD - 6mm Wide - Single Sided category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Number of Teeth
24

Length
120
mm

(Equiv. 4.724 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 24 tooth - 120x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0024-0060-NFB (2 Pcs)
Timing 5mm Pitch Belts - 24 tooth - 120x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$16.00 AUD
$30.40 AUD $16.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative
Number of Teeth
24

Length
120
mm

(Equiv. 4.724 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 24 tooth - 120x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0024-0060-NFB (2 Pcs)
Timing 5mm Pitch Belts - 24 tooth - 120x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$16.00 AUD
$30.40 AUD $16.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
45

Length
225
mm

(Equiv. 8.858 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 45 tooth - 225x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0045-0060-NFB
Timing 5mm Pitch Belts - 45 tooth - 225x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
45

Length
225
mm

(Equiv. 8.858 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 45 tooth - 225x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0045-0060-NFB
Timing 5mm Pitch Belts - 45 tooth - 225x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
59

Length
295
mm

(Equiv. 11.614 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 59 tooth - 295x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0059-0060-NFB

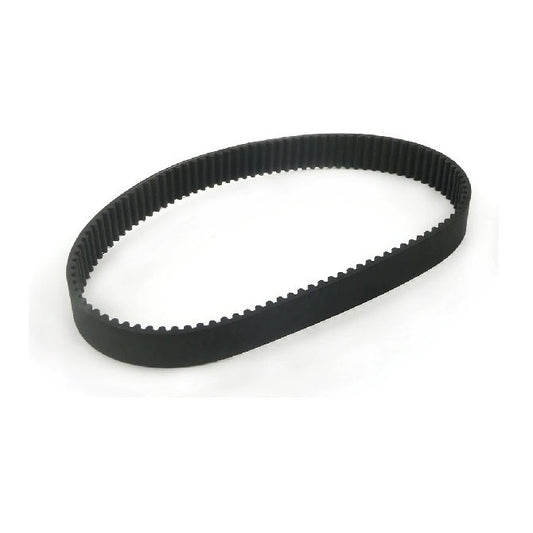

Timing 5mm Pitch Belts - 59 tooth - 295x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
Out of Stock | Backorder Now | More stock due: 702 around Fri, Sep 05, 2025 | Further orders can be expected around Fri, Oct 17, 2025
$15.05 AUD
$15.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
59

Length
295
mm

(Equiv. 11.614 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 59 tooth - 295x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0059-0060-NFB
Timing 5mm Pitch Belts - 59 tooth - 295x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
Out of Stock | Backorder Now | More stock due: 702 around Fri, Sep 05, 2025 | Further orders can be expected around Fri, Oct 17, 2025
$15.05 AUD
$15.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
125

Length
625
mm

(Equiv. 24.606 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 125 tooth - 625x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0125-0060-NFB
Timing 5mm Pitch Belts - 125 tooth - 625x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 17, 2025
$23.14 AUD
$27.76 AUD $23.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
125

Length
625
mm

(Equiv. 24.606 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 125 tooth - 625x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0125-0060-NFB
Timing 5mm Pitch Belts - 125 tooth - 625x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 17, 2025
$23.14 AUD
$27.76 AUD $23.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
167

Length
835
mm

(Equiv. 32.874 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 167 tooth - 835x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0167-0060-NFB
Timing 5mm Pitch Belts - 167 tooth - 835x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
167

Length
835
mm

(Equiv. 32.874 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 167 tooth - 835x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0167-0060-NFB
Timing 5mm Pitch Belts - 167 tooth - 835x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
505

Length
2525
mm

(Equiv. 99.409 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Reinforcement
Fibreglass
Appearance
Black
Timing 5.000mm Pitch Belts - 505 tooth - 2525x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0505-0060-NFB
Timing 5mm Pitch Belts - 505 tooth - 2525x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
183 Available Now | Item Discontinued - Up to 183 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Quantity Required

183 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
505

Length
2525
mm

(Equiv. 99.409 in.)
Width
6.0
mm

(Equiv. 0.236 in.)
Timing 5.000mm Pitch Belts - 505 tooth - 2525x6 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1896 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050H-0505-0060-NFB
Timing 5mm Pitch Belts - 505 tooth - 2525x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt
183 Available Now | Item Discontinued - Up to 183 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Quantity Required

183 Available Now. These are priced to quit. Please contact us for a quote if you require more.
