Belts - Timing 5.000mm Pitch - AT5 - 6mm Wide

Belts -> Timing 5.000mm Pitch -> AT5 -> 6mm Wide

There are 29 products in the sub-categories of Belts - Timing 5.000mm Pitch - AT5 - 6mm Wide. Scroll down or follow the link to Belts - Timing 5.000mm Pitch - AT5 - 6mm Wide in the products table to see all these items combined into a handy table with filters.

Category Details

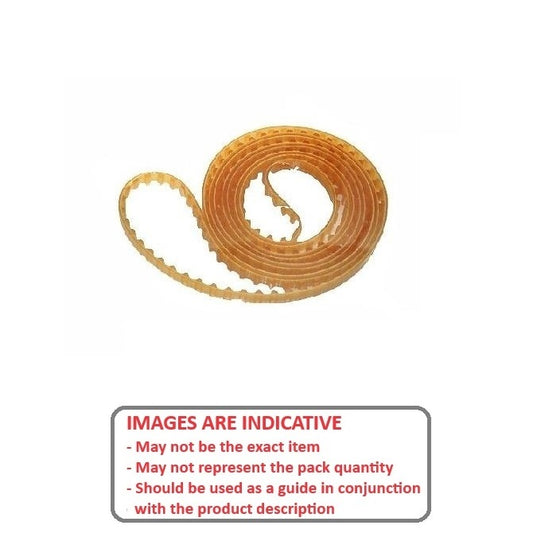

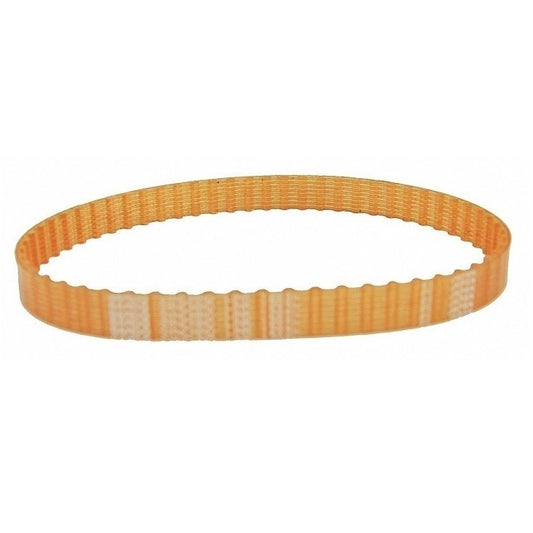

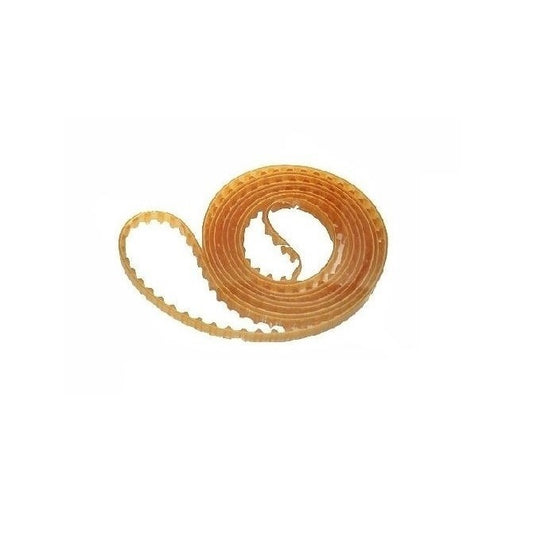

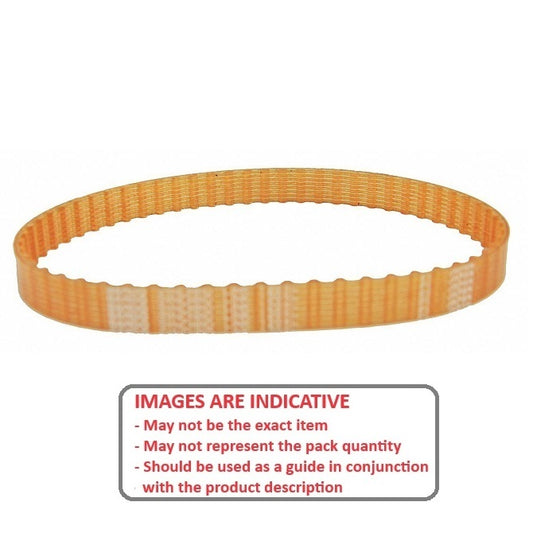

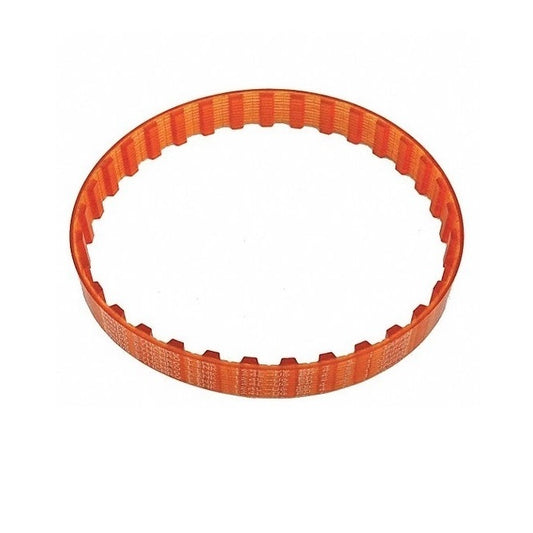

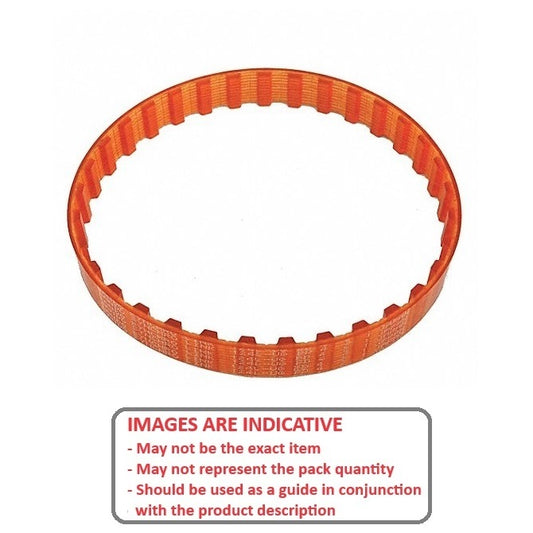

A selection of 6mm Wide AT5 Timing 5.000mm Pitch Belts. AT Synchroflex Generation III Series Metric Timing Belts.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 2.5mm
  • Tooth Height (H) - 1.2mm
  • Belt Height (W) - 2.7mm - Corner Radii ( r )- 0.6mm
  • Pitch (P) - 5mm

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Timing 5.000mm Pitch - AT5 - 6mm Wide category on the Small Parts & Bearings online store.
