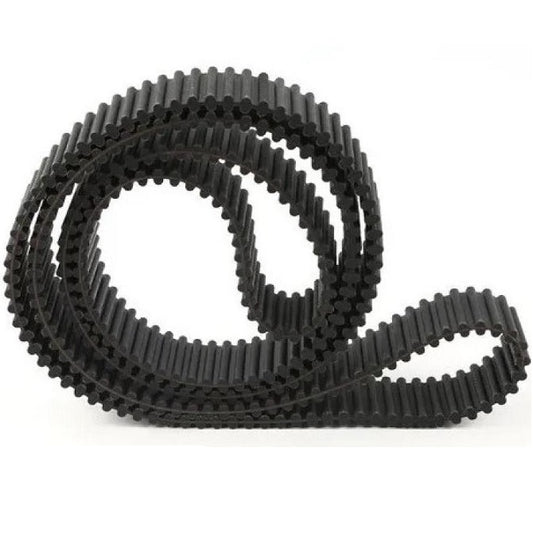

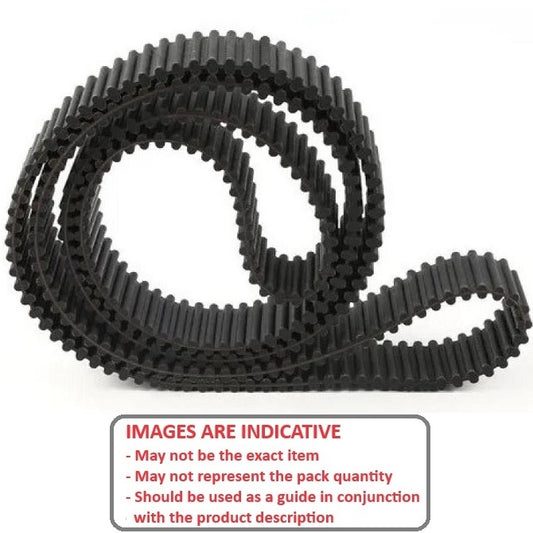

Belts - Timing 3.000mm Pitch - GT - 15mm Wide - Double Sided

Belts -> Timing 3.000mm Pitch -> GT -> 15mm Wide -> Double Sided

There are 5 products in the sub-categories of Belts - Timing 3.000mm Pitch - GT - 15mm Wide - Double Sided. Browse the Belts - Timing 3.000mm Pitch - GT - 15mm Wide - Double Sided products table.

Category Details

A selection of Double Sided 15mm Wide GT Timing 3.000mm Pitch Belts. GT2 and GT3 Series Metric Timing Belts.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Height (H) - 1.22mm
  • Belt Height (W) - 3.2mm
  • GT3 replaces GT2 as GT2 stock is depleted
  • Pitch (P) - 3mm

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Timing 3.000mm Pitch - GT - 15mm Wide - Double Sided category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Number of Teeth
216

Length
648
mm

(Equiv. 25.512 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 3.000mm Pitch Belts - 216 tooth - 648x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0150-NFB
Timing 3mm Pitch Belts - 216 tooth - 648x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$136.23 AUD
$136.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth Length Width Indicative
Number of Teeth
216

Length
648
mm

(Equiv. 25.512 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Timing 3.000mm Pitch Belts - 216 tooth - 648x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0150-NFB
Timing 3mm Pitch Belts - 216 tooth - 648x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$136.23 AUD
$136.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
265

Length
795
mm

(Equiv. 31.299 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 3.000mm Pitch Belts - 265 tooth - 795x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0150-NFB
Timing 3mm Pitch Belts - 265 tooth - 795x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$141.05 AUD
$169.25 AUD $141.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
265

Length
795
mm

(Equiv. 31.299 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Timing 3.000mm Pitch Belts - 265 tooth - 795x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0150-NFB
Timing 3mm Pitch Belts - 265 tooth - 795x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$141.05 AUD
$169.25 AUD $141.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
315

Length
945
mm

(Equiv. 37.205 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 3.000mm Pitch Belts - 315 tooth - 945x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0150-NFB
Timing 3mm Pitch Belts - 315 tooth - 945x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.59 AUD
$201.11 AUD $167.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
315

Length
945
mm

(Equiv. 37.205 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Timing 3.000mm Pitch Belts - 315 tooth - 945x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0150-NFB
Timing 3mm Pitch Belts - 315 tooth - 945x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.59 AUD
$201.11 AUD $167.59 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
445

Length
1335
mm

(Equiv. 52.559 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 3.000mm Pitch Belts - 445 tooth - 1335x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0150-NFB
Timing 3.000mm Pitch Belts - 445 tooth - 1335x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$236.23 AUD
$283.47 AUD $236.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
445

Length
1335
mm

(Equiv. 52.559 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Timing 3.000mm Pitch Belts - 445 tooth - 1335x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0150-NFB
Timing 3.000mm Pitch Belts - 445 tooth - 1335x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$236.23 AUD
$283.47 AUD $236.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
512

Length
1536
mm

(Equiv. 60.472 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 3.000mm Pitch Belts - 512 tooth - 1536x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0150-NFB
Timing 3.000mm Pitch Belts - 512 tooth - 1536x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$272.14 AUD
$326.56 AUD $272.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
512

Length
1536
mm

(Equiv. 60.472 in.)
Width
15.0
mm

(Equiv. 0.591 in.)
Timing 3.000mm Pitch Belts - 512 tooth - 1536x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 2370 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0150-NFB
Timing 3.000mm Pitch Belts - 512 tooth - 1536x15 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Belt
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$272.14 AUD
$326.56 AUD $272.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
