Belts - Posi-Drive - 4.00 mm Circular Pitch Single Core

Belts -> Posi-Drive -> 4.00 mm Circular Pitch Single Core

There is only 1 product in the sub-categories of Belts - Posi-Drive - 4.00 mm Circular Pitch Single Core. Browse the Belts - Posi-Drive - 4.00 mm Circular Pitch Single Core products table.

Category Details

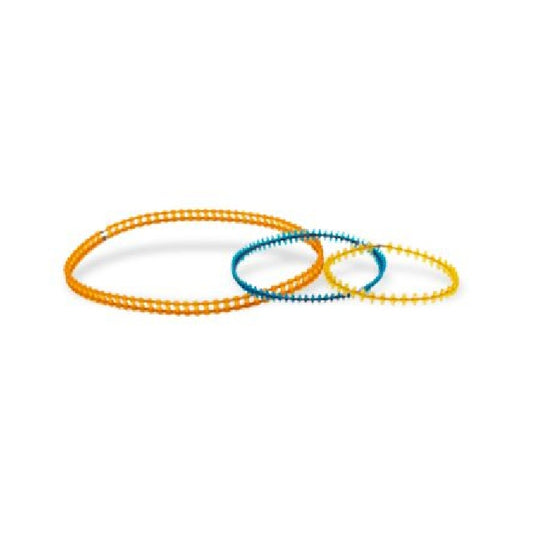

A selection of 4.00 mm Circular Pitch Single Core Posi-Drive Belts. Same as US 20 Pitch - Use with Posi-Drive Pulleys.

  • Posi-drive belts are a discontined line, but there is limited stock available.
  • These are designed to operate on special posi-drive pulleys, also discontinued.
  • Posi-drive pulleys and belts are still available on special order. All items are priced to quit.
  • Use Single Core with Posi-Drive Pulleys.
  • 3.990mm Circular Pitch. Same as US 20 Pitch.

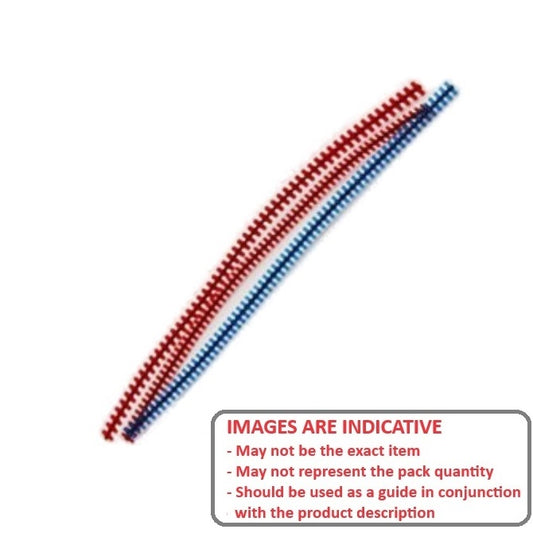

  • Posi-drive material lengths in this category can not be joined by the customer as special equipment is required.
  • Material lengths are used in reciprocating applications and not meant to be joined

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Posi-Drive - 4.00 mm Circular Pitch Single Core category on the Small Parts & Bearings online store.
Pitch Length Max Tension Max Speed Loaded (Mtr/Min) Min. Teeth in Mesh Min. Pulley Diameter Belt Type Indicative
Pitch Length
438.9
mm

(Equiv. 17.28 in.)
Max Tension
4.6
kg
Max Speed Loaded (Mtr/Min)
183

Min. Teeth in Mesh
6
Min. Pulley Diameter
19.1
mm
Belt Type
Single Core
Posi-Drive Belts - 438.9 mm - 4.6 kg - 183 4.00 mm Circular Pitch Single Core - Molded Polyurethane / Stainless Steel
Material: Molded Polyurethane / Stainless Steel    Teeth: 110    Max Speed Unloaded (Mtr/Min): 335
Deleted Item. Available while stocks last.
Part Number: PDBS040-0439-S (2 Pcs)
Posi-Drive Belts - 438.9 mm - 4.6 kg - 183 4.00 mm Circular Pitch Single Core - Molded Polyurethane / Stainless Steel Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Pitch Length Max Tension Max Speed Loaded (Mtr/Min) Min. Teeth in Mesh Indicative
Pitch Length
438.9
mm

(Equiv. 17.28 in.)
Max Tension
4.6
kg
Max Speed Loaded (Mtr/Min)
183

Min. Teeth in Mesh
6
Posi-Drive Belts - 438.9 mm - 4.6 kg - 183 4.00 mm Circular Pitch Single Core - Molded Polyurethane / Stainless Steel
Material: Molded Polyurethane / Stainless Steel    Min. Pulley Diameter: 19.1 mm    Belt Type: Single Core    Teeth: 110    Max Speed Unloaded (Mtr/Min): 335
Deleted Item. Available while stocks last.
Part Number: PDBS040-0439-S (2 Pcs)
Posi-Drive Belts - 438.9 mm - 4.6 kg - 183 4.00 mm Circular Pitch Single Core - Molded Polyurethane / Stainless Steel Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
