Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide

Belts -> Inch Timing -> 2.032mm Pitch MXL -> 7.9mm Wide

There is only 1 product in the sub-categories of Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide. Browse the Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide products table.

Category Details

A selection of 7.9mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 7.93mm (5/16 inch) widths +/- 0.2mm

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm
  • Tooth Height (H) - 0.46mm
  • Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
  • Pitch (P) - 2.032mm (0.08 inch)

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative

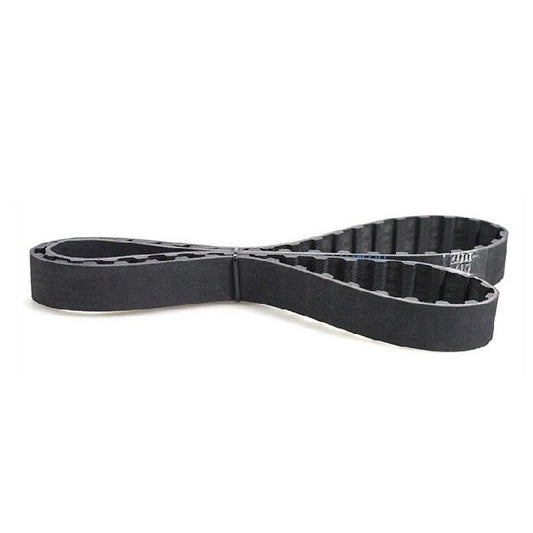

Inch Timing Belts - 295 tooth - 599.44x7.9 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
295

Length
599.44
mm

(Equiv. 23.6 in.)
Width
7.9
mm

(Equiv. 0.311 in.)
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 295 tooth - 599.44x7.9 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Deleted Item. Available while stocks last.
Part Number: B-MXL-0295-0079-NFB (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative

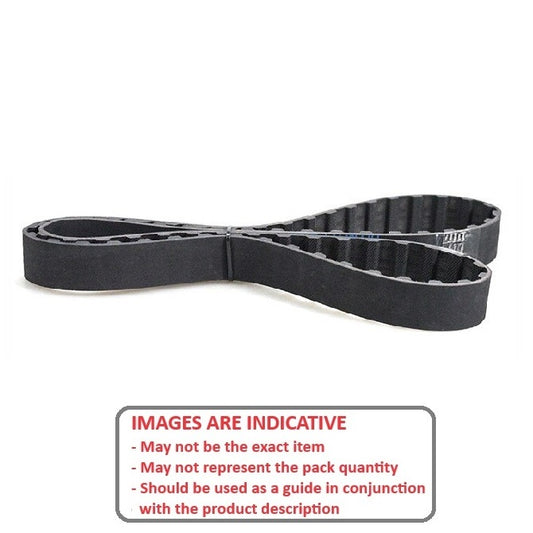

Inch Timing Belts - 295 tooth - 599.44x7.9 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
295

Length
599.44
mm

(Equiv. 23.6 in.)
Width
7.9
mm

(Equiv. 0.311 in.)
Inch Timing Belts - 295 tooth - 599.44x7.9 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Deleted Item. Available while stocks last.
Part Number: B-MXL-0295-0079-NFB (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
