Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Double Sided

Belts -> Inch Timing -> 2.032mm Pitch MXL -> 6.4mm Wide -> Double Sided

There is only 1 product in the sub-categories of Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Double Sided. Browse the Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Double Sided products table.

Category Details

A selection of Double Sided 6.4mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 6.35mm (1/4 inch) widths +/- 0.2mm

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm
  • Tooth Height (H) - 0.51mm
  • Belt Height (W) - 1.52mm - Corner Radii ( r ) - 0.13mm
  • Pitch (P) - 2.032mm (0.08 inch)

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Double Sided category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Number of Teeth
236

Length
479.552
mm

(Equiv. 18.88 in.)
Width
6.4
mm

(Equiv. 0.252 in.)
Reinforcement
Kevlar
Appearance
Amber

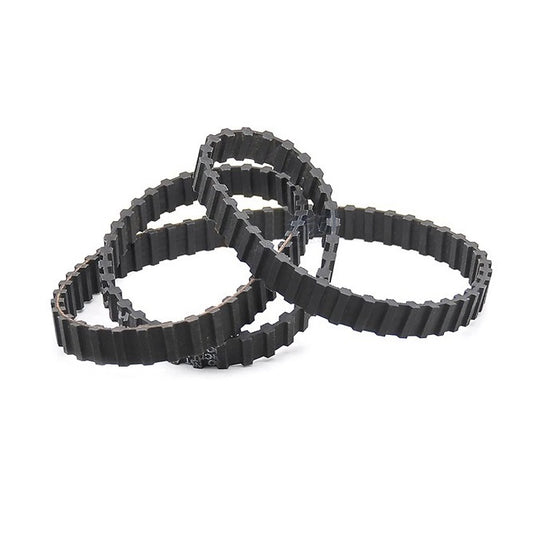

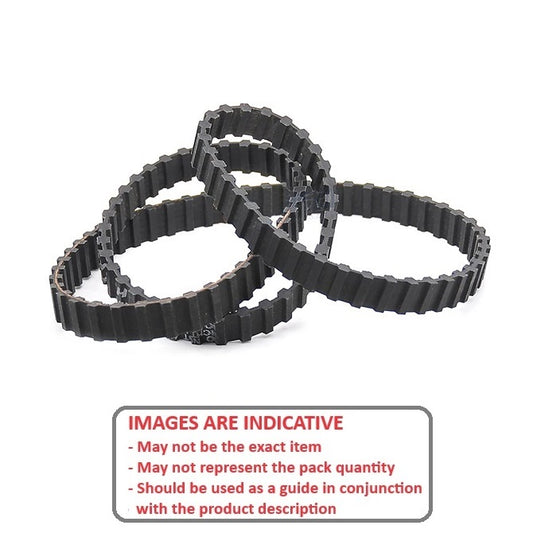

Inch Timing Belts - 236 tooth - 479.552x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Breaking Strength: 1156 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 82 Deg C    Tooth Angle (A): 40 °
Part Number: BD-MXL-0236-0064-PKA
Inch Timing Belts - 236 tooth - 479.552x6.4 mm 2.032mm Pitch MXL - Polyurethane with Kevlar Cords Belt
39 Available Now | Item Discontinued - Up to 39 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

39 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative
Number of Teeth
236

Length
479.552
mm

(Equiv. 18.88 in.)
Width
6.4
mm

(Equiv. 0.252 in.)
Inch Timing Belts - 236 tooth - 479.552x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Reinforcement: Kevlar    Appearance: Amber    Breaking Strength: 1156 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 82 Deg C    Tooth Angle (A): 40 °
Part Number: BD-MXL-0236-0064-PKA
Inch Timing Belts - 236 tooth - 479.552x6.4 mm 2.032mm Pitch MXL - Polyurethane with Kevlar Cords Belt
39 Available Now | Item Discontinued - Up to 39 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

39 Available Now. These are priced to quit. Please contact us for a quote if you require more.
