Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Clean

Belts -> Inch Timing -> 2.032mm Pitch MXL -> 3.2mm Wide -> Clean

There is only 1 product in the sub-categories of Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Clean. Browse the Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Clean products table.

Category Details

A selection of Clean 3.2mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. Timing Belts in 2.032mm or 0.08 inch pitch.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • The TruMotion(R) belt construction utilizes a cream-colored polymer compound reinforced with fiberglass tensile cord and a clean polymer-free nylon tooth facing.
  • The belt can withstand high and low temperature ranges of -40oC to +90oC, has a virtually dust-free operation and is non-marking.
  • The belt also has a high flex life and resistance to elongation.
  • TruMotion(R) belts have a durable wear surface for longer life and are RoHS compliant.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength. RoHs compliant.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Clean category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Number of Teeth
315

Length
640.08
mm

(Equiv. 25.2 in.)
Width
3.2
mm

(Equiv. 0.126 in.)
Reinforcement
Fibreglass
Appearance
Cream

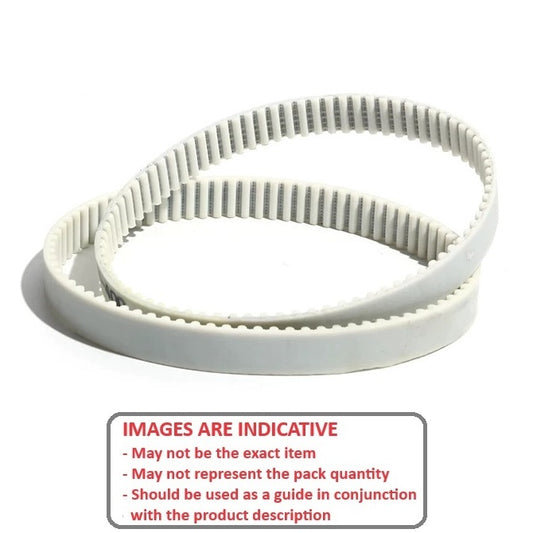

Inch Timing Belts - 315 tooth - 640.08x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 216 N    Min Temperature (C): -40 Deg C    Max Temperature (C): 90 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0315-0032-NFC
Inch Timing Belts - 315 tooth - 640.08x3.2 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative
Number of Teeth
315

Length
640.08
mm

(Equiv. 25.2 in.)
Width
3.2
mm

(Equiv. 0.126 in.)

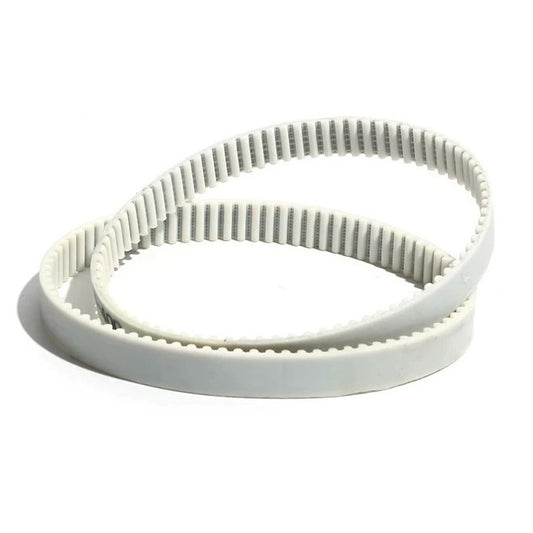

Inch Timing Belts - 315 tooth - 640.08x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Cream    Breaking Strength: 216 N    Min Temperature (C): -40 Deg C    Max Temperature (C): 90 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0315-0032-NFC
Inch Timing Belts - 315 tooth - 640.08x3.2 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
