Bearings - Thrust Ball - Grooved - ZRO2 Ceramic

Bearings -> Thrust Ball -> Grooved -> ZRO2 Ceramic

There are 6 products in the sub-categories of Bearings - Thrust Ball - Grooved - ZRO2 Ceramic. Browse the Bearings - Thrust Ball - Grooved - ZRO2 Ceramic products table.

Category Details

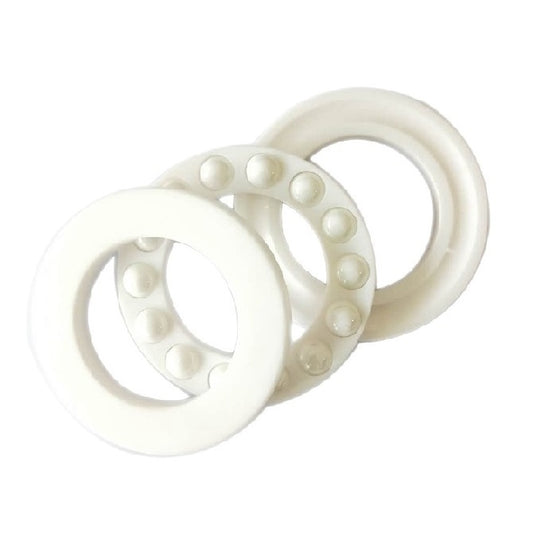

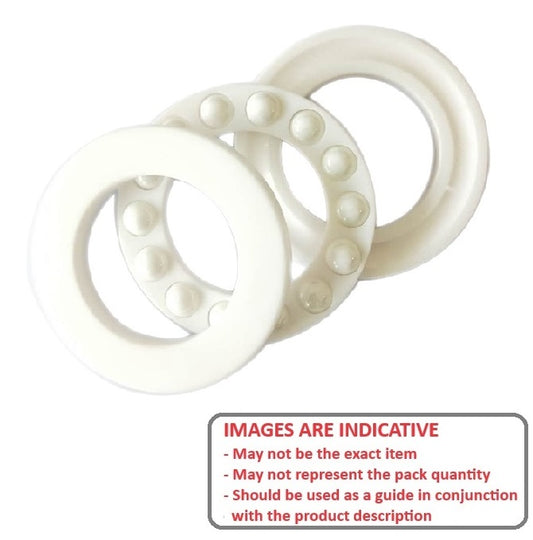

A selection of ZRO2 Ceramic Grooved Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type. Excellent performance in electrical and magnetism sensitive applications. Full ceramic silicon nitride.

  • Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
  • Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
  • An expanded range may be available on special order. Please enquire.
  • These bearings are designed so that when one ring turns, the other remains stationary.
  • Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
  • Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
  • Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Thrust Ball - Grooved - ZRO2 Ceramic category on the Small Parts & Bearings online store.
Shaft Diameter (d1) O.D. (D1) Thickness (T) Bore (d2) OD (D2) Dynamic Load Capacity Indicative
Thrust Ball Bearings - 4x9x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
4.000
mm
O.D. (D1)
9.000
mm
Thickness (T)
4.000
mm
Bore (d2)
4.200
mm
OD (D2)
8.800
mm
Thrust Ball Bearings - 4x9x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$125.32 AUD
$125.32 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (d1) O.D. (D1) Thickness (T) Bore (d2) Indicative
Thrust Ball Bearings - 4x9x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
4.000
mm
O.D. (D1)
9.000
mm
Thickness (T)
4.000
mm
Bore (d2)
4.200
mm
Thrust Ball Bearings - 4x9x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 8.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$125.32 AUD
$125.32 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 4x10x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
4.000
mm
O.D. (D1)
10.000
mm
Thickness (T)
4.000
mm
Bore (d2)
4.200
mm
OD (D2)
9.800
mm
Thrust Ball Bearings - 4x10x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$125.32 AUD
$125.32 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 4x10x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
4.000
mm
O.D. (D1)
10.000
mm
Thickness (T)
4.000
mm
Bore (d2)
4.200
mm
Thrust Ball Bearings - 4x10x4 mm / 4.2 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 9.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$125.32 AUD
$125.32 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 20x35x10 mm / 21 mm Grooved - Ceramic Zirconia ZrO2 Bearing
Shaft Diameter (d1)
20.000
mm
O.D. (D1)
35.000
mm
Thickness (T)
10.000
mm
Bore (d2)
21.000
mm
OD (D2)
35.000
mm
Thrust Ball Bearings - 20x35x10 mm / 21 mm Grooved - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 (Each)
1 Available Now | Further orders can be expected around Wed, Aug 12, 2026
$20.86 AUD
$46.55 AUD $20.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Thrust Ball Bearings - 20x35x10 mm / 21 mm Grooved - Ceramic Zirconia ZrO2 Bearing
Shaft Diameter (d1)
20.000
mm
O.D. (D1)
35.000
mm
Thickness (T)
10.000
mm
Bore (d2)
21.000
mm
Thrust Ball Bearings - 20x35x10 mm / 21 mm Grooved - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    OD (D2): 35.000 mm    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 (Each)
1 Available Now | Further orders can be expected around Wed, Aug 12, 2026
$20.86 AUD
$46.55 AUD $20.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thrust Ball Bearings - 30x47x11 mm / 32 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
30.000
mm
O.D. (D1)
47.000
mm
Thickness (T)
11.000
mm
Bore (d2)
32.000
mm
OD (D2)
47.000
mm
Thrust Ball Bearings - 30x47x11 mm / 32 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$52.77 AUD
$95.97 AUD $52.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 30x47x11 mm / 32 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
30.000
mm
O.D. (D1)
47.000
mm
Thickness (T)
11.000
mm
Bore (d2)
32.000
mm
Thrust Ball Bearings - 30x47x11 mm / 32 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 47.000 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$52.77 AUD
$95.97 AUD $52.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 40x60x13 mm / 42 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
40.000
mm
O.D. (D1)
60.000
mm
Thickness (T)
13.000
mm
Bore (d2)
42.000
mm
OD (D2)
60.000
mm
Thrust Ball Bearings - 40x60x13 mm / 42 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$146.86 AUD
$146.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 40x60x13 mm / 42 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
40.000
mm
O.D. (D1)
60.000
mm
Thickness (T)
13.000
mm
Bore (d2)
42.000
mm
Thrust Ball Bearings - 40x60x13 mm / 42 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 60.000 mm    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$146.86 AUD
$146.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 60x85x17 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
60.000
mm
O.D. (D1)
85.000
mm
Thickness (T)
17.000
mm
Thrust Ball Bearings - 60x85x17 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$1,426.86 AUD
$1,426.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 60x85x17 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races Bearing
Shaft Diameter (d1)
60.000
mm
O.D. (D1)
85.000
mm
Thickness (T)
17.000
mm
Thrust Ball Bearings - 60x85x17 mm Grooved - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 12, 2026
$1,426.86 AUD
$1,426.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
