Bearings - Tapered Roller Cup

Bearings -> Tapered Roller Cup

There are 5 products in the sub-categories of Bearings - Tapered Roller Cup. Browse the Bearings - Tapered Roller Cup products table.

Category Details

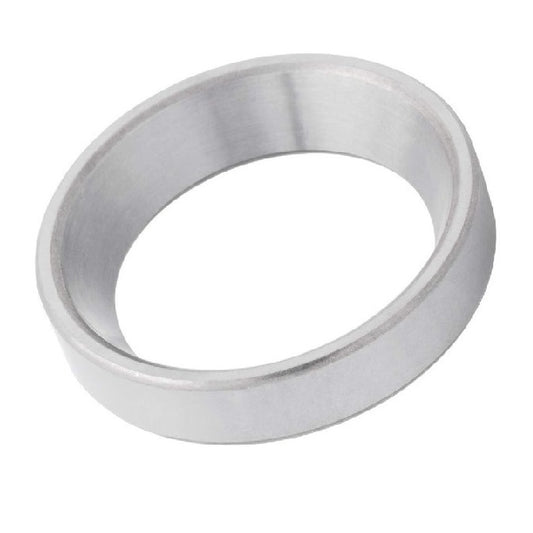

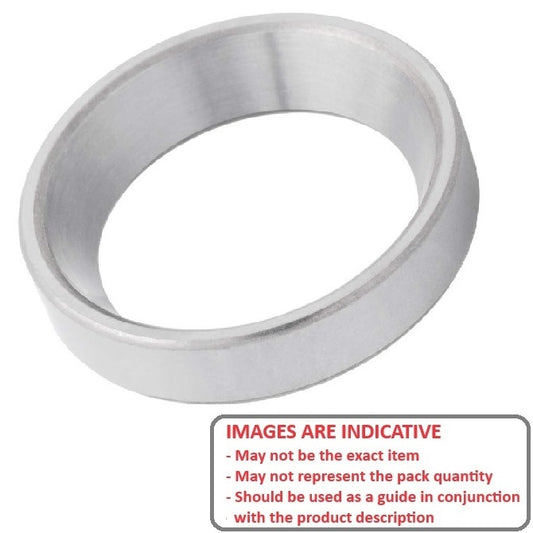

A selection of Tapered Roller Cup Bearings. Replacements for existing tapered roller cups (outer part). Match with part number on your existing bearing. It is recommended that you change both cup and cone whenever possible.

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Match the cup with the appropriate cone as listed in the tables. Sometimes there will be a range of cone to suit. Be sure to check the dimesions thoroughly.
  • The cone is the inner part of the bearing, and it contains the rollers. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Tapered Roller Cup category on the Small Parts & Bearings online store.
Outside Diameter Cup Width Matching Cones rs1 min rs2 min Indicative
Outside Diameter
49.225
mm

(Equiv. 1.938 in.)
Cup Width
17.462
mm

(Equiv. 0.687 in.)
Matching Cones
09067, 09074, 09078

rs1 min
1.300
mm
rs2 min
1.500
mm
Tapered Roller Cup Bearings - 49.225x17.462 mm - 09067, 09074, 09078 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09196
Tapered Roller Cup Bearings - 49.225x17.462 mm - 09067, 09074, 09078 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$16.32 AUD
$19.58 AUD $16.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter Cup Width Matching Cones Indicative
Outside Diameter
49.225
mm

(Equiv. 1.938 in.)
Cup Width
17.462
mm

(Equiv. 0.687 in.)
Matching Cones
09067, 09074, 09078

Tapered Roller Cup Bearings - 49.225x17.462 mm - 09067, 09074, 09078 - Chrome Steel
Material: Chrome Steel    rs1 min: 1.300 mm    rs2 min: 1.500 mm    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09196
Tapered Roller Cup Bearings - 49.225x17.462 mm - 09067, 09074, 09078 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$16.32 AUD
$19.58 AUD $16.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
93.264
mm

(Equiv. 3.672 in.)
Cup Width
23.812
mm

(Equiv. 0.937 in.)
rs1 min
3.500
mm
rs2 min
3.300
mm
Tapered Roller Cup Bearings - 93.264x23.812 mm - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3720
Tapered Roller Cup Bearings - 93.264x23.812 mm - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$23.32 AUD
$27.98 AUD $23.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
93.264
mm

(Equiv. 3.672 in.)
Cup Width
23.812
mm

(Equiv. 0.937 in.)
Tapered Roller Cup Bearings - 93.264x23.812 mm - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3720
Tapered Roller Cup Bearings - 93.264x23.812 mm - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$23.32 AUD
$27.98 AUD $23.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
122.238
mm

(Equiv. 4.813 in.)
Cup Width
29.718
mm

(Equiv. 1.17 in.)
Matching Cones
HM212047

rs1 min
7.000
mm
rs2 min
3.300
mm
Tapered Roller Cup Bearings - 122.238x29.718 mm - HM212047 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212011
Tapered Roller Cup Bearings - 122.238x29.718 mm - HM212047 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$35.95 AUD
$43.15 AUD $35.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
122.238
mm

(Equiv. 4.813 in.)
Cup Width
29.718
mm

(Equiv. 1.17 in.)
Matching Cones
HM212047

Tapered Roller Cup Bearings - 122.238x29.718 mm - HM212047 - Chrome Steel
Material: Chrome Steel    rs1 min: 7.000 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212011
Tapered Roller Cup Bearings - 122.238x29.718 mm - HM212047 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$35.95 AUD
$43.15 AUD $35.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
146.050
mm

(Equiv. 5.75 in.)
Cup Width
31.750
mm

(Equiv. 1.25 in.)
Matching Cones
655, 661, 663

rs1 min
3.500
mm
rs2 min
3.300
mm
Tapered Roller Cup Bearings - 146.05x31.75 mm - 655, 661, 663 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 188000 Cr (N)    Basic Static Load Rating: 260000 Cor (N)    Limiting Speed with Grease: 2500 RPM
Part Number: 653
Tapered Roller Cup Bearings - 146.05x31.75 mm - 655, 661, 663 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$58.86 AUD
$70.64 AUD $58.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
146.050
mm

(Equiv. 5.75 in.)
Cup Width
31.750
mm

(Equiv. 1.25 in.)
Matching Cones
655, 661, 663

Tapered Roller Cup Bearings - 146.05x31.75 mm - 655, 661, 663 - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 188000 Cr (N)    Basic Static Load Rating: 260000 Cor (N)    Limiting Speed with Grease: 2500 RPM
Part Number: 653
Tapered Roller Cup Bearings - 146.05x31.75 mm - 655, 661, 663 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$58.86 AUD
$70.64 AUD $58.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
147.000
mm

(Equiv. 5.787 in.)
Cup Width
32.500
mm

(Equiv. 1.28 in.)
Matching Cones
HM218248

rs1 min
7.000
mm
rs2 min
3.500
mm
Tapered Roller Cup Bearings - 147x32.5 mm - HM218248 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218210
Tapered Roller Cup Bearings - 147x32.5 mm - HM218248 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$50.14 AUD
$60.16 AUD $50.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Outside Diameter
147.000
mm

(Equiv. 5.787 in.)
Cup Width
32.500
mm

(Equiv. 1.28 in.)
Matching Cones
HM218248

Tapered Roller Cup Bearings - 147x32.5 mm - HM218248 - Chrome Steel
Material: Chrome Steel    rs1 min: 7.000 mm    rs2 min: 3.500 mm    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218210
Tapered Roller Cup Bearings - 147x32.5 mm - HM218248 - Chrome Steel Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 07, 2025
$50.14 AUD
$60.16 AUD $50.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
