Bearings - Self Clinching - Self Aligning - Acetal

Bearings -> Self Clinching -> Self Aligning -> Acetal

There is only 1 product in the sub-categories of Bearings - Self Clinching - Self Aligning - Acetal. Browse the Bearings - Self Clinching - Self Aligning - Acetal products table.

Category Details

A selection of Acetal Self Aligning Self Clinching Bearings. Spyraflo acetal bearings in a special steel self-clinching housing. Refer technical sheets linked at bottom of tables.

  • A self-clinching bearing is a type of bearing that is designed to be installed directly into a panel or housing without the need for additional fasteners or hardware.
  • These bearings are often used in sheet metal or thin-walled structures where it may be challenging to use traditional fastening methods.
  • Self-clinching bearings have features that allow them to be securely mounted in place by applying pressure, eliminating the need for welding, adhesives, or external fasteners. All items are priced to quit.
  • See links at bottom of web page for more information
  • +/- 5% Static Alignment
  • See animation link at bottom of web page
  • Panel material no harder than RB65/RB75
  • Panel hole to be punched or machined to size A (+0.07/-0.00mm)

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Self Clinching - Self Aligning - Acetal category on the Small Parts & Bearings online store.
Nominal Shaft Size Min. Panel Hole (A) Overall Width (D) Min to Max Shaft Dia. Max Speed Min. Panel Thickness (B) Indicative
Nominal Shaft Size
19.050
mm

(Equiv. 0.75 in.)
Min. Panel Hole (A)
31.75
mm

(Equiv. 1.25 in.)
Min to Max Shaft Dia.
19.075 to 19.126
mm
Max Speed
510
RPM
Min. Panel Thickness (B)
2.29
mm

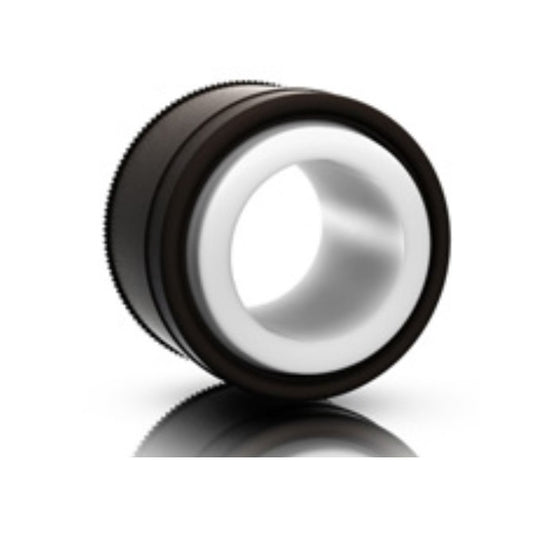

Self Clinching Bearings - 19.05x31.75
Material: Acetal in Carbon Steel    Min. Distance To Edge: 19.05 mm    Flange Diameter (C): 33.02 mm    Max. Radial Dynamic Load: 2847 N
Part Number: FSD-750
Self Clinching Bearings - 19.05x31.75 - - Self Aligning - Acetal in Carbon Steel Bearing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size Min. Panel Hole (A) Overall Width (D) Min to Max Shaft Dia. Indicative
Nominal Shaft Size
19.050
mm

(Equiv. 0.75 in.)
Min. Panel Hole (A)
31.75
mm

(Equiv. 1.25 in.)
Min to Max Shaft Dia.
19.075 to 19.126
mm

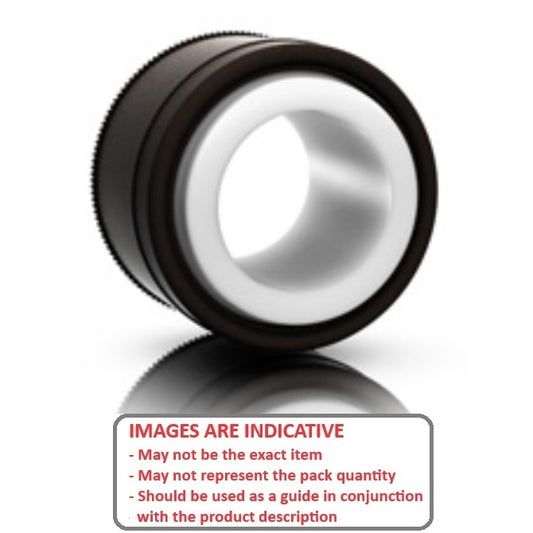

Self Clinching Bearings - 19.05x31.75
Material: Acetal in Carbon Steel    Max Speed: 510 RPM    Min. Panel Thickness (B): 2.29 mm    Min. Distance To Edge: 19.05 mm    Flange Diameter (C): 33.02 mm    Max. Radial Dynamic Load: 2847 N
Part Number: FSD-750
Self Clinching Bearings - 19.05x31.75 - - Self Aligning - Acetal in Carbon Steel Bearing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
