Bearings - Plastic - Acetal - Single Row - 302 Stainless Balls

Bearings -> Plastic -> Acetal -> Single Row -> 302 Stainless Balls

There is only 1 product in the sub-categories of Bearings - Plastic - Acetal - Single Row - 302 Stainless Balls. Browse the Bearings - Plastic - Acetal - Single Row - 302 Stainless Balls products table.

Category Details

A selection of 302 Stainless Balls Single Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from Acetal - Balls made from 302 Stainless Steel - Cages from Acetal or Nylon.
  • Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
  • Temperature Range - Minus 30 oC to 100 oC Continuous.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Plastic - Acetal - Single Row - 302 Stainless Balls category on the Small Parts & Bearings online store.
ID (d) OD (D) Width (B) Flange Diameter Flange Thickness Inner Ring Width (Bn) Indicative
ID (d)
12.000
mm
+ 0.076 / - 0.000
(Equiv. 0.472 in.)
OD (D)
37.000
mm
+ 0.000 / - 0.102
(Equiv. 1.457 in.)
Width (B)
12.000
mm
+ 0.127 / - 0.000
(Equiv. 0.472 in.)

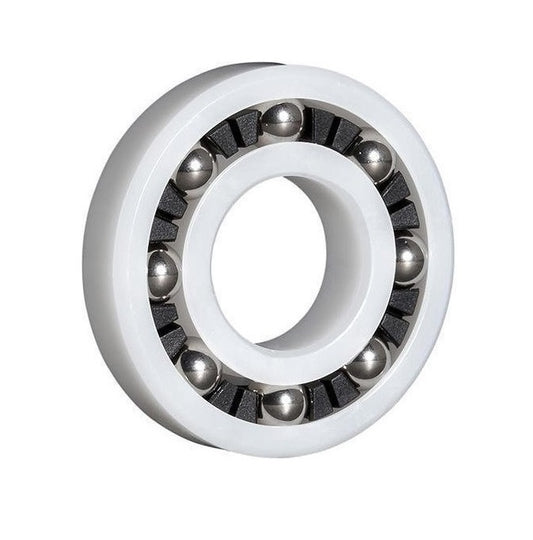

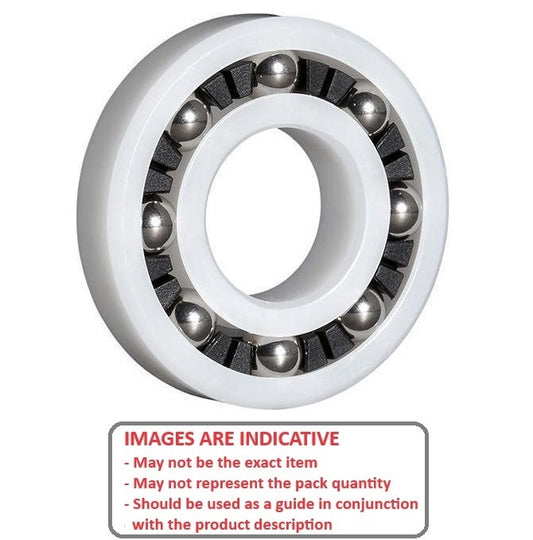

Plastic Bearings - 12x37x12 mm - Acetal with Stainless 302 Balls
Material: Acetal with Stainless 302 Balls    Max RPM in Air: 1069    Notes: Unlubricated    Type: Radial    Dynamic Load Rating: 30.8 Kg    Static Load Rating: 20.5 Kg
Part Number: P-6301-AS2
Plastic Bearings - 12x37x12 mm - Acetal with Stainless 302 Balls Bearing
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID (d) OD (D) Width (B) Flange Diameter Indicative
ID (d)
12.000
mm
+ 0.076 / - 0.000
(Equiv. 0.472 in.)
OD (D)
37.000
mm
+ 0.000 / - 0.102
(Equiv. 1.457 in.)
Width (B)
12.000
mm
+ 0.127 / - 0.000
(Equiv. 0.472 in.)
Plastic Bearings - 12x37x12 mm - Acetal with Stainless 302 Balls
Material: Acetal with Stainless 302 Balls    Max RPM in Air: 1069    Notes: Unlubricated    Type: Radial    Dynamic Load Rating: 30.8 Kg    Static Load Rating: 20.5 Kg
Part Number: P-6301-AS2
Plastic Bearings - 12x37x12 mm - Acetal with Stainless 302 Balls Bearing
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
