Collection: Bearings - Pivot - Without Inner Ring

Bearings (With Images)

Pivot

Flanged
Without Inner Ring

4 Products in this selection

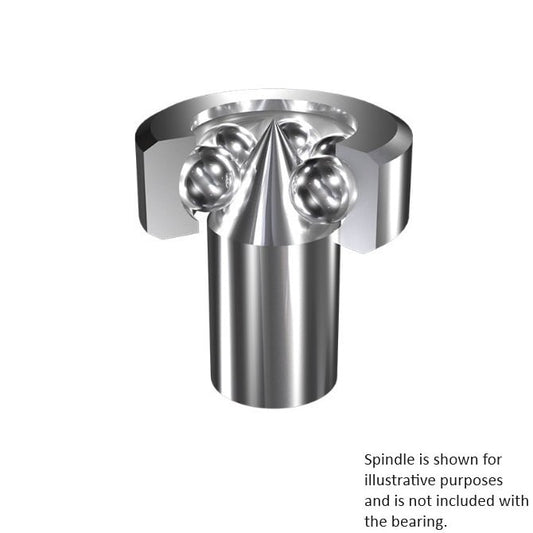

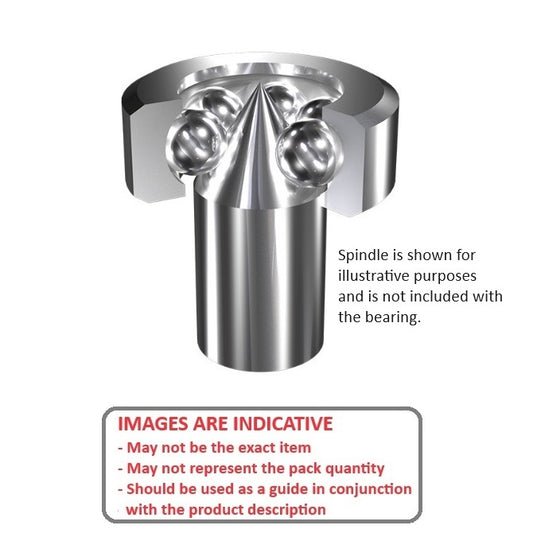

Spindle is not supplied with these bearings

Additional resources:

A more concise listing may be found on the Smallparts store at Bearings - Pivot - Without Inner Ring. Smallparts promote the most popular MBA products.

Contact Point (d)	OD (D)	Width (C)	r (min)	Static Load Rating (Cor)	Dynamic Load Rating (Cr)
Contact Point (d) 1.60 mm _{(0.063 in.)}	OD (D) 6.00 mm _{(0.236 in.)}	Width (C) 2.5 mm _{(0.098 in.)}	r (min) 0.15 mm	Static Load Rating (Cor) 1.0 kgf	Dynamic Load Rating (Cr) 11.0 kgf
Material: Chrome Steel Minimum Shaft Diameter (d1): 1.9 mm
Part Number: BCF6 Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel 6 Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each
Contact Point (d)	OD (D)	Width (C)	r (min)	Indicative Image
Contact Point (d) 1.60 mm _{(0.063 in.)}	OD (D) 6.00 mm _{(0.236 in.)}	Width (C) 2.5 mm _{(0.098 in.)}	r (min) 0.15 mm
Material: Chrome Steel Static Load Rating (Cor): 1.0 kgf Dynamic Load Rating (Cr): 11.0 kgf Minimum Shaft Diameter (d1): 1.9 mm
Part Number: BCF6 Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel 6 Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
BCF6 --- Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel BCF6 --- Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 6 Available Now
Contact Point (d) 3.13 mm _{(0.123 in.)}	OD (D) 9.00 mm _{(0.354 in.)}	Width (C) 4.0 mm _{(0.157 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 3.0 kgf	Dynamic Load Rating (Cr) 28.0 kgf
Material: Chrome Steel Minimum Shaft Diameter (d1): 3.5 mm
Part Number: BCF9 Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel 48 Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each
Contact Point (d) 3.13 mm _{(0.123 in.)}	OD (D) 9.00 mm _{(0.354 in.)}	Width (C) 4.0 mm _{(0.157 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 3.0 kgf Dynamic Load Rating (Cr): 28.0 kgf Minimum Shaft Diameter (d1): 3.5 mm
Part Number: BCF9 Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel 48 Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each View the product page first if you are unsure.
BCF9 --- Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel BCF9 --- Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 48 Available Now
Contact Point (d) 3.13 mm _{(0.123 in.)}	OD (D) 10.00 mm _{(0.394 in.)}	Width (C) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 3.0 kgf	Dynamic Load Rating (Cr) 28.0 kgf
Material: Chrome Steel Minimum Shaft Diameter (d1): 3.5 mm
Part Number: BCF10 (50 Pcs) Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $432.41 AUD Regular price Sale price $432.41 AUD Unit price per Per 50
Contact Point (d) 3.13 mm _{(0.123 in.)}	OD (D) 10.00 mm _{(0.394 in.)}	Width (C) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 3.0 kgf Dynamic Load Rating (Cr): 28.0 kgf Minimum Shaft Diameter (d1): 3.5 mm
Part Number: BCF10 (50 Pcs) Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $432.41 AUD Regular price Sale price $432.41 AUD Unit price per Per 50 View the product page first if you are unsure.
BCF10 (50 Pcs) --- Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel BCF10 (50 Pcs) --- Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Regular price $432.41 AUD Regular price Sale price $432.41 AUD Unit price per Out of stock! Backorder Now
Contact Point (d) 5.16 mm _{(0.203 in.)}	OD (D) 13.00 mm _{(0.512 in.)}	Width (C) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 6.0 kgf	Dynamic Load Rating (Cr) 45.0 kgf
Material: Chrome Steel Minimum Shaft Diameter (d1): 6.8 mm
Part Number: BCF13 Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel 2 Available Immediately \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per Each
Contact Point (d) 5.16 mm _{(0.203 in.)}	OD (D) 13.00 mm _{(0.512 in.)}	Width (C) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 6.0 kgf Dynamic Load Rating (Cr): 45.0 kgf Minimum Shaft Diameter (d1): 6.8 mm
Part Number: BCF13 Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel 2 Available Immediately \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per Each
BCF13 --- Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel Sale BCF13 --- Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per 2 Available Now Sale
