| Shaft Diameter (d) | OD (D) | Width (B) | Basic Dynamic Load Rating | Basic Static Load Rating | Limiting Speed Grease |

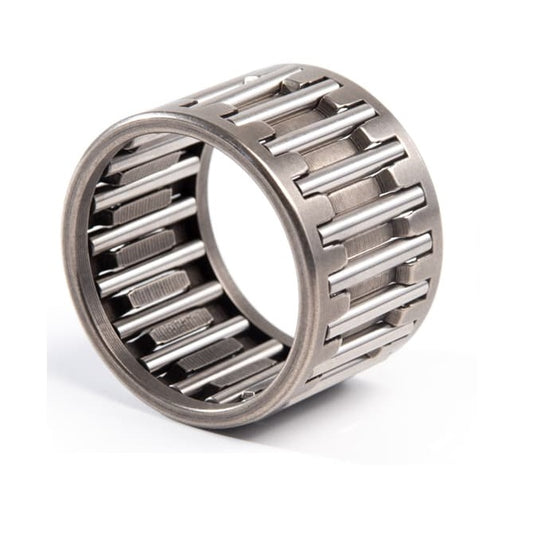

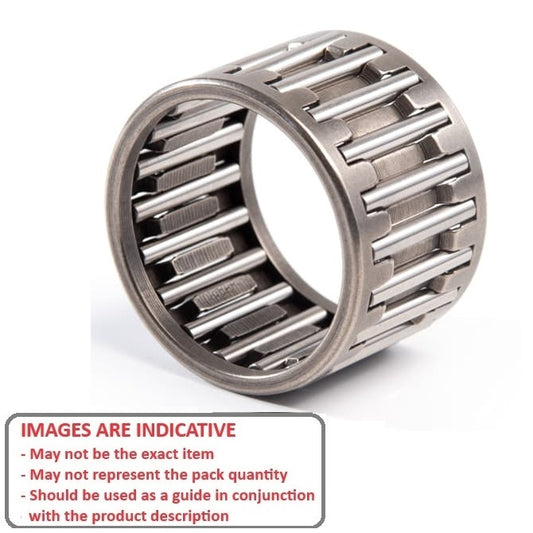

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
14.500
mm (Equiv. 0.571 in.) |
Basic Dynamic Load Rating
600
Kgf |
Basic Static Load Rating
750
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0145-HT (100 Pcs)
Needle Roller without Inner Ring Bearings - 12x15x14.5 mm / 600 Kgf Cage Type - CSteel Bearing Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$365.77 AUD
Regular price
Unit price
per
Per 100
|
||||||
| Shaft Diameter (d) | OD (D) | Width (B) | Basic Dynamic Load Rating |
Indicative Image |
||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
14.500
mm (Equiv. 0.571 in.) |
Basic Dynamic Load Rating
600
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 750 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0145-HT (100 Pcs)
Needle Roller without Inner Ring Bearings - 12x15x14.5 mm / 600 Kgf Cage Type - CSteel Bearing Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$365.77 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
670
Kgf |
Basic Static Load Rating
950
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0150-HT
Needle Roller without Inner Ring Bearings - 12x15x15 mm / 670 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
670
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 950 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0150-HT
Needle Roller without Inner Ring Bearings - 12x15x15 mm / 670 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
670
Kgf |
Basic Static Load Rating
965
Kgf |
Limiting Speed Grease
16000
RPM |
|
| Material: CSteel Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0150-ST
Needle Roller without Inner Ring Bearings - 12x15x15 mm / 670 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
670
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 965 Kgf Limiting Speed Grease: 16000 RPM Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0150-ST
Needle Roller without Inner Ring Bearings - 12x15x15 mm / 670 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
17.500
mm (Equiv. 0.689 in.) |
Basic Dynamic Load Rating
710
Kgf |
Basic Static Load Rating
1040
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0175-HT
Needle Roller without Inner Ring Bearings - 12x15x17.5 mm / 710 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
15.000
mm (Equiv. 0.591 in.) |
Width (B)
17.500
mm (Equiv. 0.689 in.) |
Basic Dynamic Load Rating
710
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1040 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0150-0175-HT
Needle Roller without Inner Ring Bearings - 12x15x17.5 mm / 710 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
580
Kgf |
Basic Static Load Rating
600
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0100-HT
Needle Roller without Inner Ring Bearings - 12x16x10 mm / 580 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
580
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 600 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0100-HT
Needle Roller without Inner Ring Bearings - 12x16x10 mm / 580 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
655
Kgf |
Basic Static Load Rating
780
Kgf |
Limiting Speed Grease
16000
RPM |
|
| Material: CSteel Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0100-ST
Needle Roller without Inner Ring Bearings - 12x16x10 mm / 655 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
655
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 780 Kgf Limiting Speed Grease: 16000 RPM Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0100-ST
Needle Roller without Inner Ring Bearings - 12x16x10 mm / 655 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
710
Kgf |
Basic Static Load Rating
865
Kgf |
Limiting Speed Grease
16000
RPM |
|
| Material: CSteel Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0130-ST
Needle Roller without Inner Ring Bearings - 12x16x13 mm / 710 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
710
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 865 Kgf Limiting Speed Grease: 16000 RPM Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0130-ST
Needle Roller without Inner Ring Bearings - 12x16x13 mm / 710 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
720
Kgf |
Basic Static Load Rating
800
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0130-HT
Needle Roller without Inner Ring Bearings - 12x16x13 mm / 720 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
720
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 800 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0130-HT
Needle Roller without Inner Ring Bearings - 12x16x13 mm / 720 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
765
Kgf |
Basic Static Load Rating
950
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0150-HT
Needle Roller without Inner Ring Bearings - 12x16x15 mm / 765 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
765
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 950 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0150-HT
Needle Roller without Inner Ring Bearings - 12x16x15 mm / 765 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
15.500
mm (Equiv. 0.61 in.) |
Basic Dynamic Load Rating
770
Kgf |
Basic Static Load Rating
880
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0155-HT
Needle Roller without Inner Ring Bearings - 12x16x15.5 mm / 770 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
15.500
mm (Equiv. 0.61 in.) |
Basic Dynamic Load Rating
770
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 880 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0155-HT
Needle Roller without Inner Ring Bearings - 12x16x15.5 mm / 770 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
16.000
mm (Equiv. 0.63 in.) |
Basic Dynamic Load Rating
765
Kgf |
Basic Static Load Rating
950
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0160-HT
Needle Roller without Inner Ring Bearings - 12x16x16 mm / 765 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
16.000
mm (Equiv. 0.63 in.) |
Basic Dynamic Load Rating
765
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 950 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0160-HT
Needle Roller without Inner Ring Bearings - 12x16x16 mm / 765 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
18.000
mm (Equiv. 0.709 in.) |
Basic Dynamic Load Rating
1000
Kgf |
Basic Static Load Rating
1220
Kgf |
|
|
| Material: CSteel Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0180-ST
Needle Roller without Inner Ring Bearings - 12x16x18 mm / 1000 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
18.000
mm (Equiv. 0.709 in.) |
Basic Dynamic Load Rating
1000
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1220 Kgf Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0160-0180-ST
Needle Roller without Inner Ring Bearings - 12x16x18 mm / 1000 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
630
Kgf |
Basic Static Load Rating
580
Kgf |
|
|
| Material: CSteel Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0100-ST
Needle Roller without Inner Ring Bearings - 12x17x10 mm / 630 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
630
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 580 Kgf Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0100-ST
Needle Roller without Inner Ring Bearings - 12x17x10 mm / 630 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
680
Kgf |
Basic Static Load Rating
650
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0100-HT
Needle Roller without Inner Ring Bearings - 12x17x10 mm / 680 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
680
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 650 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0100-HT
Needle Roller without Inner Ring Bearings - 12x17x10 mm / 680 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
735
Kgf |
Basic Static Load Rating
765
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0130-HT
Needle Roller without Inner Ring Bearings - 12x17x13 mm / 735 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
735
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 765 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0130-HT
Needle Roller without Inner Ring Bearings - 12x17x13 mm / 735 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
850
Kgf |
Basic Static Load Rating
950
Kgf |
Limiting Speed Grease
17000
RPM |
|
| Material: CSteel Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0130-ST
Needle Roller without Inner Ring Bearings - 12x17x13 mm / 850 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
13.000
mm (Equiv. 0.512 in.) |
Basic Dynamic Load Rating
850
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 950 Kgf Limiting Speed Grease: 17000 RPM Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0130-ST
Needle Roller without Inner Ring Bearings - 12x17x13 mm / 850 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
14.000
mm (Equiv. 0.551 in.) |
Basic Dynamic Load Rating
980
Kgf |
Basic Static Load Rating
1140
Kgf |
Limiting Speed Grease
17000
RPM |
|
| Material: CSteel Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0140-ST
Needle Roller without Inner Ring Bearings - 12x17x14 mm / 980 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
14.000
mm (Equiv. 0.551 in.) |
Basic Dynamic Load Rating
980
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1140 Kgf Limiting Speed Grease: 17000 RPM Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0170-0140-ST
Needle Roller without Inner Ring Bearings - 12x17x14 mm / 980 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
12.000
mm (Equiv. 0.472 in.) |
Basic Dynamic Load Rating
950
Kgf |
Basic Static Load Rating
980
Kgf |
Limiting Speed Grease
17000
RPM |
|
| Material: CSteel Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0180-0120-ST
Needle Roller without Inner Ring Bearings - 12x18x12 mm / 950 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
12.000
mm (Equiv. 0.472 in.) |
Basic Dynamic Load Rating
950
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 980 Kgf Limiting Speed Grease: 17000 RPM Limiting Speed Oil: 28000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0180-0120-ST
Needle Roller without Inner Ring Bearings - 12x18x12 mm / 950 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
20.000
mm (Equiv. 0.787 in.) |
Basic Dynamic Load Rating
1400
Kgf |
Basic Static Load Rating
1470
Kgf |
|
|
| Material: CSteel Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0180-0200-ST
Needle Roller without Inner Ring Bearings - 12x18x20 mm / 1400 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.000
mm (Equiv. 0.472 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
20.000
mm (Equiv. 0.787 in.) |
Basic Dynamic Load Rating
1400
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1470 Kgf Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0120-0180-0200-ST
Needle Roller without Inner Ring Bearings - 12x18x20 mm / 1400 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
12.700
mm (Equiv. 0.5 in.) |
OD (D)
15.875
mm (Equiv. 0.625 in.) |
Width (B)
12.700
mm (Equiv. 0.5 in.) |
Basic Dynamic Load Rating
612
Kgf |
Basic Static Load Rating
777
Kgf |
Limiting Speed Grease
35000
RPM |
|
| Material: CSteel Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0127-0159-0127-ST
Needle Roller without Inner Ring Bearings - 12.7x15.875x12.7 mm / 612 Kgf Cage Type - CSteel Bearing 98 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (d)
12.700
mm (Equiv. 0.5 in.) |
OD (D)
15.875
mm (Equiv. 0.625 in.) |
Width (B)
12.700
mm (Equiv. 0.5 in.) |
Basic Dynamic Load Rating
612
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 777 Kgf Limiting Speed Grease: 35000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0127-0159-0127-ST
Needle Roller without Inner Ring Bearings - 12.7x15.875x12.7 mm / 612 Kgf Cage Type - CSteel Bearing 98 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
14.000
mm (Equiv. 0.551 in.) |
Basic Dynamic Load Rating
540
Kgf |
Basic Static Load Rating
735
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0160-0140-HT
Needle Roller without Inner Ring Bearings - 13x16x14 mm / 540 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
16.000
mm (Equiv. 0.63 in.) |
Width (B)
14.000
mm (Equiv. 0.551 in.) |
Basic Dynamic Load Rating
540
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 735 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0160-0140-HT
Needle Roller without Inner Ring Bearings - 13x16x14 mm / 540 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
680
Kgf |
Basic Static Load Rating
850
Kgf |
Limiting Speed Grease
16000
RPM |
|
| Material: CSteel Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0170-0100-ST
Needle Roller without Inner Ring Bearings - 13x17x10 mm / 680 Kgf Cage Type - CSteel Bearing Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
10.000
mm (Equiv. 0.394 in.) |
Basic Dynamic Load Rating
680
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 850 Kgf Limiting Speed Grease: 16000 RPM Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0170-0100-ST
Needle Roller without Inner Ring Bearings - 13x17x10 mm / 680 Kgf Cage Type - CSteel Bearing Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
17.700
mm (Equiv. 0.697 in.) |
Basic Dynamic Load Rating
930
Kgf |
Basic Static Load Rating
1250
Kgf |
|
|
| Material: CSteel Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0170-0177-HT
Needle Roller without Inner Ring Bearings - 13x17x17.7 mm / 930 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
17.000
mm (Equiv. 0.669 in.) |
Width (B)
17.700
mm (Equiv. 0.697 in.) |
Basic Dynamic Load Rating
930
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1250 Kgf Cage Type: Heat Treated Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0170-0177-HT
Needle Roller without Inner Ring Bearings - 13x17x17.7 mm / 930 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
1040
Kgf |
Basic Static Load Rating
1220
Kgf |
Limiting Speed Grease
16000
RPM |
|
| Material: CSteel Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0180-0150-ST
Needle Roller without Inner Ring Bearings - 13x18x15 mm / 1040 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (d)
13.000
mm (Equiv. 0.512 in.) |
OD (D)
18.000
mm (Equiv. 0.709 in.) |
Width (B)
15.000
mm (Equiv. 0.591 in.) |
Basic Dynamic Load Rating
1040
Kgf |
|
||
| Material: CSteel Basic Static Load Rating: 1220 Kgf Limiting Speed Grease: 16000 RPM Limiting Speed Oil: 26000 RPM Cage Type: Steel Type: Single Row rl | ||||||
|
Part Number: NC-0130-0180-0150-ST
Needle Roller without Inner Ring Bearings - 13x18x15 mm / 1040 Kgf Cage Type - CSteel Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
