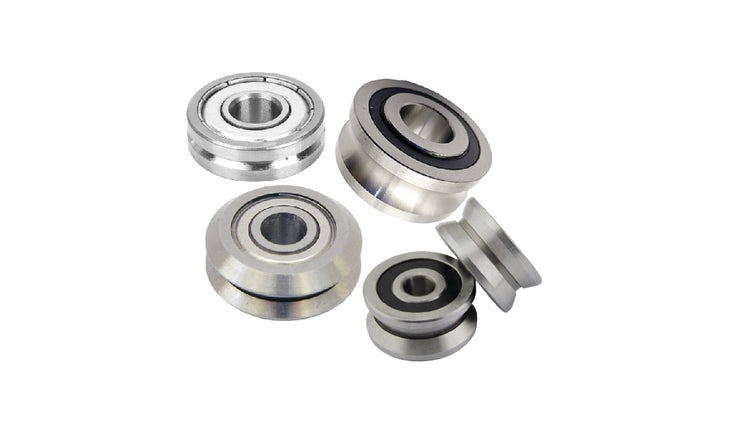

Collection: Bearings - Grooved OD

Bearings -> Grooved OD

There are 28 products in the sub-categories of Bearings - Grooved OD. Scroll down or follow the link to Bearings - Grooved OD in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Grooved OD Bearings - 5x17x7 mm / 8 mm - Chrome Steel SAE 52100

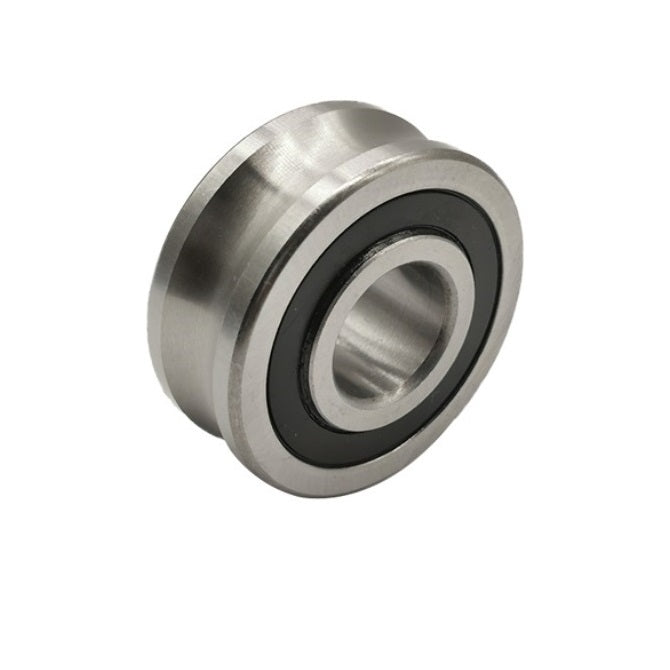

Bearings - Grooved OD - Gothic Groove

A selection of Gothic Groove Grooved OD Bearings. Bearings with a Gothic...

Bearings - Grooved OD - Gothic Groove

Grooved OD Bearings - 4x11x4 mm - Stainless Steel AISI 440C

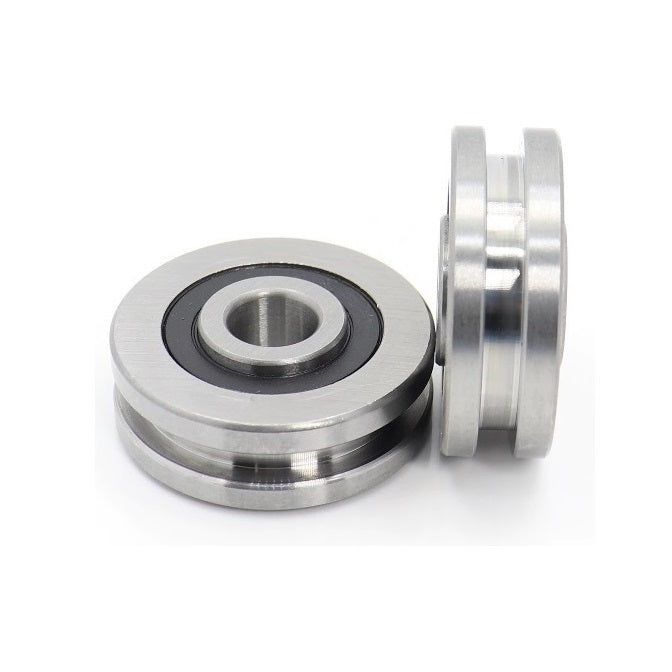

Bearings - Grooved OD - Square Groove

A selection of Square Groove Grooved OD Bearings. Special bearings. Not readily...

Bearings - Grooved OD - Square Groove

Grooved OD Bearings - 3x10x4 mm - Chrome Steel

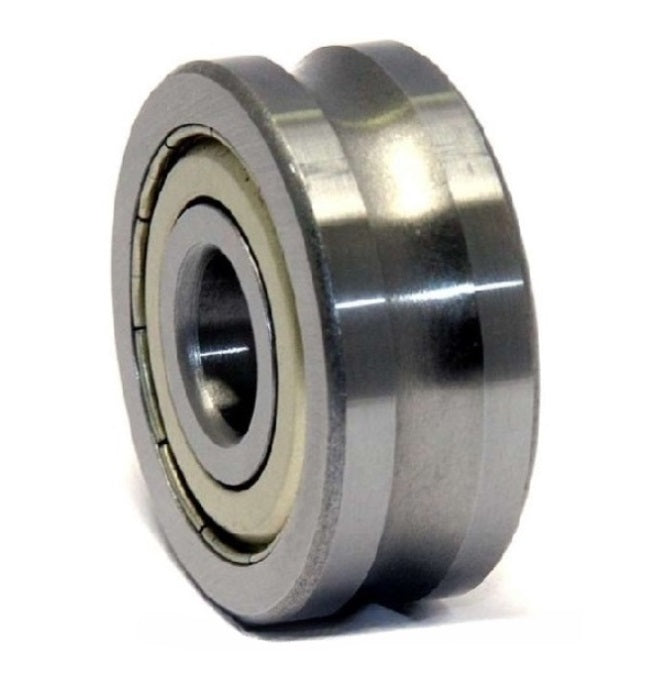

Bearings - Grooved OD - U Groove

A selection of U Groove Grooved OD Bearings. Special OD Bearings. Grooved...

Bearings - Grooved OD - U Groove

Grooved OD Bearings - 3x12x4 mm - Chrome Steel

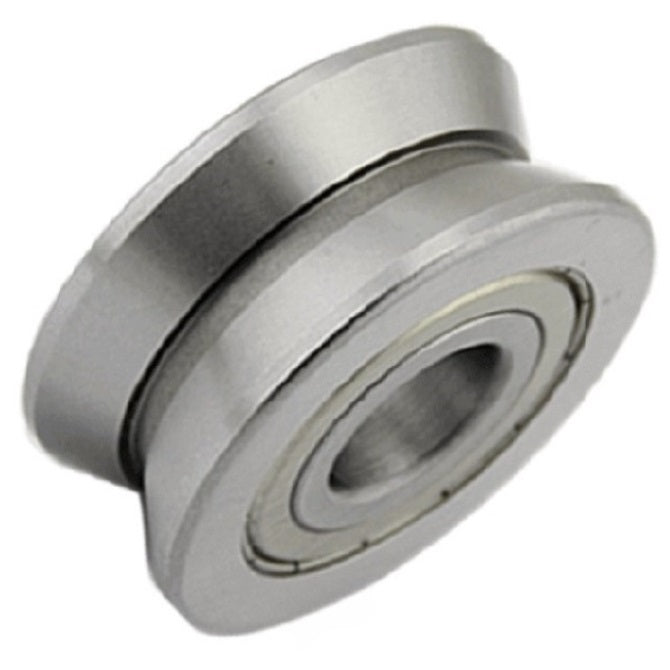

Bearings - Grooved OD - Vee Groove

A selection of Vee Groove Grooved OD Bearings. Special OD Bearings. Grooved...

Bearings - Grooved OD - Vee Groove

Category Details

This category includes various types of grooved od bearings.

Grooved OD bearings include various grrove shapes such as U-Groove, V-Groove, gothic arch and square grooves.
These bearings are designed for applications where the outer ring of the bearing interacts with a track or rail to support and guide the movement of the bearing assembly.
Some uses include wire straightening, textile machinery, material handling, linear systems, and the printing industry. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Grooved OD category on the Small Parts & Bearings online store.

ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Groove Base Diameter (GD)	Groove Width (GB)
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 10.000 mm (Equiv. 0.394 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U623-ZZ-09-ECO (2 Pcs) Grooved OD Bearings - 3x10x4 mm U Groove - Chrome Steel Bearing 60 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 60 units (120 pcs) Available Now. Backorder if more than 60.
ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Indicative Image
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 10.000 mm (Equiv. 0.394 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U623-ZZ-09-ECO (2 Pcs) Grooved OD Bearings - 3x10x4 mm U Groove - Chrome Steel Bearing 60 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 60 units (120 pcs) Available Now. Backorder if more than 60.

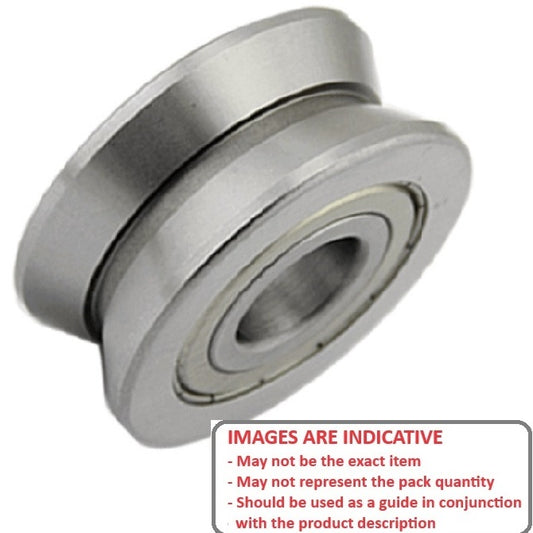

U623-ZZ-09-ECO (2 Pcs) --- Grooved OD Bearings - 3x10x4 mm U Groove - Chrome Steel Bearing U623-ZZ-09-ECO (2 Pcs) --- Grooved OD Bearings - 3x10x4 mm U Groove - Chrome Steel Bearing Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 60 Available Now
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR123-ZZ-03-090-ECO (2 Pcs) Grooved OD Bearings - 3x12x4 mm Vee Groove - Chrome Steel Bearing 50 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 2 Quantity Required 50 units (100 pcs) Available Now. Backorder if more than 50.
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR123-ZZ-03-090-ECO (2 Pcs) Grooved OD Bearings - 3x12x4 mm Vee Groove - Chrome Steel Bearing 50 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 2 Quantity Required 50 units (100 pcs) Available Now. Backorder if more than 50.
VMR123-ZZ-03-090-ECO (2 Pcs) --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Chrome Steel Bearing VMR123-ZZ-03-090-ECO (2 Pcs) --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Chrome Steel Bearing Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 50 Available Now
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VSMR123-ZZ-03-090 Grooved OD Bearings - 3x12x4 mm Vee Groove - Stainless Steel AISI 440C Bearing 1 Available Now \| Further orders can be expected around Sun, Oct 05, 2025 Regular price $23.14 AUD Regular price ~~$42.33 AUD~~ Sale price $23.14 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VSMR123-ZZ-03-090 Grooved OD Bearings - 3x12x4 mm Vee Groove - Stainless Steel AISI 440C Bearing 1 Available Now \| Further orders can be expected around Sun, Oct 05, 2025 Regular price $23.14 AUD Regular price ~~$42.33 AUD~~ Sale price $23.14 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
VSMR123-ZZ-03-090 --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Stainless Steel AISI 440C Bearing Sale VSMR123-ZZ-03-090 --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Stainless Steel AISI 440C Bearing Regular price $23.14 AUD Regular price ~~$42.33 AUD~~ Sale price $23.14 AUD Unit price per 1 Available Now Sale
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Carbon Steel - Semi Ground Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR123-ZZ-03-090-SG (5 Pcs) Grooved OD Bearings - 3x12x4 mm Vee Groove - Carbon Steel - Semi Ground Bearing 24 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 5 Quantity Required 24 units (120 pcs) Available Now. Backorder if more than 24.
ID (d) 3.000 mm (Equiv. 0.118 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Carbon Steel - Semi Ground Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR123-ZZ-03-090-SG (5 Pcs) Grooved OD Bearings - 3x12x4 mm Vee Groove - Carbon Steel - Semi Ground Bearing 24 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 5 Quantity Required 24 units (120 pcs) Available Now. Backorder if more than 24.
VMR123-ZZ-03-090-SG (5 Pcs) --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Carbon Steel - Semi Ground Bearing VMR123-ZZ-03-090-SG (5 Pcs) --- Grooved OD Bearings - 3x12x4 mm Vee Groove - Carbon Steel - Semi Ground Bearing Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 24 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 11.000 mm (Equiv. 0.433 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)		Groove Base Diameter (GD) 9.600 mm	Groove Width (GB) 2.500 mm
Material: Stainless Steel AISI 440C Contact Angle (a): 42.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - Square Groove

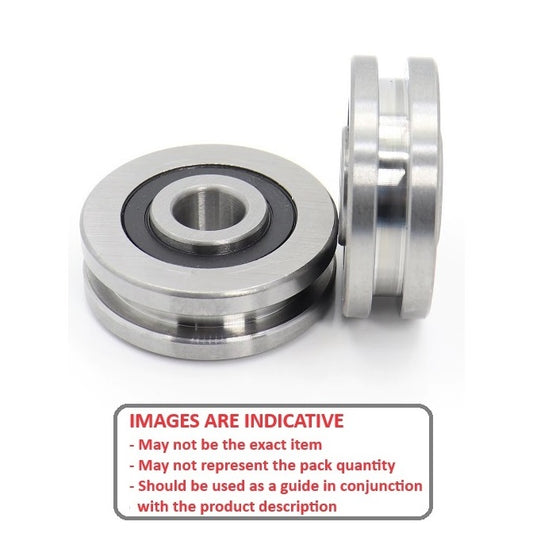

Part Number: S694-ZZ-SQP (200 Pcs) Grooved OD Bearings - 4x11x4 mm Square Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $2,922.68 AUD Regular price ~~$3,507.22 AUD~~ Sale price $2,922.68 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 11.000 mm (Equiv. 0.433 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Groove Base Diameter (GD): 9.600 mm Groove Width (GB): 2.500 mm Contact Angle (a): 42.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - Square Groove
Part Number: S694-ZZ-SQP (200 Pcs) Grooved OD Bearings - 4x11x4 mm Square Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $2,922.68 AUD Regular price ~~$3,507.22 AUD~~ Sale price $2,922.68 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
S694-ZZ-SQP (200 Pcs) --- Grooved OD Bearings - 4x11x4 mm Square Groove - Stainless Steel AISI 440C Bearing Sale S694-ZZ-SQP (200 Pcs) --- Grooved OD Bearings - 4x11x4 mm Square Groove - Stainless Steel AISI 440C Bearing Regular price $2,922.68 AUD Regular price ~~$3,507.22 AUD~~ Sale price $2,922.68 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U604-ZZ-10-ECO (2 Pcs) Grooved OD Bearings - 4x12x4 mm U Groove - Chrome Steel Bearing 16 units (32 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 16 units (32 pcs) Available Now. Backorder if more than 16.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U604-ZZ-10-ECO (2 Pcs) Grooved OD Bearings - 4x12x4 mm U Groove - Chrome Steel Bearing 16 units (32 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 16 units (32 pcs) Available Now. Backorder if more than 16.
U604-ZZ-10-ECO (2 Pcs) --- Grooved OD Bearings - 4x12x4 mm U Groove - Chrome Steel Bearing U604-ZZ-10-ECO (2 Pcs) --- Grooved OD Bearings - 4x12x4 mm U Groove - Chrome Steel Bearing Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 16 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)	Inner Ring Width (Bn) 5.000 mm
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UW604A-ZZ-11-ECO (2 Pcs) Grooved OD Bearings - 4x12x4 mm / 5 mm U Groove - Chrome Steel Bearing 24 units (48 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 12.000 mm (Equiv. 0.472 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)	Inner Ring Width (Bn) 5.000 mm
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UW604A-ZZ-11-ECO (2 Pcs) Grooved OD Bearings - 4x12x4 mm / 5 mm U Groove - Chrome Steel Bearing 24 units (48 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
UW604A-ZZ-11-ECO (2 Pcs) --- Grooved OD Bearings - 4x12x4 mm / 5 mm U Groove - Chrome Steel Bearing UW604A-ZZ-11-ECO (2 Pcs) --- Grooved OD Bearings - 4x12x4 mm / 5 mm U Groove - Chrome Steel Bearing Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 24 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624A-ZZ-12-ECO (2 Pcs) Grooved OD Bearings - 4x13x4 mm U Groove - Chrome Steel Bearing 22 units (44 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 22 units (44 pcs) Available Now. Backorder if more than 22.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Chrome Steel Contact Angle (a): 2.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624A-ZZ-12-ECO (2 Pcs) Grooved OD Bearings - 4x13x4 mm U Groove - Chrome Steel Bearing 22 units (44 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 Quantity Required 22 units (44 pcs) Available Now. Backorder if more than 22.
U624A-ZZ-12-ECO (2 Pcs) --- Grooved OD Bearings - 4x13x4 mm U Groove - Chrome Steel Bearing U624A-ZZ-12-ECO (2 Pcs) --- Grooved OD Bearings - 4x13x4 mm U Groove - Chrome Steel Bearing Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 22 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)		Groove Base Diameter (GD) 11.000 mm	Groove Width (GB) 2.000 mm
Material: Stainless Steel AISI 440C Contact Angle (a): 47.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - Square Groove
Part Number: S624A-ZZ-SQP Grooved OD Bearings - 4x13x4 mm Square Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Groove Base Diameter (GD): 11.000 mm Groove Width (GB): 2.000 mm Contact Angle (a): 47.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - Square Groove
Part Number: S624A-ZZ-SQP Grooved OD Bearings - 4x13x4 mm Square Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
S624A-ZZ-SQP --- Grooved OD Bearings - 4x13x4 mm Square Groove - Stainless Steel AISI 440C Bearing S624A-ZZ-SQP --- Grooved OD Bearings - 4x13x4 mm Square Groove - Stainless Steel AISI 440C Bearing Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: US624A-ZZ-11 Grooved OD Bearings - 4x13x4 mm U Groove - Stainless Steel AISI 440C Bearing 200 Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required 200 Available Now. Backorder if more than 200.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 4.000 mm (Equiv. 0.157 in.)
Material: Stainless Steel AISI 440C Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: US624A-ZZ-11 Grooved OD Bearings - 4x13x4 mm U Groove - Stainless Steel AISI 440C Bearing 200 Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required 200 Available Now. Backorder if more than 200.
US624A-ZZ-11 --- Grooved OD Bearings - 4x13x4 mm U Groove - Stainless Steel AISI 440C Bearing Sale US624A-ZZ-11 --- Grooved OD Bearings - 4x13x4 mm U Groove - Stainless Steel AISI 440C Bearing Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per 200 Available Now Sale
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624-ZZ-12-ECO (5 Pcs) Grooved OD Bearings - 4x13x5 mm U Groove - Chrome Steel Bearing 1 pack (5 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 5 Quantity Required 1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624-ZZ-12-ECO (5 Pcs) Grooved OD Bearings - 4x13x5 mm U Groove - Chrome Steel Bearing 1 pack (5 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 5 Quantity Required 1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
U624-ZZ-12-ECO (5 Pcs) --- Grooved OD Bearings - 4x13x5 mm U Groove - Chrome Steel Bearing Sale U624-ZZ-12-ECO (5 Pcs) --- Grooved OD Bearings - 4x13x5 mm U Groove - Chrome Steel Bearing Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624-ZZ-02-120-ECO Grooved OD Bearings - 4x13x5 mm Vee Groove - Chrome Steel Bearing 29 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each Quantity Required 29 Available Now. Backorder if more than 29.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624-ZZ-02-120-ECO Grooved OD Bearings - 4x13x5 mm Vee Groove - Chrome Steel Bearing 29 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each Quantity Required 29 Available Now. Backorder if more than 29.
V624-ZZ-02-120-ECO --- Grooved OD Bearings - 4x13x5 mm Vee Groove - Chrome Steel Bearing V624-ZZ-02-120-ECO --- Grooved OD Bearings - 4x13x5 mm Vee Groove - Chrome Steel Bearing Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 29 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624B-ZZ-04-120-ECO (2 Pcs) Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing 16 units (32 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Per 2 Quantity Required 16 units (32 pcs) Available Now. Backorder if more than 16.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624B-ZZ-04-120-ECO (2 Pcs) Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing 16 units (32 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Per 2 Quantity Required 16 units (32 pcs) Available Now. Backorder if more than 16.
V624B-ZZ-04-120-ECO (2 Pcs) --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing V624B-ZZ-04-120-ECO (2 Pcs) --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per 16 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Chrome Steel Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624B-ZZ-04-090-ECO Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Chrome Steel Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V624B-ZZ-04-090-ECO Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
V624B-ZZ-04-090-ECO --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing V624B-ZZ-04-090-ECO --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Chrome Steel Bearing Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 50 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 5.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624C-ZZ-09-ECO Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 5.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624C-ZZ-09-ECO Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
U624C-ZZ-09-ECO --- Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing U624C-ZZ-09-ECO --- Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 50 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 5.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624C-ZZ-10-SG (5 Pcs) Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing 63 units (315 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 5 Quantity Required 63 units (315 pcs) Available Now. Backorder if more than 63.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 5.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U624C-ZZ-10-SG (5 Pcs) Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing 63 units (315 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 5 Quantity Required 63 units (315 pcs) Available Now. Backorder if more than 63.
U624C-ZZ-10-SG (5 Pcs) --- Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing U624C-ZZ-10-SG (5 Pcs) --- Grooved OD Bearings - 4x13x7 mm U Groove - Chrome Steel Bearing Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 63 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Stainless Steel AISI 440C Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VS624B-ZZ-04-090 (50 Pcs) Grooved OD Bearings - 4x13x6 mm Vee Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $727.14 AUD Regular price Sale price $727.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 13.000 mm (Equiv. 0.512 in.)	Width (B) 6.000 mm (Equiv. 0.236 in.)
Material: Stainless Steel AISI 440C Contact Angle (a): 90 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VS624B-ZZ-04-090 (50 Pcs) Grooved OD Bearings - 4x13x6 mm Vee Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $727.14 AUD Regular price Sale price $727.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
VS624B-ZZ-04-090 (50 Pcs) --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Stainless Steel AISI 440C Bearing VS624B-ZZ-04-090 (50 Pcs) --- Grooved OD Bearings - 4x13x6 mm Vee Groove - Stainless Steel AISI 440C Bearing Regular price $727.14 AUD Regular price Sale price $727.14 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 14.000 mm (Equiv. 0.551 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 135 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR144-ZZ-04-135-ECO Grooved OD Bearings - 4x14x5 mm Vee Groove - Chrome Steel Bearing 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 14.000 mm (Equiv. 0.551 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 135 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: VMR144-ZZ-04-135-ECO Grooved OD Bearings - 4x14x5 mm Vee Groove - Chrome Steel Bearing 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
VMR144-ZZ-04-135-ECO --- Grooved OD Bearings - 4x14x5 mm Vee Groove - Chrome Steel Bearing VMR144-ZZ-04-135-ECO --- Grooved OD Bearings - 4x14x5 mm Vee Groove - Chrome Steel Bearing Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 44 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 16.500 mm (Equiv. 0.65 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 4.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UMR165-4-ZZ-14-ECO Grooved OD Bearings - 4x16.5x7 mm U Groove - Chrome Steel Bearing 38 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 38 Available Now. Backorder if more than 38.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 16.500 mm (Equiv. 0.65 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)
Material: Chrome Steel Contact Angle (a): 4.5 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UMR165-4-ZZ-14-ECO Grooved OD Bearings - 4x16.5x7 mm U Groove - Chrome Steel Bearing 38 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 38 Available Now. Backorder if more than 38.
UMR165-4-ZZ-14-ECO --- Grooved OD Bearings - 4x16.5x7 mm U Groove - Chrome Steel Bearing UMR165-4-ZZ-14-ECO --- Grooved OD Bearings - 4x16.5x7 mm U Groove - Chrome Steel Bearing Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 38 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 18.000 mm (Equiv. 0.709 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel Contact Angle (a): 5.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UWMR184A-ZZ-13-ECO Grooved OD Bearings - 4x18x7 mm / 8 mm U Groove - Chrome Steel Bearing 71 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 71 Available Now. Backorder if more than 71.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 18.000 mm (Equiv. 0.709 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel Contact Angle (a): 5.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: UWMR184A-ZZ-13-ECO Grooved OD Bearings - 4x18x7 mm / 8 mm U Groove - Chrome Steel Bearing 71 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 71 Available Now. Backorder if more than 71.
UWMR184A-ZZ-13-ECO --- Grooved OD Bearings - 4x18x7 mm / 8 mm U Groove - Chrome Steel Bearing UWMR184A-ZZ-13-ECO --- Grooved OD Bearings - 4x18x7 mm / 8 mm U Groove - Chrome Steel Bearing Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 71 Available Now
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 20.000 mm (Equiv. 0.787 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Stainless Steel AISI 440C Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: USMR204-ZZ-18 (100 Pcs) Grooved OD Bearings - 4x20x5 mm U Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $1,500.77 AUD Regular price ~~$1,800.93 AUD~~ Sale price $1,500.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
ID (d) 4.000 mm (Equiv. 0.157 in.)	OD (D) 20.000 mm (Equiv. 0.787 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Stainless Steel AISI 440C Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: USMR204-ZZ-18 (100 Pcs) Grooved OD Bearings - 4x20x5 mm U Groove - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $1,500.77 AUD Regular price ~~$1,800.93 AUD~~ Sale price $1,500.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
USMR204-ZZ-18 (100 Pcs) --- Grooved OD Bearings - 4x20x5 mm U Groove - Stainless Steel AISI 440C Bearing Sale USMR204-ZZ-18 (100 Pcs) --- Grooved OD Bearings - 4x20x5 mm U Groove - Stainless Steel AISI 440C Bearing Regular price $1,500.77 AUD Regular price ~~$1,800.93 AUD~~ Sale price $1,500.77 AUD Unit price per Out of stock! Backorder Now Sale

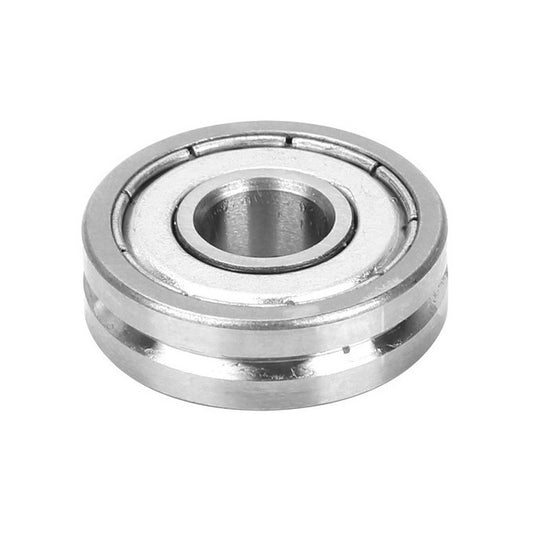

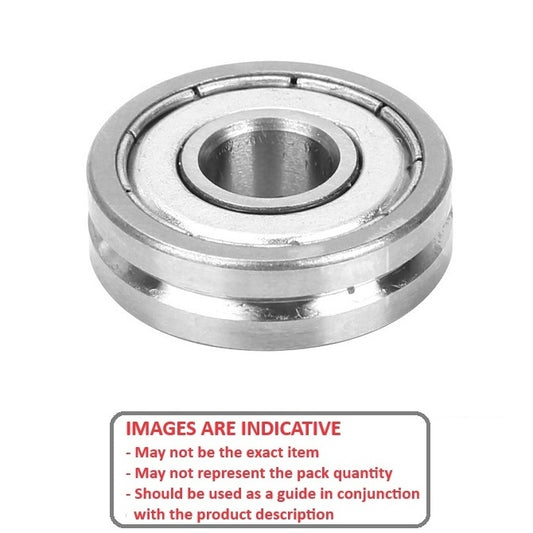

ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 16.000 mm (Equiv. 0.63 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V625-ZZ-02-120-ECO (2 Pcs) Grooved OD Bearings - 5x16x5 mm Vee Groove - Chrome Steel Bearing 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 16.000 mm (Equiv. 0.63 in.)	Width (B) 5.000 mm (Equiv. 0.197 in.)
Material: Chrome Steel Contact Angle (a): 120 ° Closure Type: ZZ Category: Bearings - Grooved OD - Vee Groove
Part Number: V625-ZZ-02-120-ECO (2 Pcs) Grooved OD Bearings - 5x16x5 mm Vee Groove - Chrome Steel Bearing 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
V625-ZZ-02-120-ECO (2 Pcs) --- Grooved OD Bearings - 5x16x5 mm Vee Groove - Chrome Steel Bearing V625-ZZ-02-120-ECO (2 Pcs) --- Grooved OD Bearings - 5x16x5 mm Vee Groove - Chrome Steel Bearing Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 18 Available Now
ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 16.000 mm (Equiv. 0.63 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel Contact Angle (a): 3.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U625A-ZZ-13-ECO Grooved OD Bearings - 5x16x7 mm / 8 mm U Groove - Chrome Steel Bearing 33 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each Quantity Required 33 Available Now. Backorder if more than 33.
ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 16.000 mm (Equiv. 0.63 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel Contact Angle (a): 3.0 ° Closure Type: ZZ Category: Bearings - Grooved OD - U Groove
Part Number: U625A-ZZ-13-ECO Grooved OD Bearings - 5x16x7 mm / 8 mm U Groove - Chrome Steel Bearing 33 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each Quantity Required 33 Available Now. Backorder if more than 33.
U625A-ZZ-13-ECO --- Grooved OD Bearings - 5x16x7 mm / 8 mm U Groove - Chrome Steel Bearing U625A-ZZ-13-ECO --- Grooved OD Bearings - 5x16x7 mm / 8 mm U Groove - Chrome Steel Bearing Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 33 Available Now

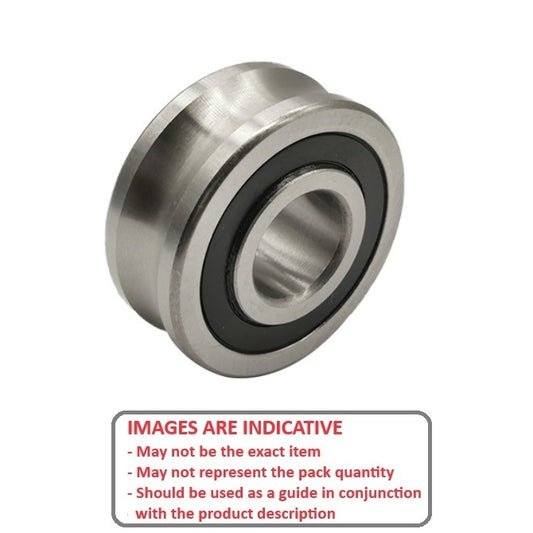

ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 17.000 mm (Equiv. 0.669 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel SAE 52100 Contact Angle (a): 25 ° Closure Type: 2RS Category: Bearings - Grooved OD - Gothic Groove
Part Number: DRA-WMR175-2RS-GP-ECO (200 Pcs) Grooved OD Bearings - 5x17x7 mm / 8 mm Gothic Groove - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1,883.23 AUD Regular price Sale price $1,883.23 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
ID (d) 5.000 mm (Equiv. 0.197 in.)	OD (D) 17.000 mm (Equiv. 0.669 in.)	Width (B) 7.000 mm (Equiv. 0.276 in.)	Inner Ring Width (Bn) 8.000 mm
Material: Chrome Steel SAE 52100 Contact Angle (a): 25 ° Closure Type: 2RS Category: Bearings - Grooved OD - Gothic Groove
Part Number: DRA-WMR175-2RS-GP-ECO (200 Pcs) Grooved OD Bearings - 5x17x7 mm / 8 mm Gothic Groove - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1,883.23 AUD Regular price Sale price $1,883.23 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
DRA-WMR175-2RS-GP-ECO (200 Pcs) --- Grooved OD Bearings - 5x17x7 mm / 8 mm Gothic Groove - Chrome Steel SAE 52100 Bearing DRA-WMR175-2RS-GP-ECO (200 Pcs) --- Grooved OD Bearings - 5x17x7 mm / 8 mm Gothic Groove - Chrome Steel SAE 52100 Bearing Regular price $1,883.23 AUD Regular price Sale price $1,883.23 AUD Unit price per Out of stock! Backorder Now

Country/region

Collection: Bearings - Grooved OD

Category Details

Filter

Filter

Subscribe to our emails
