Collection: Balls - Bored - Steel

Balls -> Bored -> Steel

There are 14 products in the sub-categories of Balls - Bored - Steel. Browse the Balls - Bored - Steel products table.

Category Details

A selection of Steel Bored Balls. Similr to the style used in steel rod ends.

These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
Hardness: 58-64 Rc.
Material: SUJ-2.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Balls - Bored - Steel category on the Small Parts & Bearings online store.

Diameter (D)	Bore (B)	Width (W)	Flat Diameter (d1)	Chamfer (C)
Diameter (D) 7.938 mm (Equiv. 0.313 in.)	Bore (B) 3.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.118 in.)	Width (W) 6.000 mm (Equiv. 0.236 in.)	Flat Diameter (d1) 5.100 mm	Chamfer (C) 0.3X45 mm
Material: Chrome Steel
Part Number: BLB-00794-00300-SUJ Bored Balls - 7.938x3x6 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D)	Bore (B)	Width (W)	Flat Diameter (d1)	Indicative Image
Diameter (D) 7.938 mm (Equiv. 0.313 in.)	Bore (B) 3.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.118 in.)	Width (W) 6.000 mm (Equiv. 0.236 in.)	Flat Diameter (d1) 5.100 mm
Material: Chrome Steel Chamfer (C): 0.3X45 mm
Part Number: BLB-00794-00300-SUJ Bored Balls - 7.938x3x6 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Bore (B) 4.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.157 in.)	Width (W) 7.000 mm (Equiv. 0.276 in.)	Flat Diameter (d1) 7.400 mm	Chamfer (C) 0.3X45 mm
Material: Chrome Steel
Part Number: BLB-00953-00400-SUJ Bored Balls - 9.525x4x7 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 9.525 mm (Equiv. 0.375 in.)	Bore (B) 4.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.157 in.)	Width (W) 7.000 mm (Equiv. 0.276 in.)	Flat Diameter (d1) 7.400 mm
Material: Chrome Steel Chamfer (C): 0.3X45 mm
Part Number: BLB-00953-00400-SUJ Bored Balls - 9.525x4x7 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 11.112 mm (Equiv. 0.437 in.)	Bore (B) 5.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.197 in.)	Width (W) 8.000 mm (Equiv. 0.315 in.)	Flat Diameter (d1) 7.710 mm	Chamfer (C) 0.3X45 mm
Material: Chrome Steel
Part Number: BLB-01111-00500-SUJ Bored Balls - 11.112x5x8 mm - Chrome Steel Ball 58 Available Now \| More stock due: 500 around Mon, Sep 15, 2025 \| Further orders can be expected around Thu, Sep 25, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Each Quantity Required 58 Available Now. Backorder if more than 58.
Diameter (D) 11.112 mm (Equiv. 0.437 in.)	Bore (B) 5.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.197 in.)	Width (W) 8.000 mm (Equiv. 0.315 in.)	Flat Diameter (d1) 7.710 mm
Material: Chrome Steel Chamfer (C): 0.3X45 mm
Part Number: BLB-01111-00500-SUJ Bored Balls - 11.112x5x8 mm - Chrome Steel Ball 58 Available Now \| More stock due: 500 around Mon, Sep 15, 2025 \| Further orders can be expected around Thu, Sep 25, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Each Quantity Required 58 Available Now. Backorder if more than 58.
BLB-01111-00500-SUJ --- Bored Balls - 11.112x5x8 mm - Chrome Steel Ball BLB-01111-00500-SUJ --- Bored Balls - 11.112x5x8 mm - Chrome Steel Ball Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per 58 Available Now
Diameter (D) 12.700 mm (Equiv. 0.5 in.)	Bore (B) 6.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.236 in.)	Width (W) 9.000 mm (Equiv. 0.354 in.)	Flat Diameter (d1) 8.960 mm	Chamfer (C) 0.3X45 mm
Material: Chrome Steel
Part Number: BLB-01270-00600-SUJ (4 Pcs) Bored Balls - 12.7x6x9 mm - Chrome Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $51.32 AUD Regular price ~~$61.58 AUD~~ Sale price $51.32 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm (Equiv. 0.5 in.)	Bore (B) 6.000 mm _{+ 0.012 / - 0.0} (Equiv. 0.236 in.)	Width (W) 9.000 mm (Equiv. 0.354 in.)	Flat Diameter (d1) 8.960 mm
Material: Chrome Steel Chamfer (C): 0.3X45 mm
Part Number: BLB-01270-00600-SUJ (4 Pcs) Bored Balls - 12.7x6x9 mm - Chrome Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $51.32 AUD Regular price ~~$61.58 AUD~~ Sale price $51.32 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
BLB-01270-00600-SUJ (4 Pcs) --- Bored Balls - 12.7x6x9 mm - Chrome Steel Ball Sale BLB-01270-00600-SUJ (4 Pcs) --- Bored Balls - 12.7x6x9 mm - Chrome Steel Ball Regular price $51.32 AUD Regular price ~~$61.58 AUD~~ Sale price $51.32 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 15.875 mm (Equiv. 0.625 in.)	Bore (B) 8.000 mm _{+ 0.015 / - 0.0} (Equiv. 0.315 in.)	Width (W) 12.000 mm (Equiv. 0.472 in.)	Flat Diameter (d1) 10.390 mm	Chamfer (C) 0.5X45 mm
Material: Chrome Steel
Part Number: BLB-01588-00800-SUJ Bored Balls - 15.875x8x12 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 15.875 mm (Equiv. 0.625 in.)	Bore (B) 8.000 mm _{+ 0.015 / - 0.0} (Equiv. 0.315 in.)	Width (W) 12.000 mm (Equiv. 0.472 in.)	Flat Diameter (d1) 10.390 mm
Material: Chrome Steel Chamfer (C): 0.5X45 mm
Part Number: BLB-01588-00800-SUJ Bored Balls - 15.875x8x12 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 19.050 mm (Equiv. 0.75 in.)	Bore (B) 10.000 mm _{+ 0.015 / - 0.0} (Equiv. 0.394 in.)	Width (W) 14.000 mm (Equiv. 0.551 in.)	Flat Diameter (d1) 12.920 mm	Chamfer (C) 0.5X45 mm
Material: Chrome Steel
Part Number: BLB-01905-01000-SUJ Bored Balls - 19.05x10x14 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 19.050 mm (Equiv. 0.75 in.)	Bore (B) 10.000 mm _{+ 0.015 / - 0.0} (Equiv. 0.394 in.)	Width (W) 14.000 mm (Equiv. 0.551 in.)	Flat Diameter (d1) 12.920 mm
Material: Chrome Steel Chamfer (C): 0.5X45 mm
Part Number: BLB-01905-01000-SUJ Bored Balls - 19.05x10x14 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 22.225 mm (Equiv. 0.875 in.)	Bore (B) 12.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.472 in.)	Width (W) 16.000 mm (Equiv. 0.63 in.)	Flat Diameter (d1) 15.430 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-02223-01200-SUJ Bored Balls - 22.225x12x16 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 22.225 mm (Equiv. 0.875 in.)	Bore (B) 12.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.472 in.)	Width (W) 16.000 mm (Equiv. 0.63 in.)	Flat Diameter (d1) 15.430 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-02223-01200-SUJ Bored Balls - 22.225x12x16 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 25.400 mm (Equiv. 1 in.)	Bore (B) 14.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.551 in.)	Width (W) 19.000 mm (Equiv. 0.748 in.)	Flat Diameter (d1) 16.860 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel

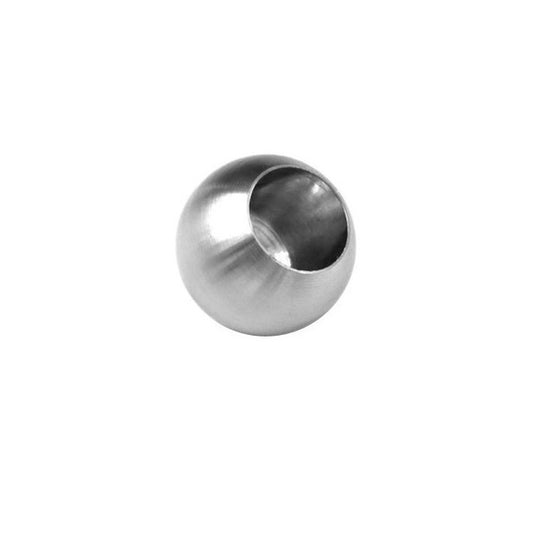

Part Number: BLB-02540-01400-SUJ Bored Balls - 25.4x14x19 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 25.400 mm (Equiv. 1 in.)	Bore (B) 14.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.551 in.)	Width (W) 19.000 mm (Equiv. 0.748 in.)	Flat Diameter (d1) 16.860 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-02540-01400-SUJ Bored Balls - 25.4x14x19 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 28.575 mm (Equiv. 1.125 in.)	Bore (B) 16.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.63 in.)	Width (W) 21.000 mm (Equiv. 0.827 in.)	Flat Diameter (d1) 19.390 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-02858-01600-SUJ Bored Balls - 28.575x16x21 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 28.575 mm (Equiv. 1.125 in.)	Bore (B) 16.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.63 in.)	Width (W) 21.000 mm (Equiv. 0.827 in.)	Flat Diameter (d1) 19.390 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-02858-01600-SUJ Bored Balls - 28.575x16x21 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 31.750 mm (Equiv. 1.25 in.)	Bore (B) 18.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.709 in.)	Width (W) 23.000 mm (Equiv. 0.906 in.)	Flat Diameter (d1) 21.890 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-03175-01800-SUJ Bored Balls - 31.75x18x23 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 31.750 mm (Equiv. 1.25 in.)	Bore (B) 18.000 mm _{+ 0.018 / - 0.0} (Equiv. 0.709 in.)	Width (W) 23.000 mm (Equiv. 0.906 in.)	Flat Diameter (d1) 21.890 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-03175-01800-SUJ Bored Balls - 31.75x18x23 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 34.925 mm (Equiv. 1.375 in.)	Bore (B) 20.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.787 in.)	Width (W) 25.000 mm (Equiv. 0.984 in.)	Flat Diameter (d1) 24.380 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-03493-02000-SUJ Bored Balls - 34.925x20x25 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 34.925 mm (Equiv. 1.375 in.)	Bore (B) 20.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.787 in.)	Width (W) 25.000 mm (Equiv. 0.984 in.)	Flat Diameter (d1) 24.380 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-03493-02000-SUJ Bored Balls - 34.925x20x25 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 38.100 mm (Equiv. 1.5 in.)	Bore (B) 22.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.866 in.)	Width (W) 28.000 mm (Equiv. 1.102 in.)	Flat Diameter (d1) 25.840 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-03810-02200-SUJ Bored Balls - 38.1x22x28 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 38.100 mm (Equiv. 1.5 in.)	Bore (B) 22.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.866 in.)	Width (W) 28.000 mm (Equiv. 1.102 in.)	Flat Diameter (d1) 25.840 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-03810-02200-SUJ Bored Balls - 38.1x22x28 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 42.863 mm (Equiv. 1.688 in.)	Bore (B) 25.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.984 in.)	Width (W) 31.000 mm (Equiv. 1.22 in.)	Flat Diameter (d1) 29.600 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-04286-02500-SUJ Bored Balls - 42.863x25x31 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 42.863 mm (Equiv. 1.688 in.)	Bore (B) 25.000 mm _{+ 0.021 / - 0.0} (Equiv. 0.984 in.)	Width (W) 31.000 mm (Equiv. 1.22 in.)	Flat Diameter (d1) 29.600 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-04286-02500-SUJ Bored Balls - 42.863x25x31 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 50.800 mm (Equiv. 2 in.)	Bore (B) 30.000 mm _{+ 0.021 / - 0.0} (Equiv. 1.181 in.)	Width (W) 37.000 mm (Equiv. 1.457 in.)	Flat Diameter (d1) 34.810 mm	Chamfer (C) 0.8X45 mm
Material: Chrome Steel
Part Number: BLB-05080-03000-SUJ Bored Balls - 50.8x30x37 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 50.800 mm (Equiv. 2 in.)	Bore (B) 30.000 mm _{+ 0.021 / - 0.0} (Equiv. 1.181 in.)	Width (W) 37.000 mm (Equiv. 1.457 in.)	Flat Diameter (d1) 34.810 mm
Material: Chrome Steel Chamfer (C): 0.8X45 mm
Part Number: BLB-05080-03000-SUJ Bored Balls - 50.8x30x37 mm - Chrome Steel Ball Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
