Ball Transfer Units - Screw Stem - Stainless - Precision

Ball Transfer Units -> Screw Stem -> Stainless -> Precision

There is only 1 product in the sub-categories of Ball Transfer Units - Screw Stem - Stainless - Precision. Browse the Ball Transfer Units - Screw Stem - Stainless - Precision products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

A selection of Precision Stainless Screw Stem Ball Transfer Units. This is the main category in this series

  • Single ball bearing units for conveyor systems
  • Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
  • Max Load is applicable when used as a transfer, not as a castor

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Ball Transfer Units - Screw Stem - Stainless - Precision category on the Small Parts & Bearings online store.
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Max Load
20
kg
Height from Base (B)
9
mm

(Equiv. 0.354 in.)
Body Diameter (D)
13
mm

(Equiv. 0.512 in.)
Overall Height (L)
24.0
mm
Ball Diameter
4.8
mm

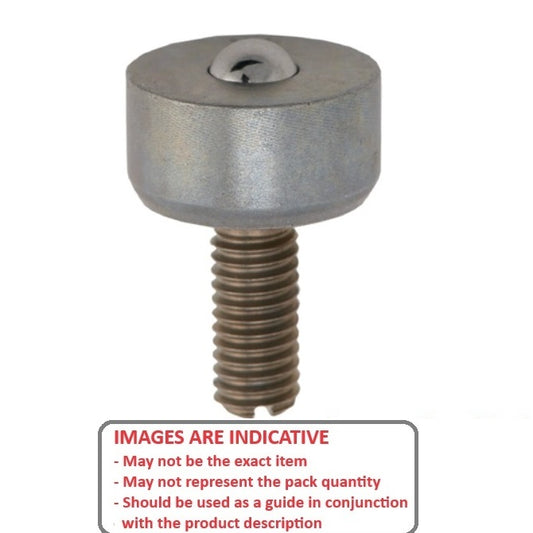

Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Body Height (Bh): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Part Number: BTU0020-009-TS-SS

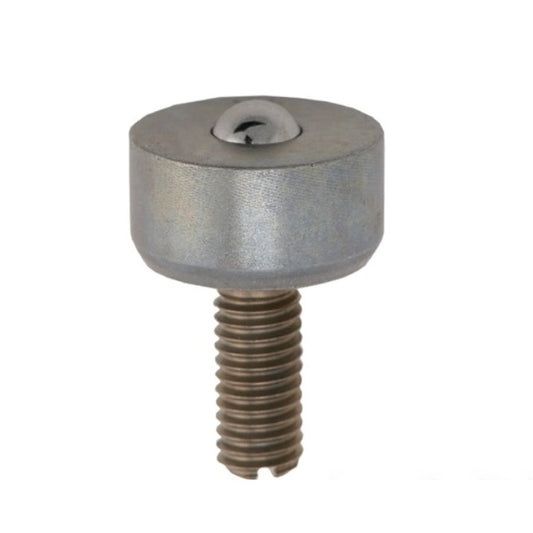

Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Indicative
Max Load
20
kg
Height from Base (B)
9
mm

(Equiv. 0.354 in.)
Body Diameter (D)
13
mm

(Equiv. 0.512 in.)
Overall Height (L)
24.0
mm
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Ball Diameter: 4.8 mm    Body Height (Bh): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Part Number: BTU0020-009-TS-SS
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
