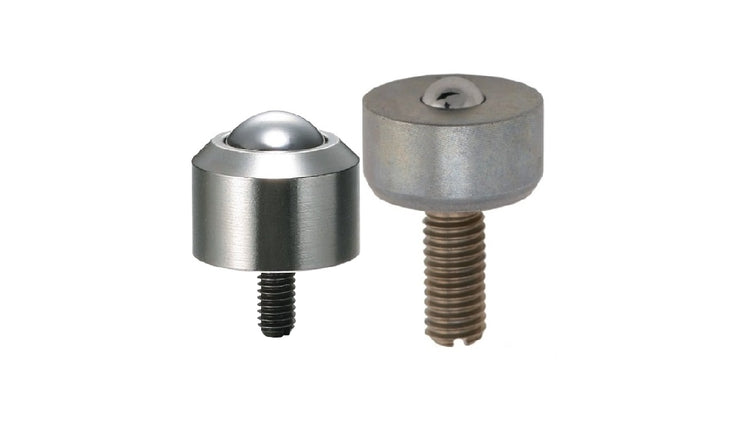

Collection: Ball Transfer Units - Screw Stem
Ball Transfer Units -> Screw StemThere are 8 products in the sub-categories of Ball Transfer Units - Screw Stem. Browse the Ball Transfer Units - Screw Stem products table. To narrow down the selection, please choose a sub-category from the links below.
Ball Transfer Units - Screw Stem - Brass and Aluminium
A selection of Brass and Aluminium Screw Stem Ball Transfer Units. This...
Ball Transfer Units - Screw Stem - Stainless
This category includes various types of screw stem ball transfer units. Single...
Ball Transfer Units - Screw Stem - Steel
This category includes various types of screw stem ball transfer units. Single...
Category Details
This category includes various types of screw stem ball transfer units.
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Ball Transfer Units - Screw Stem category on the Small Parts & Bearings online store.
| Max Load | Height from Base (B) | Body Diameter (D) | Overall Height (L) | Ball Diameter |

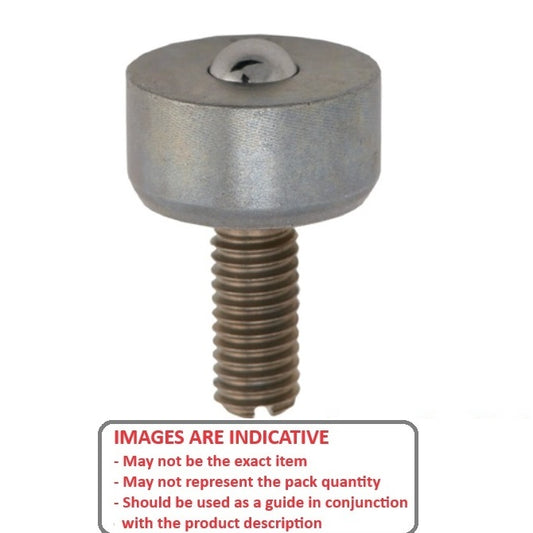

Indicative Image |
|---|---|---|---|---|---|
|
Max Load
10
kg |
Height from Base (B)
6
mm (Equiv. 0.236 in.) |
Body Diameter (D)
8
mm (Equiv. 0.315 in.) |
Overall Height (L)
8.5
mm |
Ball Diameter
4.8
mm |
|
|
Material: Stainless Steel AISI 440C and Aluminium
Body Height (H): 6.0 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0010-006-TS-BA
Screw Stem Ball Transfer Units - 10 kg - 6x8 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$19.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
| Max Load | Height from Base (B) | Body Diameter (D) | Overall Height (L) |

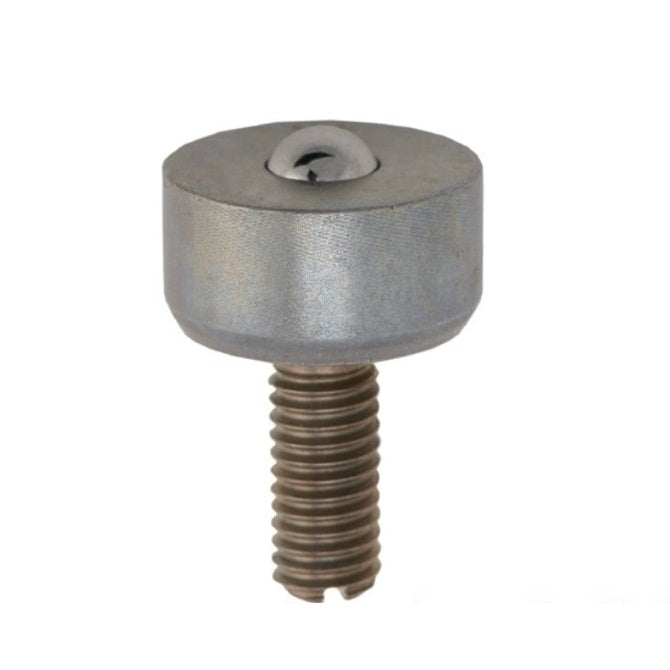

Indicative Image |
|
|
Max Load
10
kg |
Height from Base (B)
6
mm (Equiv. 0.236 in.) |
Body Diameter (D)
8
mm (Equiv. 0.315 in.) |
Overall Height (L)
8.5
mm |
|
|
|
Material: Stainless Steel AISI 440C and Aluminium
Ball Diameter: 4.8 mm
Body Height (H): 6.0 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0010-006-TS-BA
Screw Stem Ball Transfer Units - 10 kg - 6x8 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$19.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
18
kg |
Height from Base (B)
10.5
mm (Equiv. 0.413 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
16.5
mm |
Ball Diameter
6.4
mm |
|
|
Material: Stainless Steel AISI 440C and Aluminium
Body Height (H): 10.5 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0018-011-TS-BA (100 Pcs)
Screw Stem Ball Transfer Units - 18 kg - 10.5x13 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 27, 2025 Regular price
$2,731.77 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
18
kg |
Height from Base (B)
10.5
mm (Equiv. 0.413 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
16.5
mm |
|
|
|
Material: Stainless Steel AISI 440C and Aluminium
Ball Diameter: 6.4 mm
Body Height (H): 10.5 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0018-011-TS-BA (100 Pcs)
Screw Stem Ball Transfer Units - 18 kg - 10.5x13 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 27, 2025 Regular price
$2,731.77 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
20
kg |
Height from Base (B)
9
mm (Equiv. 0.354 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
24.0
mm |
Ball Diameter
4.8
mm |
|
|
Material: Stainless Steel AISI 440C
Body Height (H): 9.0 mm
Category: Ball Transfer Units - Screw Stem - Stainless |
|||||
|
Part Number: BTU0020-009-TS-SS
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
20
kg |
Height from Base (B)
9
mm (Equiv. 0.354 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
24.0
mm |
|
|
|
Material: Stainless Steel AISI 440C
Ball Diameter: 4.8 mm
Body Height (H): 9.0 mm
Category: Ball Transfer Units - Screw Stem - Stainless |
|||||
|
Part Number: BTU0020-009-TS-SS
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
20
kg |
Height from Base (B)
9
mm (Equiv. 0.354 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
24.0
mm |
Ball Diameter
4.8
mm |
|
|
Material: Steel
Body Height (H): 9.0 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0020-009-TS-C
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$60.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
20
kg |
Height from Base (B)
9
mm (Equiv. 0.354 in.) |
Body Diameter (D)
13
mm (Equiv. 0.512 in.) |
Overall Height (L)
24.0
mm |
|
|
|
Material: Steel
Ball Diameter: 4.8 mm
Body Height (H): 9.0 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0020-009-TS-C
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$60.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
25
kg |
Height from Base (B)
12.5
mm (Equiv. 0.492 in.) |
Body Diameter (D)
15
mm (Equiv. 0.591 in.) |
Overall Height (L)
20.5
mm |
Ball Diameter
7.9
mm |
|
|
Material: Stainless Steel AISI 440C and Aluminium
Body Height (H): 12.5 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0025-013-TS-BA
Screw Stem Ball Transfer Units - 25 kg - 12.5x15 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium 43 Available Now | Item Discontinued - Up to 43 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$21.49 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
25
kg |
Height from Base (B)
12.5
mm (Equiv. 0.492 in.) |
Body Diameter (D)
15
mm (Equiv. 0.591 in.) |
Overall Height (L)
20.5
mm |
|
|
|
Material: Stainless Steel AISI 440C and Aluminium
Ball Diameter: 7.9 mm
Body Height (H): 12.5 mm
Category: Ball Transfer Units - Screw Stem - Brass and Aluminium |
|||||
|
Part Number: BTU0025-013-TS-BA
Screw Stem Ball Transfer Units - 25 kg - 12.5x15 mm Brass and Aluminium - Stainless Steel AISI 440C and Aluminium 43 Available Now | Item Discontinued - Up to 43 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$21.49 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
34
kg |
Height from Base (B)
16
mm (Equiv. 0.63 in.) |
Body Diameter (D)
20.6
mm (Equiv. 0.811 in.) |
Overall Height (L)
35.8
mm |
Ball Diameter
12.7
mm |
|
|
Material: Steel
Body Height (H): 16.0 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0034-016-TS-C
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$234.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
34
kg |
Height from Base (B)
16
mm (Equiv. 0.63 in.) |
Body Diameter (D)
20.6
mm (Equiv. 0.811 in.) |
Overall Height (L)
35.8
mm |
|
|
|
Material: Steel
Ball Diameter: 12.7 mm
Body Height (H): 16.0 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0034-016-TS-C
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$234.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
136
kg |
Height from Base (B)
42.7
mm (Equiv. 1.681 in.) |
Body Diameter (D)
44.45
mm (Equiv. 1.75 in.) |
Overall Height (L)
72.4
mm |
Ball Diameter
25.4
mm |
|
|
Material: Steel
Body Height (H): 42.7 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0136-043-TS-C
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$452.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
136
kg |
Height from Base (B)
42.7
mm (Equiv. 1.681 in.) |
Body Diameter (D)
44.45
mm (Equiv. 1.75 in.) |
Overall Height (L)
72.4
mm |
|
|
|
Material: Steel
Ball Diameter: 25.4 mm
Body Height (H): 42.7 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0136-043-TS-C
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$452.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
|
Max Load
318
kg |
Height from Base (B)
45.2
mm (Equiv. 1.78 in.) |
Body Diameter (D)
50.80
mm (Equiv. 2 in.) |
Overall Height (L)
77.0
mm |
Ball Diameter
25.4
mm |
|
|
Material: Steel
Body Height (H): 45.2 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0318-045-TS-C
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$524.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
Max Load
318
kg |
Height from Base (B)
45.2
mm (Equiv. 1.78 in.) |
Body Diameter (D)
50.80
mm (Equiv. 2 in.) |
Overall Height (L)
77.0
mm |
|
|
|
Material: Steel
Ball Diameter: 25.4 mm
Body Height (H): 45.2 mm
Category: Ball Transfer Units - Screw Stem - Steel |
|||||
|
Part Number: BTU0318-045-TS-C
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$524.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||||
|
|||||
