Ball Transfer Units - Flange Mount - Standard - Stainless - Deep

Ball Transfer Units -> Flange Mount -> Standard -> Stainless -> Deep

There are 4 products in the sub-categories of Ball Transfer Units - Flange Mount - Standard - Stainless - Deep. Browse the Ball Transfer Units - Flange Mount - Standard - Stainless - Deep products table.

Category Details

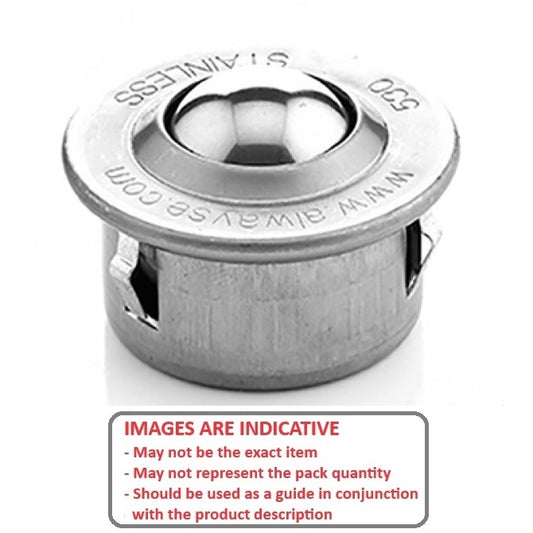

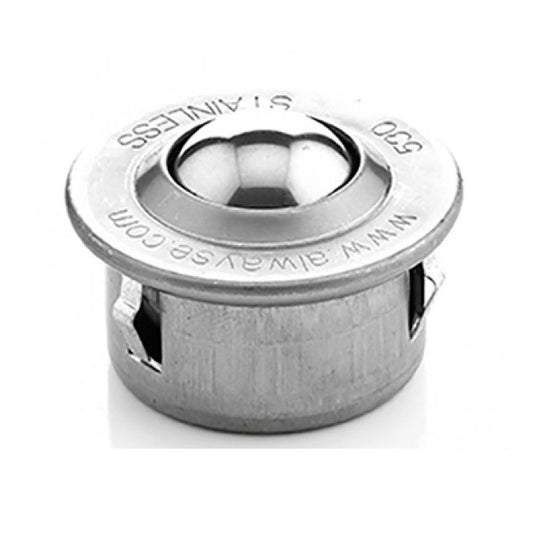

A selection of Deep Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series

  • Single ball bearing units for conveyor systems
  • Max Load is applicable when used as a transfer, not as a castor

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Ball Transfer Units - Flange Mount - Standard - Stainless - Deep category on the Small Parts & Bearings online store.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Max Load
55
kg
Ball Height from Flange (B)
6.7
mm
+/- 0.2
(Equiv. 0.264 in.)
Body Diameter (D)
24
mm
+/- 0.065
(Equiv. 0.945 in.)
Overall Height (L)
21.0
mm
Ball Diameter
15.0
mm
Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Part Number: BTU0060-010-F-SS
Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$69.41 AUD
$69.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
Max Load
55
kg
Ball Height from Flange (B)
6.7
mm
+/- 0.2
(Equiv. 0.264 in.)
Body Diameter (D)
24
mm
+/- 0.065
(Equiv. 0.945 in.)
Overall Height (L)
21.0
mm
Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Part Number: BTU0060-010-F-SS
Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$69.41 AUD
$69.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load
160
kg
Ball Height from Flange (B)
9.8
mm
+/- 0.2
(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.080
(Equiv. 1.417 in.)
Overall Height (L)
30.0
mm
Ball Diameter
15.0
mm
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Part Number: BTU0160-010-F-SS
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$74.86 AUD
$89.84 AUD $74.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load
160
kg
Ball Height from Flange (B)
9.8
mm
+/- 0.2
(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.080
(Equiv. 1.417 in.)
Overall Height (L)
30.0
mm
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Part Number: BTU0160-010-F-SS
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$74.86 AUD
$89.84 AUD $74.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load
295
kg
Ball Height from Flange (B)
13.8
mm
+/- 0.3
(Equiv. 0.543 in.)
Body Diameter (D)
45
mm
+/- 0.080
(Equiv. 1.772 in.)
Overall Height (L)
37.0
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Part Number: BTU0295-014-F-SS
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$155.41 AUD
$186.49 AUD $155.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load
295
kg
Ball Height from Flange (B)
13.8
mm
+/- 0.3
(Equiv. 0.543 in.)
Body Diameter (D)
45
mm
+/- 0.080
(Equiv. 1.772 in.)
Overall Height (L)
37.0
mm
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 22.0 mm    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Part Number: BTU0295-014-F-SS
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$155.41 AUD
$186.49 AUD $155.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(Equiv. 0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.)
Overall Height (L)
53.5
mm
Ball Diameter
30.0
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Part Number: BTU0610-019-F-SS
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$236.95 AUD
$284.35 AUD $236.95 AUD
Each
Quantity Required

4 Available Now. Backorder if more than 4.
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(Equiv. 0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.)
Overall Height (L)
53.5
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Part Number: BTU0610-019-F-SS
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$236.95 AUD
$284.35 AUD $236.95 AUD
Each
Quantity Required

4 Available Now. Backorder if more than 4.
