Ball Transfer Units - Flange Mount - Heavy Duty

Ball Transfer Units -> Flange Mount -> Heavy Duty

There are 4 products in the sub-categories of Ball Transfer Units - Flange Mount - Heavy Duty. Browse the Ball Transfer Units - Flange Mount - Heavy Duty products table. To narrow down the selection, please choose a sub-category from the links below.

Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel

Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel

A selection of Pressed Steel Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel

Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades

Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel

A selection of Stainless Steel Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel

Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated

A selection of Zinc Plated Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated

Category Details

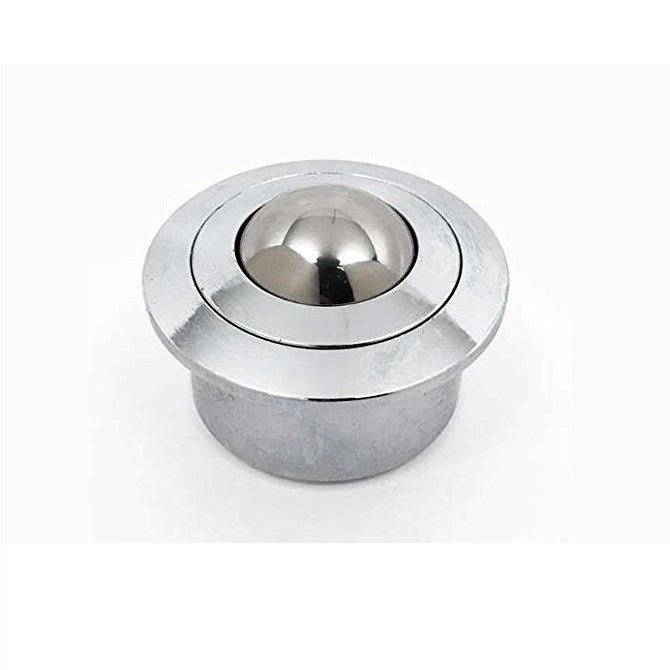

This category includes various types of flange mount ball transfer units.
  • Single ball bearing units for conveyor systems
  • Max Load is applicable when used as a transfer, not as a castor

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Ball Transfer Units - Flange Mount - Heavy Duty category on the Small Parts & Bearings online store.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm Heavy Duty - Stainless Steel AISI 420C and 303 Grades
Max Load
120
kg
Ball Height from Flange (B)
9.8
mm

(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Material: Stainless Steel AISI 420C and 303 Grades    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel
Part Number: BTU0120-010-F-SS-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$294.32 AUD
$294.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm Heavy Duty - Stainless Steel AISI 420C and 303 Grades
Max Load
120
kg
Ball Height from Flange (B)
9.8
mm

(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Material: Stainless Steel AISI 420C and 303 Grades    Ball Diameter: 22.0 mm    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel
Part Number: BTU0120-010-F-SS-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$294.32 AUD
$294.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
180
kg
Ball Height from Flange (B)
9.8
mm

(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0180-010-F-Z-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$164.50 AUD
$164.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
180
kg
Ball Height from Flange (B)
9.8
mm

(Equiv. 0.386 in.)
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Ball Diameter: 22.0 mm    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0180-010-F-Z-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$164.50 AUD
$164.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
350
kg
Ball Height from Flange (B)
13.8
mm

(Equiv. 0.543 in.)
Body Diameter (D)
45
mm
+/- 0.08
(Equiv. 1.772 in.)
Overall Height (L)
30.5
mm
Ball Diameter
30.0
mm
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Body Height: 23.0 mm    Flange Diameter: 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0350-014-F-Z-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$201.41 AUD
$241.69 AUD $201.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
350
kg
Ball Height from Flange (B)
13.8
mm

(Equiv. 0.543 in.)
Body Diameter (D)
45
mm
+/- 0.08
(Equiv. 1.772 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height: 23.0 mm    Flange Diameter: 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0350-014-F-Z-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$201.41 AUD
$241.69 AUD $201.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm Heavy Duty - Carbon Steel
Max Load
1000
kg
Ball Height from Flange (B)
25.4
mm

(Equiv. 1 in.)
Body Diameter (D)
60.45
mm

(Equiv. 2.38 in.)
Overall Height (L)
60.5
mm
Ball Diameter
38.1
mm
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Material: Carbon Steel    Body Height: 35.8 mm    Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel
Part Number: BTU1000-025-F-PC-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,325.50 AUD
$1,325.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm Heavy Duty - Carbon Steel
Max Load
1000
kg
Ball Height from Flange (B)
25.4
mm

(Equiv. 1 in.)
Body Diameter (D)
60.45
mm

(Equiv. 2.38 in.)
Overall Height (L)
60.5
mm
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Material: Carbon Steel    Ball Diameter: 38.1 mm    Body Height: 35.8 mm    Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel
Part Number: BTU1000-025-F-PC-HD (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,325.50 AUD
$1,325.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
