PLBT-080M-230-LO-016 - Datasheet
MBA
Category Information

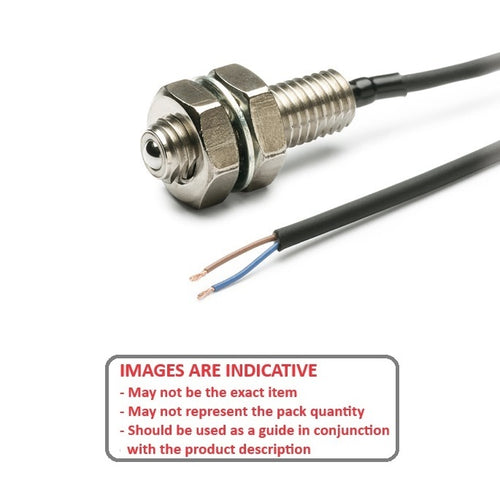

Plungers - Ball Threaded - With Limit SwitchWith Limit Switch Ball Threaded Plungers. Suitable for locking and releasing a device by using a built-in electrical switch. Stainless steel spring, nickel plated body, hardened steel ball.
- Supply Cable : Grey for normally open contacts, black for normally closed. Oil resistant. Max tensile load 20N.
- Working Temperature: -10 deg C to 80 deg C.
- Electrical Supply : 20 mA DC Max. Switching load recommended 5-10 mA.
- Voltage : 12-24V Supply Cable 3mm - 2 Phase, 2 metres long.
- Safety Standard : IP40 Average Switch Life Span : 3 milliion switchings
Product Data

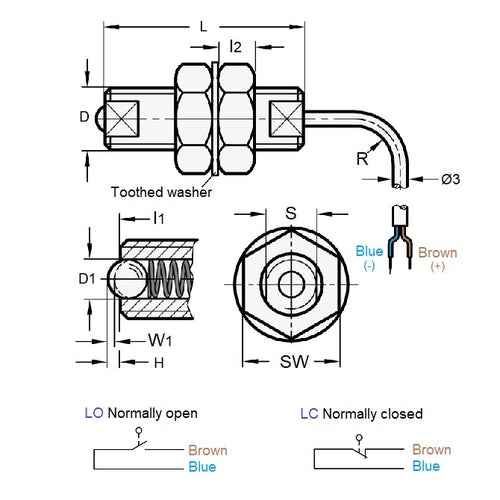

- Thread Size (D) : M8 (8x1.25mm)
- Body Length (L)
30.0
mm
(Equiv. 1.181 in.) - Initial Pressure (F1) 8.0 N
- Final Pressure (F2) 16.0 N
- Ball Diameter (D1) 4.0 mm
- Ball Height (H) 1.0 mm
- Contact Normally Open
- Contact Distance (l2) 0.5
- Material Steel Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- GN.33832
- GN.33812
- PLBT080230LO016
