PLBT-060M-200-LO-013 - Datasheet
MBA
Category Information

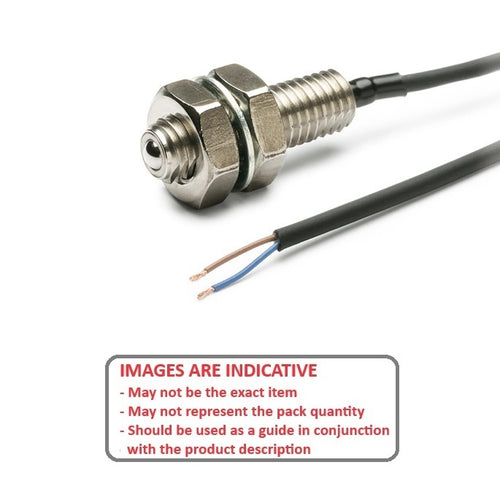

Plungers - Ball Threaded - With Limit SwitchWith Limit Switch Ball Threaded Plungers. Suitable for locking and releasing a device by using a built-in electrical switch. Stainless steel spring, nickel plated body, hardened steel ball.
- Supply Cable : Grey for normally open contacts, black for normally closed. Oil resistant. Max tensile load 20N.
- Working Temperature: -10 deg C to 80 deg C.
- Electrical Supply : 20 mA DC Max. Switching load recommended 5-10 mA.
- Voltage : 12-24V Supply Cable 3mm - 2 Phase, 2 metres long.
- Safety Standard : IP40 Average Switch Life Span : 3 milliion switchings
Product Data

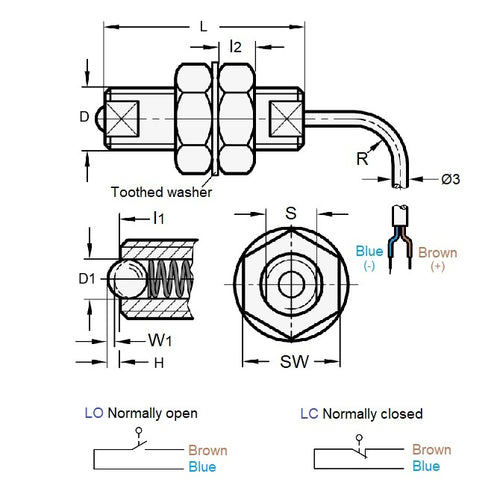

- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
27.0
mm
(Equiv. 1.063 in.) - Initial Pressure (F1) 6.0 N
- Final Pressure (F2) 13.0 N
- Ball Diameter (D1) 3.0 mm
- Ball Height (H) 0.8 mm
- Contact Normally Open
- Contact Distance (l2) 0.3
- Material Steel Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- GN.33831
- GN.33811
- PLBT060200LO013
