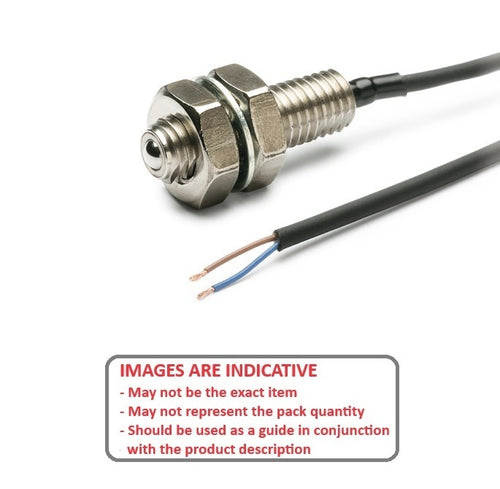

With Limit Switch Ball Threaded Plungers. Suitable for locking and releasing a device by using a built-in electrical switch. Stainless steel spring, nickel plated body, hardened steel ball.

• Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
• When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
• Supply Cable : Grey for normally open contacts, black for normally closed. Oil resistant. Max tensile load 20N.
• Working Temperature: -10 deg C to 80 deg C.
• Electrical Supply : 20 mA DC Max. Switching load recommended 5-10 mA.
• Voltage : 12-24V Supply Cable 3mm - 2 Phase, 2 metres long.
• Safety Standard : IP40 Average Switch Life Span : 3 milliion switchings
