PLBT-079C-147-S3N-040 - Datasheet
MBA
Category Information

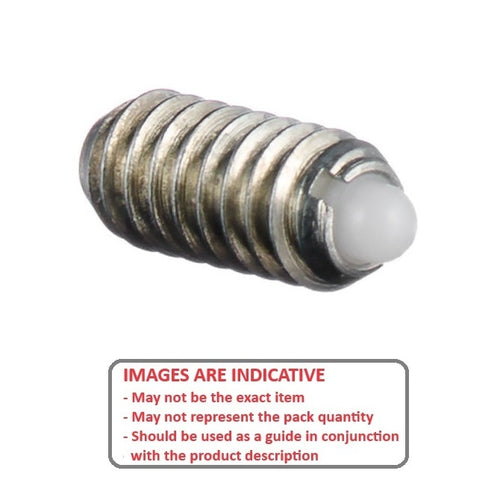

Plungers - Ball Threaded - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 5/16-18 UNC (7.94mm)
- Body Length (L)
14.7
mm
(Equiv. 0.579 in.) - Initial Pressure (F1) 17.8 N
- Final Pressure (F2) 40.0 N
- Ball Diameter (D1) 4.0 mm
- Ball Height (H) 1.0 mm
- Drive Slotted
- Material Stainless Steel 303 Grade with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 34085A47
- Y7
- Y-7
