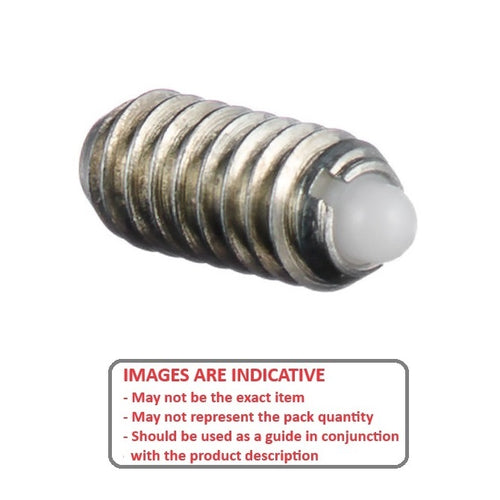

PLBT-095C-159-S3N-022 - Datasheet
MBA
Category Information
Plungers - Ball Threaded - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 3/8-16 UNC (9.53mm)
- Body Length (L)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 11.1 N
- Final Pressure (F2) 22.2 N
- Ball Diameter (D1) 4.8 mm
- Ball Height (H) 1.2 mm
- Drive Slotted
- Material Stainless Steel 303 Grade with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 34085A49
- Y-17
- Y17
