PLBT-064C-135-S3N-053 - Datasheet
MBA
Category Information

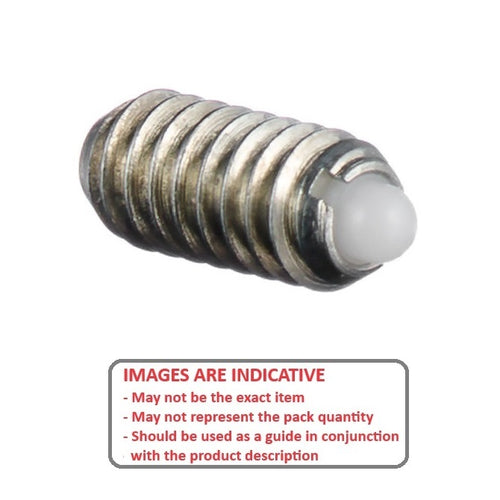

Plungers - Ball Threaded - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 1/4-20 UNC (6.35mm)
- Body Length (L)
13.5
mm
(Equiv. 0.531 in.) - Initial Pressure (F1) 17.8 N
- Final Pressure (F2) 53.4 N
- Ball Diameter (D1) 3.2 mm
- Ball Height (H) 0.9 mm
- Drive Slotted
- Material Stainless Steel 303 Grade with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 34085A45
- Y-14
- Y14
