PLBT-080M-250-AS-050 - Datasheet
MBA
Category Information

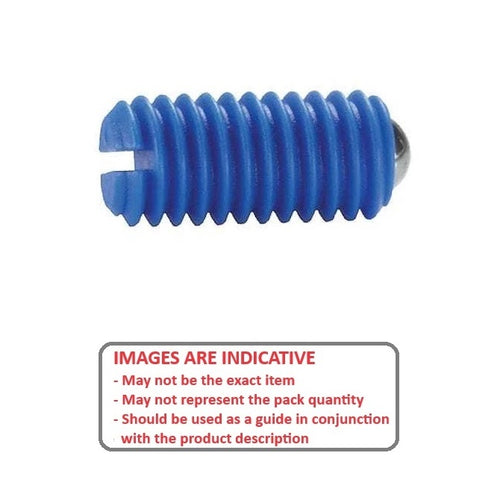

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M8 (8x1.25mm)
- Body Length (L)
25.00
mm
(Equiv. 0.984 in.) - Initial Pressure (F1) 6.00 N
- Final Pressure (F2) 50.00 N
- Ball Diameter (D1) 5.00 mm
- Ball Height (H) 1.80 mm
- Drive 4.0mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSZL8-10P
- CNBSZL810P
