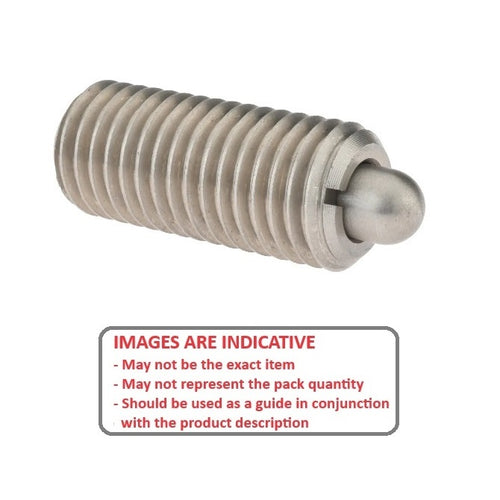

PLBT-060M-140-CS-006 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
  • When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.

Product Data

  • Thread Size (D) : M6 (6x1mm)
  • Body Length (L) 14.0 mm
    (Equiv. 0.551 in.)
  • Initial Pressure (F1) 2.0 N
  • Final Pressure (F2) 6.0 N
  • Ball Diameter (D1) 3.5 mm
  • Ball Height (H) 1.0 mm
  • Drive Slotted
  • Material Steel Body with Stainless Ball
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 3391A33
  • BM130
  • BM-130
  • PLBT060140CS006
