PLST-060-130-HS-002 - Datasheet

MBA

Category Information

Plungers - Spring - Acetal Handle - Non Locking - Stainless

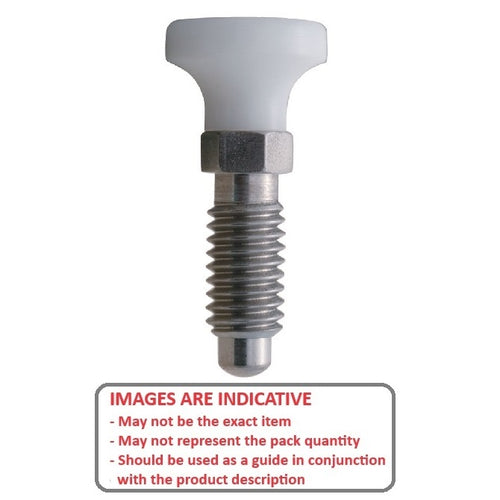

Stainless Non Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

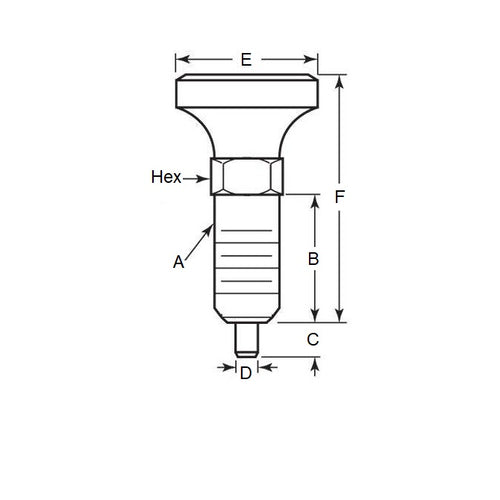

Product Data

  • Thread Size (A) : M6 (6x1mm)
  • Thread Length (B) 13.0 mm
    (Equiv. 0.512 in.)
  • Initial Pressure (F1) 0.5 N
  • Final Pressure (F2) 1.5 N
  • Tip Diameter (D) 3.0 mm
  • Tip Length (C) 3.0 mm
  • Head Diameter (E) 12.0 mm
  • Hex 6.0
  • Material Stainless Steel with Acetal
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PRT23
  • PRT-23
