PLBT-060M-200-AS-015 - Datasheet
MBA
Category Information

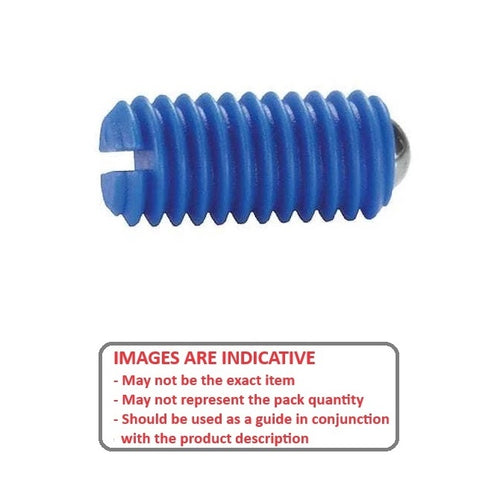

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
20.00
mm
(Equiv. 0.787 in.) - Initial Pressure (F1) 5.00 N
- Final Pressure (F2) 15.00 N
- Ball Diameter (D1) 3.50 mm
- Ball Height (H) 1.20 mm
- Drive 3.0mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSML6-10P
- CNBSML610P
