PLBT-050M-080-S3-020 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Stainless Body - Stainless Ball

Stainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
  • When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.

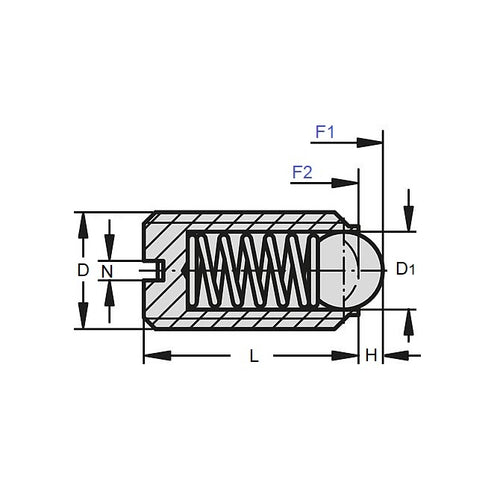

Product Data

  • Thread Size (D) : M5 (5x0.8mm)
  • Body Length (L) 8.00 mm
    (Equiv. 0.315 in.)
  • Initial Pressure (F1) 4.00 N
  • Final Pressure (F2) 20.00 N
  • Ball Diameter (D1) 3.00 mm
  • Ball Height (H) 1.00 mm
  • Drive 2.5mm Hex
  • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-BPK5-20P
  • CBPK520P
