PLBT-050M-120-AS-010 - Datasheet
MBA
Category Information

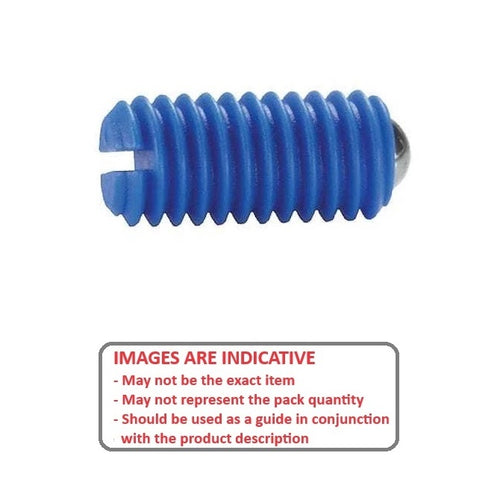

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M5 (5x0.8mm)
- Body Length (L)
12.00
mm
(Equiv. 0.472 in.) - Initial Pressure (F1) 3.00 N
- Final Pressure (F2) 10.00 N
- Ball Diameter (D1) 3.00 mm
- Ball Height (H) 1.00 mm
- Drive 2.5mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSM5-10P
- CNBSM510P
