PLBT-040M-090-C-009 - Datasheet
MBA
Category Information

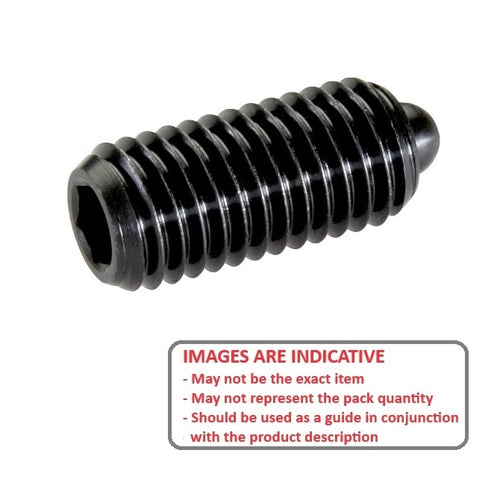

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M4 (4x0.7mm)
- Body Length (L)
9.0
mm
(Equiv. 0.354 in.) - Initial Pressure (F1) 3.9 N
- Final Pressure (F2) 9.8 N
- Ball Diameter (D1) 2.5 mm
- Ball Height (H) 0.8 mm
- Drive Socket 2.0mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- PLBT040090C009
