PLBT-040M-100-AS-005 - Datasheet
MBA
Category Information

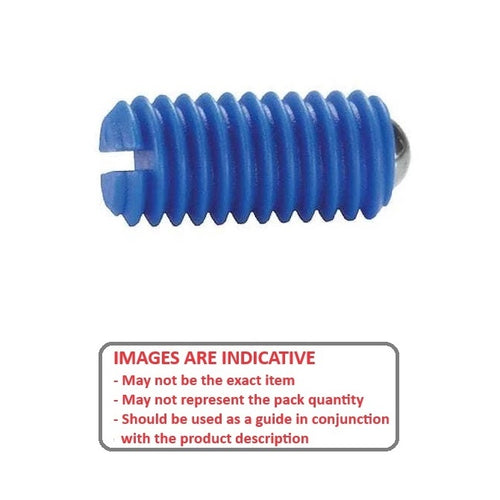

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M4 (4x0.7mm)
- Body Length (L)
10.00
mm
(Equiv. 0.394 in.) - Initial Pressure (F1) 2.00 N
- Final Pressure (F2) 5.00 N
- Ball Diameter (D1) 2.38 mm
- Ball Height (H) 0.80 mm
- Drive 2.0mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSM4-10P
- CNBSM410P
