PLBT-030M-070-C-003 - Datasheet
MBA
Category Information

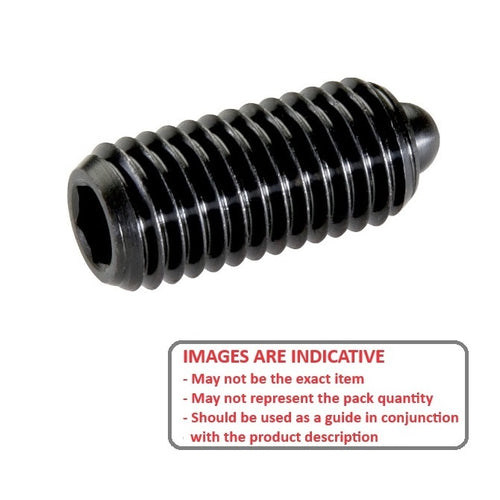

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M3 (3x0.5mm)
- Body Length (L)
7.0
mm
(Equiv. 0.276 in.) - Initial Pressure (F1) 1.5 N
- Final Pressure (F2) 2.9 N
- Ball Diameter (D1) 1.5 mm
- Ball Height (H) 0.5 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Elesa GN615-M3-K
- PLBT030070C003
- GN615M3K
- BPM3
