PLBT-160M-250-AS-120 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Acetal Body - Stainless Ball

Stainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M16 (16x2mm)
    • Body Length (L) 25.00 mm
      (Equiv. 0.984 in.)
    • Initial Pressure (F1) 15.00 N
    • Final Pressure (F2) 120.00 N
    • Ball Diameter (D1) 10.00 mm
    • Ball Height (H) 3.50 mm
    • Drive 8.0mm Hex
    • Material Acetal with Stainless Ball
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-NBSX16-10P
    • CNBSX1610P
    View full details

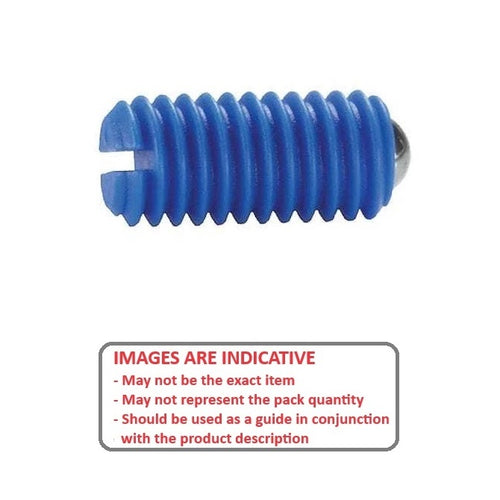

    PLBT-160M-250-AS-120DiagramPLBT-160M-250-AS-120Image
