PLBT-120M-220-CS-115 - Datasheet
MBA
Category Information

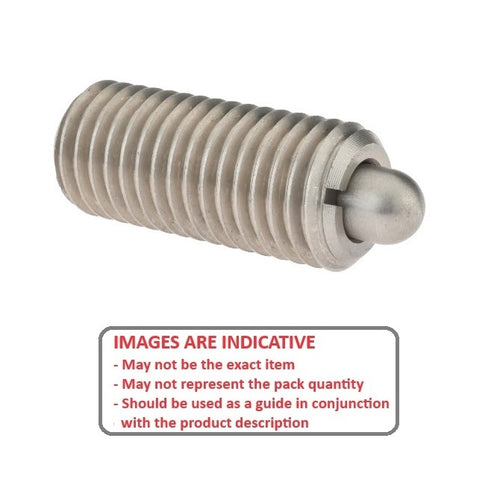

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M12 (12x1.75mm)
- Body Length (L)
22.0
mm
(Equiv. 0.866 in.) - Initial Pressure (F1) 75.0 N
- Final Pressure (F2) 115.0 N
- Ball Diameter (D1) 8.0 mm
- Ball Height (H) 2.5 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3391A44
- BM180
- BM-180
- PLBT120220CS115
