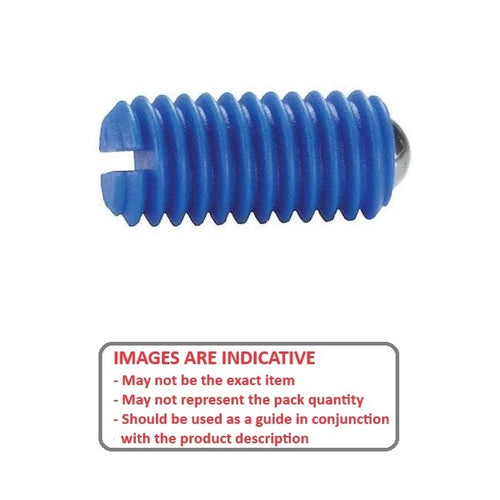

PLBT-120M-200-AS-030 - Datasheet
MBA
Category Information
Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M12 (12x1.75mm)
- Body Length (L)
20.00
mm
(Equiv. 0.787 in.) - Initial Pressure (F1) 10.00 N
- Final Pressure (F2) 30.00 N
- Ball Diameter (D1) 8.00 mm
- Ball Height (H) 2.80 mm
- Drive 6.0mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSM12-10P
- CNBSM1210P
