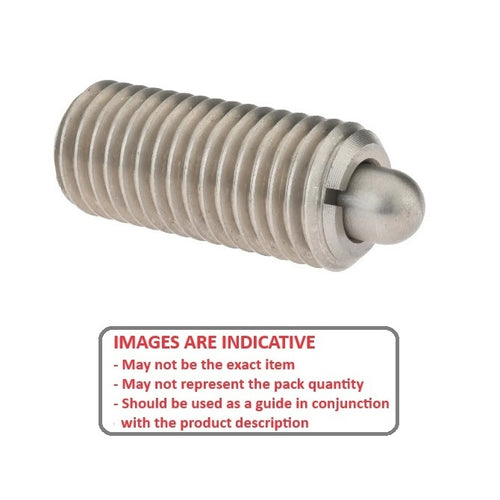

PLBT-100M-190-CS-035 - Datasheet
MBA
Category Information
Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M10 (10x1.5mm)
- Body Length (L)
19.0
mm
(Equiv. 0.748 in.) - Initial Pressure (F1) 20.0 N
- Final Pressure (F2) 35.0 N
- Ball Diameter (D1) 6.0 mm
- Ball Height (H) 2.0 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3391A38
- BM-155
- BM155
- PLBT100190CS035
