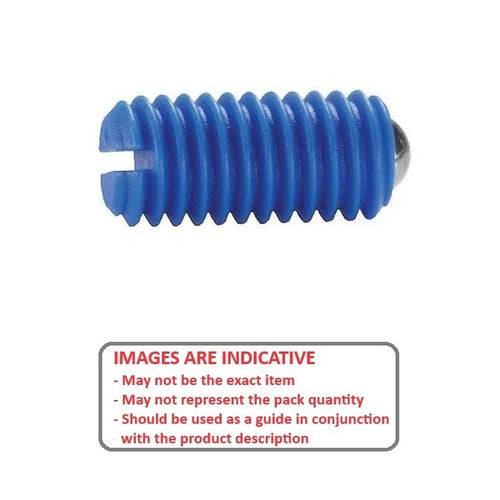

PLBT-100M-160-AS-025 - Datasheet
MBA
Category Information
Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M10 (10x1.5mm)
- Body Length (L)
16.00
mm
(Equiv. 0.63 in.) - Initial Pressure (F1) 9.00 N
- Final Pressure (F2) 25.00 N
- Ball Diameter (D1) 6.00 mm
- Ball Height (H) 2.10 mm
- Drive 5.0mm Hex
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NBSM10-10P
- CNBSM1010P
