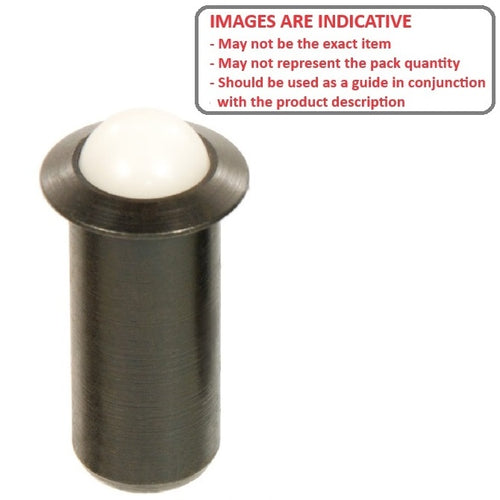

PLBP-095-200-SN-062 - Datasheet

MBA

Product Data

• Body Diameter (D) : 9.53 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.375 in.)
• Length (L) 20.0 mm
  (Equiv. 0.787 in.)
• Initial Pressure (F1) 22.2 N
• Final Pressure (F2) 62.3 N
• Ball Diameter (D1) 7.9 mm
• Ball Height (H) 2.8 mm
• Shoulder Diameter (S) 12.7 mm
• 12.7
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8483A34
• SPFB-158
• SPFB158
