PLBT-042C-113-C-006 - Datasheet
MBA
Category Information

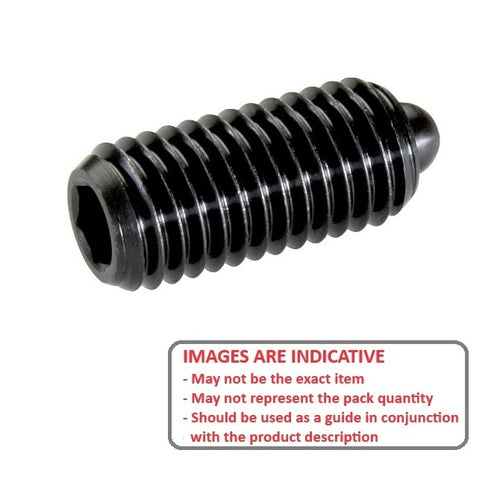

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 8-32 UNC (4.17mm)
- Body Length (L)
11.3
mm
(Equiv. 0.445 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 5.6 N
- Ball Diameter (D1) 2.4 mm
- Ball Height (H) 0.6 mm
- Drive Socket 1.6mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- W-101
- W101
