WST-25RS - Datasheet
MBA
Category Information

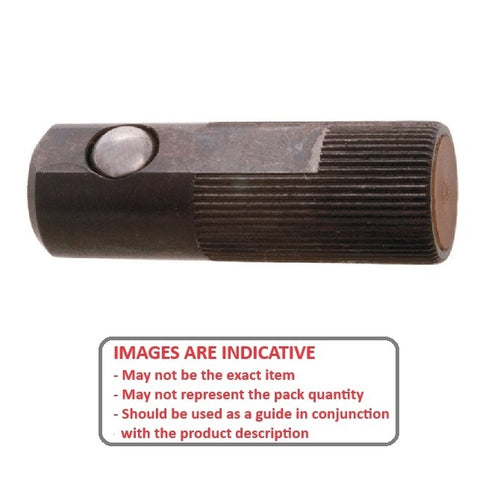

Pins - Side Thrust - Single Sided - Plastic BallPlastic Ball Single Sided Side Thrust Pins. For holding, clamping and positioning work pieces. Body is black oxide steel.
- Plastic ball and stainless spring with black oxide coated steel body
Product Data

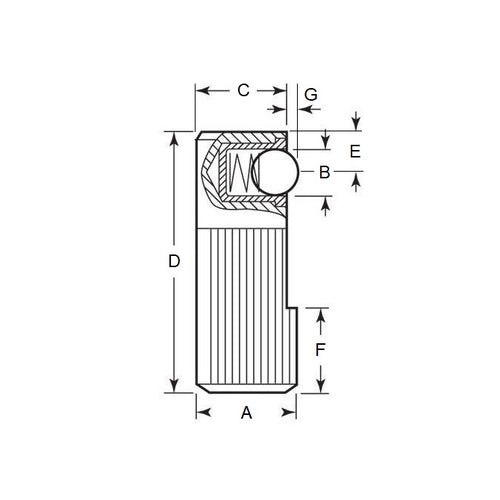

- Knurled Diameter (A)
:
7.874
mm
(Equiv. 0.31 in.) - Ball Diameter (B)
3.048
mm
(Equiv. 0.12 in.) - End Diameter (C)
6.604
mm
(Equiv. 0.26 in.) - D 24.892 mm
- E 3.556 mm
- F 6.096 mm
- G 1.016 mm
- Initial Load Rating 0.25 Kg
- Final Load Rating 0.66 Kg
- Material Plastic Ball
