W0064-ALN-SS-SET - Datasheet
MBA
Category Information

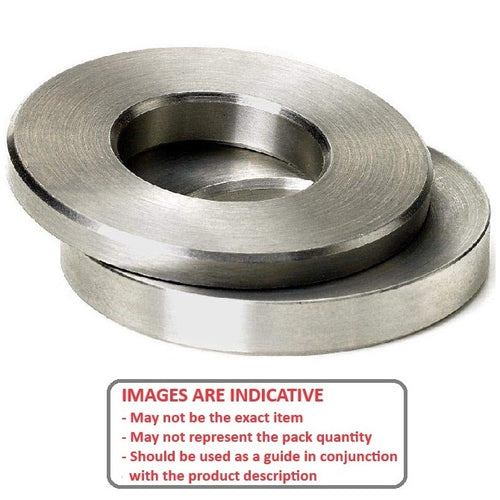

Washers - Self Aligning - Sets - Stainless SteelStainless Steel Sets Self Aligning Washers. Complete set, containing both aligning and seating washers.
- Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.

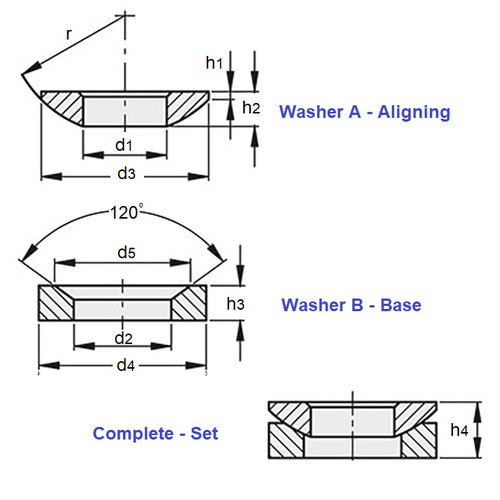

- Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.
- AISI 303 Stainless Steel
- Max Shaft Size Shown will allow 3 Deg of misalignment.
- DIN 6319-NI washers are used for clamping mechanical parts with non-parallel surfaces.
Product Data
- Suitable Shaft or Bolt Size
:
6.35
mm
(Equiv. 0.25 in.) - Bore Size (A)
7.137
mm
+/- 0.38
(Equiv. 0.281 in.) - OD (B)
15.88
mm
+ /- 0.38
(Equiv. 0.625 in.) - Overall Height (C) 4.750 mm +/- 0.38
- Actual ID (Ref) 6.35 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- SSPW1
- SSPW-1
