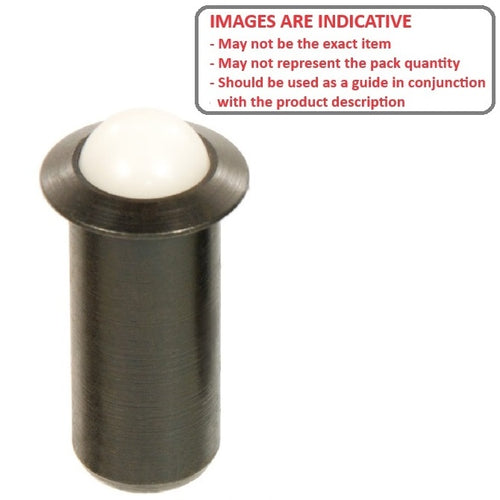

PLBP-064-122-SN-016 - Datasheet

MBA

Product Data

• Body Diameter (D) : 6.35 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.25 in.)
• Length (L) 12.2 mm
  (Equiv. 0.48 in.)
• Initial Pressure (F1) 6.7 N
• Final Pressure (F2) 15.6 N
• Ball Diameter (D1) 4.8 mm
• Ball Height (H) 1.8 mm
• Shoulder Diameter (S) 7.9 mm
• 7.9
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8483A29
• SPFB153
• SPFB-153
